PLC Programming with Step 7 via TCP/IP

3 PLC Programming with Step 7 via TCP/IP
In order to program a S7 PLC with standard Ethernet CP (e.g. CP 443-1) over TCP/IP, follow these
steps:

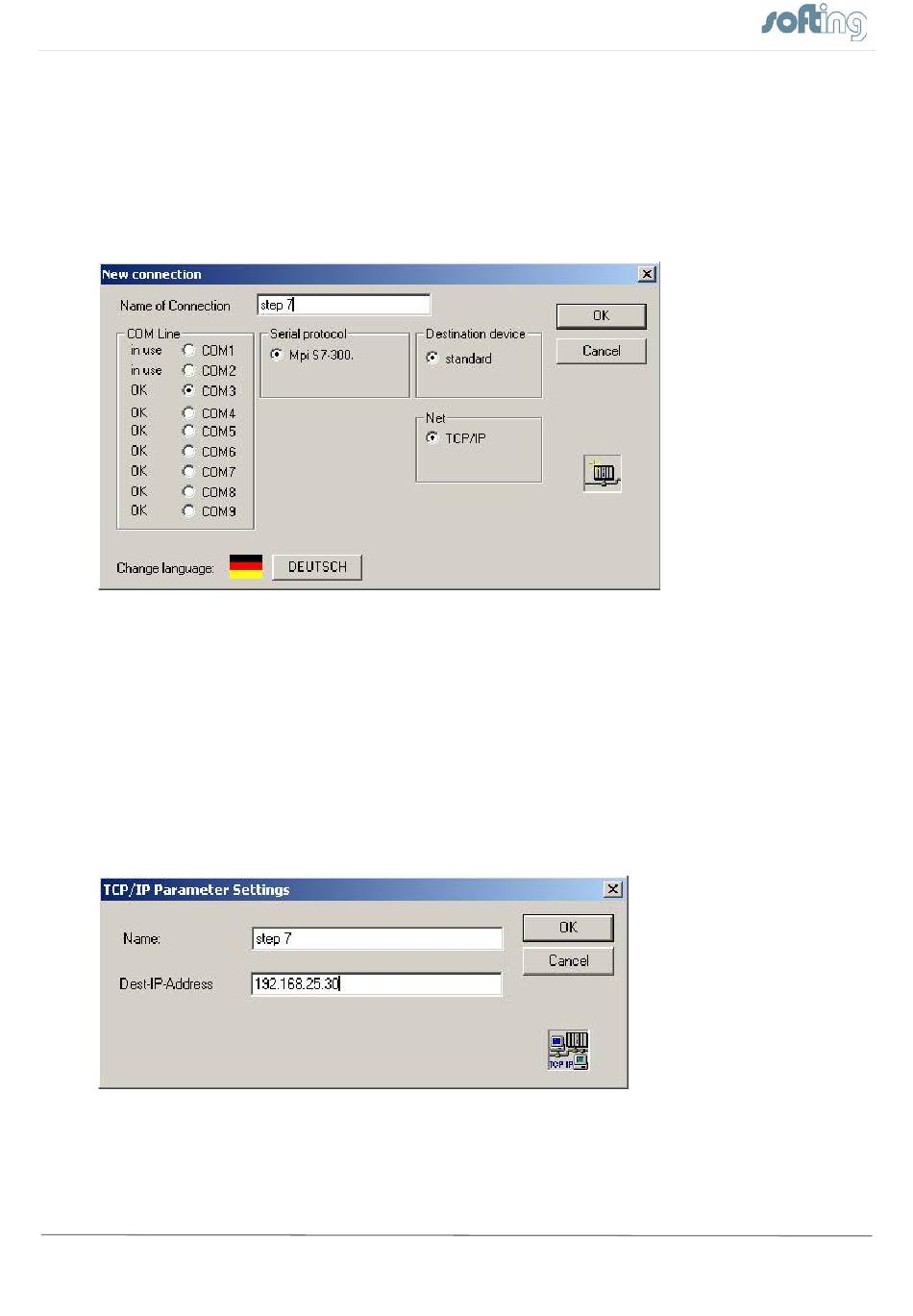

3.1 Connecting with Softing VCOM S7 Compact

Add a new connection:
•
Assign a name for the new connection.
•
COM Line: Select the desired virtual COM-port (here, e.g., COM3).
•
Default setting for the serial protocol is „Mpi S7-300/400"
•
Default settings for the network is „TCP/IP"
•
Default destination device is „standard"
•
Proceed with „OK"
In the following dialog will open:
•
Here define the destination IP address of the echolink S7-compact
(here, e.g., 192.168.25.30).
•
Proceed with „OK"
