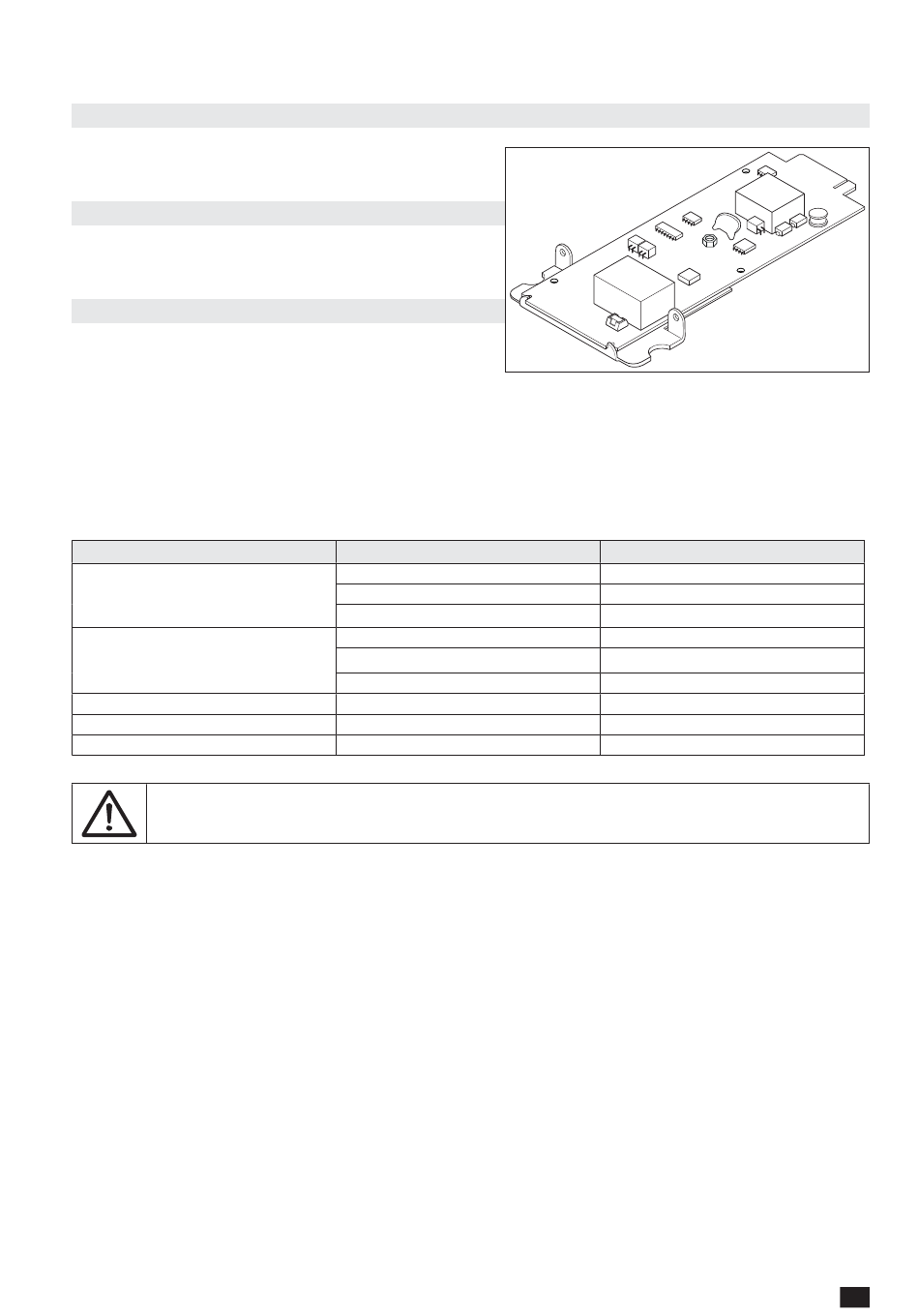

4. MODBUS TCP – IDA interface (MODBUS TCP card)

4.1 Installation of the MODBUS TCP Card

The interface must first be installed in the appropriate slot and
fastened to the com slots using 2 screws.

4.2 Serial connection default setting

Serial connection parameters are set by an auto baud rate
procedure with a timeout of 40 seconds.

4.3 Features and led description

Standard supported:
IEEE 802.3
Mode supported:
10/100Base-T
10/100Mbps (auto sensing)
Half-duplex & Full-duplex mode (auto sensing)
Connector type:
RJ-45
LED type
RJ45
RJ45
Interface LED TX ON
Interface LED RX ON
5V ISO
NOTE!
Refers to Appendix 1.
MODBUS RTU / MODBUS TCP for Modulys GP 2.0 - ITYS PRO UPS - Masterys GP4 UPS - Masterys BC+ UPS range - Ref.: IOMXXXOPXX00-EN 00
Color
Yellow
Yellow flashing
Off
Green
Green flashing
Off
Green
Green
Meaning
Line detected
Searching line
No Ethernet line
ON
MODBUS TCP Traffic
No traffic
When transmitting data
When receiving data
EN 9
