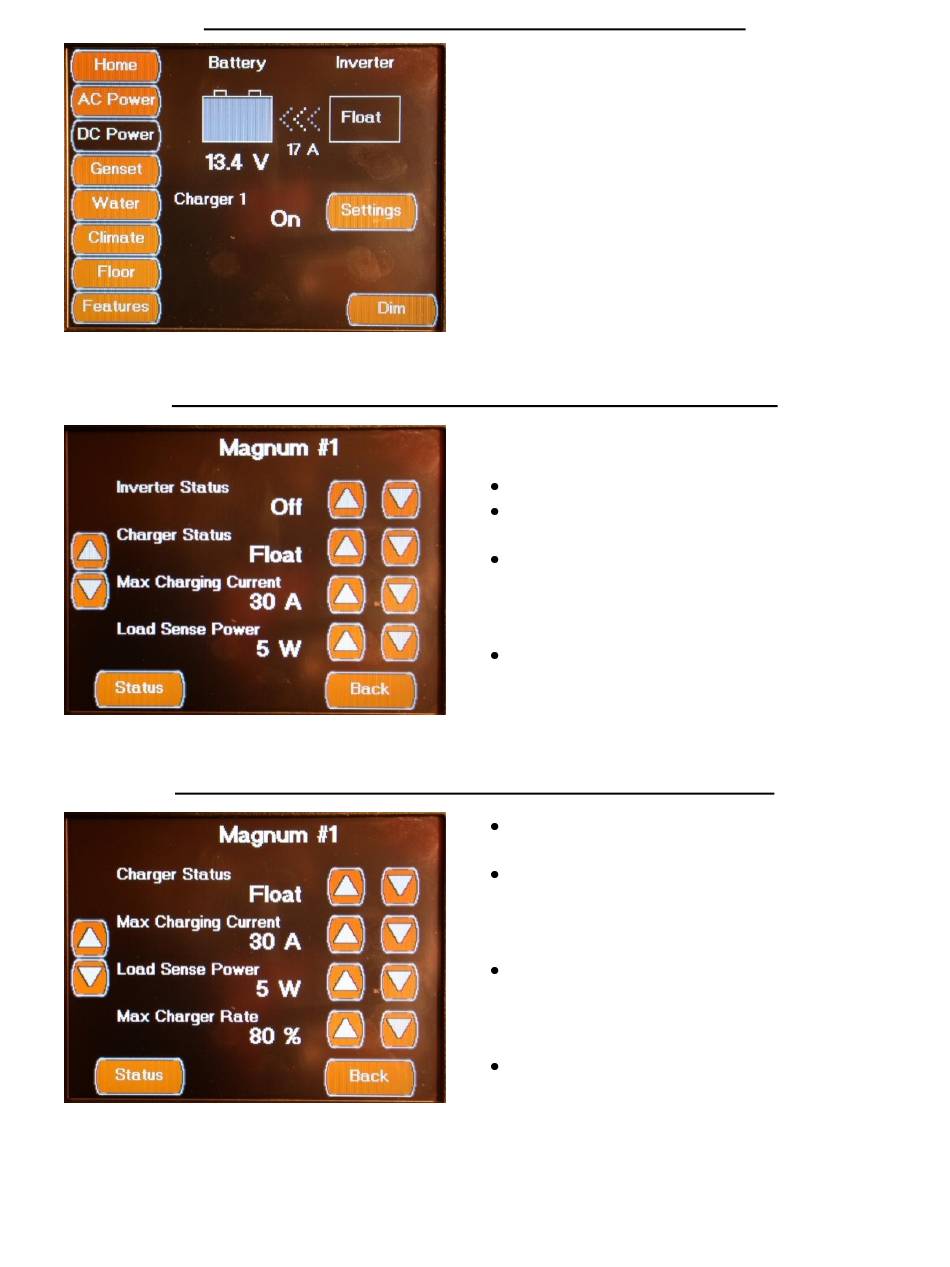

DC POWER SCREENS MAIN DC POWER SCREEN

DC POWER SCREENS MAGNUM SETTINGS SCREEN 1

DC POWER SCREENS MAGNUM SETTINGS SCREEN 2

The second Magnum Setting screen configures
the following settings:
The Main DC Power Screen displays the Inverter
/ Charger status and allows access to the
Magnum Setting Screens
The Battery Icon has a vertical bar graph that
indicates the battery charge level. The battery
voltage value is displayed directly below the
icon. The arrows between the Battery and
Inverter Icons indicate the direction of the DC
current flow. The DC current (amperage) value
is displayed below the arrows. The Inverter/
Charger status is displayed inside the Inverter
Icon.
The first Magnum Setting screen configures the
following settings:
Inverter Status
Charger Status
Standby
This is the maximum amount of current the
charger can output.
This is the Power Level (Search Watts Setting)
required to activate (wake up) the inverter.
Charger Status
Standby
This is the maximum amount of current the
charger can output.
This is the Power Level (Search Watts Setting)
required to active (wake up) the inverter.
Max Charger Rate
This is the maximum % of AC current
(amperage) used to recharge the batteries.
On / Off / Standby
On / Off /
Max Charging Current
( Amperage)
Load Sense Power
( Wattage)
On / Off /
Max Charging Current
( Amperage)
Load Sense Power
( Wattage)
(Percentage)
Page 6
