FEATURES FLOOR HEAT W/SCHEDULING CONFIGURATION SCREENS

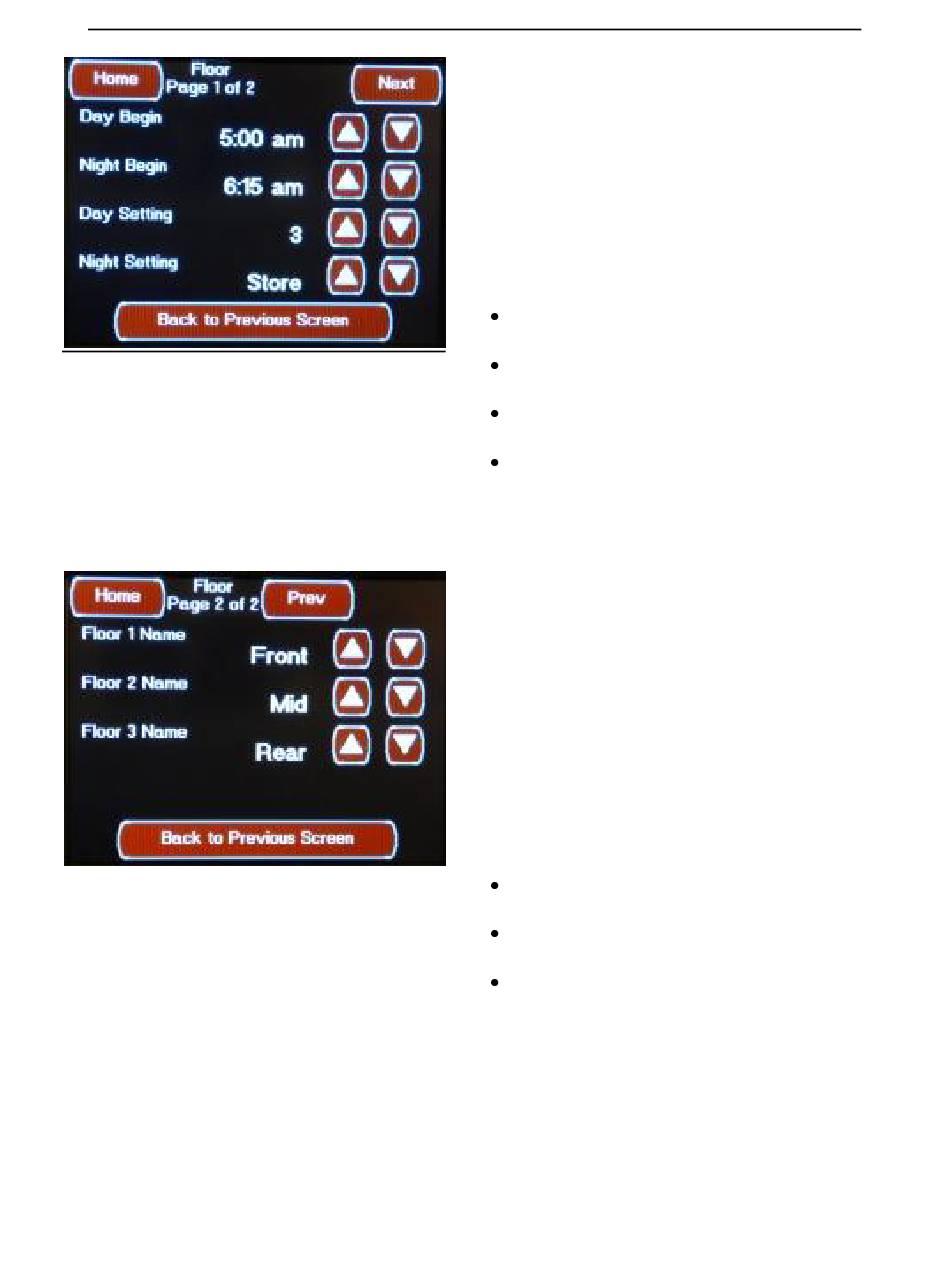

FLOOR HEAT with 2 Time Schedule Screen 1 of 2
The Floor Heat Configuration Screen is accessed
by pressing the Floor Heat Configuration Button
located on the Features Configuration Screen.
This screen is only applies to systems with the
Floor Heat option.
FLOOR HEAT with 2 Time Schedule Screen 2 of 2
The Floor Heat Configuration Screen is accessed
by pressing the Floor Heat Configuration Button
located on the Features Configuration Screen.
These selections set the 2 time zones floor heat
settings displayed on the "Floor" Screen.
Depending on the HMS360 Touch Screen
Display Software Version, this screen or a
similar screen, may be located under the
Climate Configuration Screens, not under the
Floor Heat Configuration Screens
This screen allows you to change the following
settings:
Day Begin
Select using the Up / Down Arrows
Night Begin
Select using the Up / Down Arrows
Day Setting
Select using the Up / Down Arrows
Night Setting
Select using the Up / Down Arrow
This screen is only applies to systems with the
Floor Heat option.
These selections set the floor heat zone names
displayed on the "Floor" Screen.
Depending on the HMS360 Touch Screen
Display Software Version, this screen or a
similar screen, may be located under the
Climate Configuration Screens, not under the
Floor Heat Configuration Screens
This screen allows you to change the following
settings:
Floor 1 Name
Select using the Up / Down Arrows
Floor 2 Name
Select using the Up / Down Arrows
Floor 3 Name
Select using the Up / Down Arrows
Time Setting
Time Setting
Floor Heat Setting
Floor Heat Setting
Set to Front
Set to Mid
Set to Rear
Page 27
