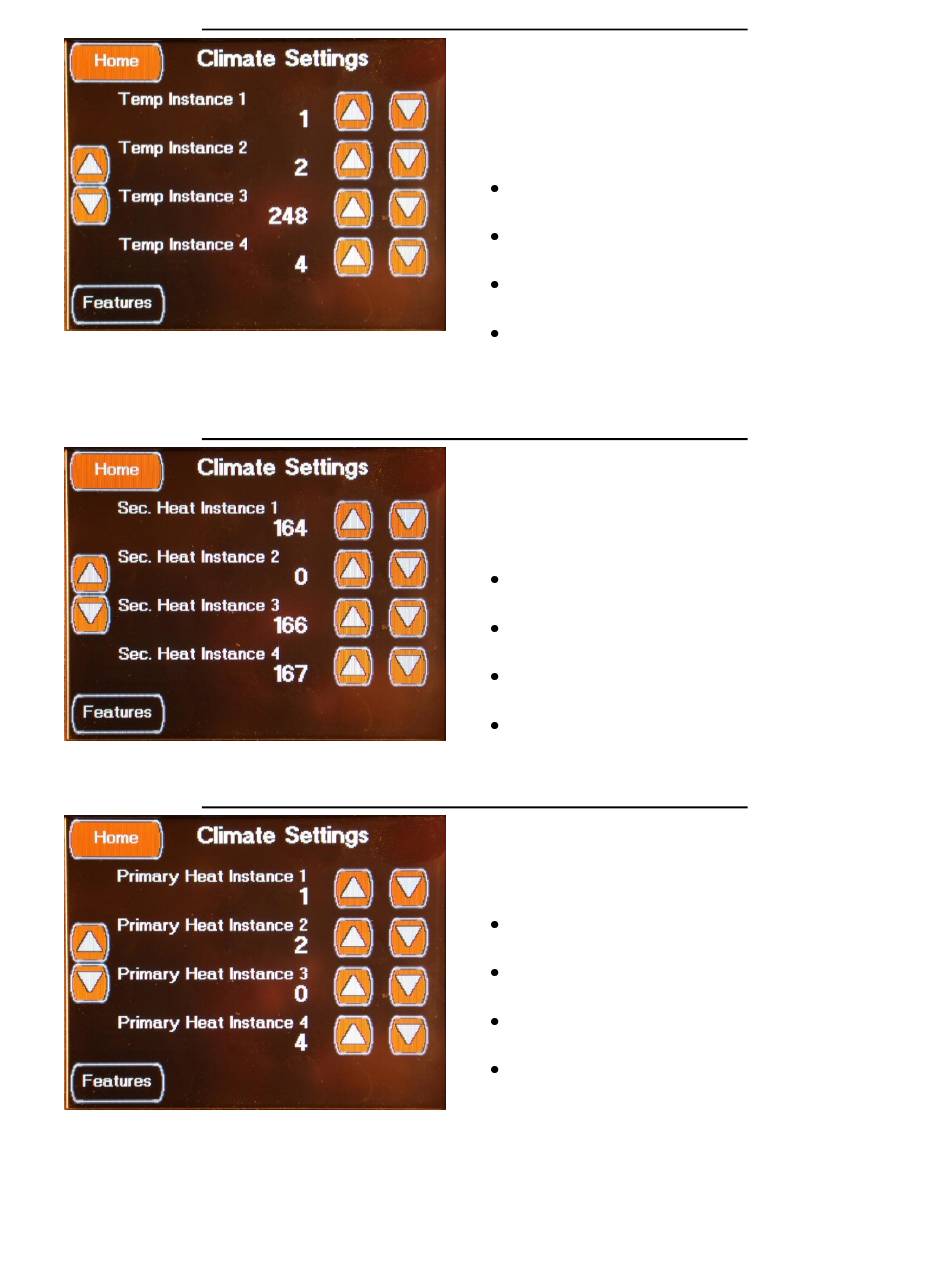

FEATURES CLIMATE CONFIGURATION SCREEN 7

The seventh Climate Setting screen is accessed
by

FEATURES CLIMATE CONFIGURATION SCREEN 8

The eighth Climate Setting screen is accessed

FEATURES CLIMATE CONFIGURATION SCREEN 9

pressing the Left Down Arrow on the fifth
Climate Setting screen or by the Left Up Arrow
on the eighth Climate Setting screen.
This sets the Temperature Sensors to the HVAC
Zones.
Temp Instance 1
Select using the Up / Down Arrows
Temp Instance 2
Select using the Up / Down Arrows
Temp Instance 3
Select using the Up / Down Arrows
Temp Instance 4
Select using the Up / Down Arrows
by pressing the Left Down Arrow on the sixth
Climate Setting screen or by the Left Up Arrow
on the ninth Climate Setting screen.
This screen specifies the Oasis Zones to control
from the HVAC Zone settings.
Sec. Heat Instance 1
Select using the Up / Down Arrows
Sec. Heat Instance 2
Select using the Up / Down Arrows
Sec. Heat Instance 3
Select using the Up / Down Arrows
Sec. Heat Instance 4
Select using the Up / Down Arrows
The ninth Climate Setting screen is accessed by
pressing the Left Down Arrow on the eighth
Climate Setting screen. This screen is used to
set the Primary Heat Zone control.
Primary Heat Instance 1 Set to 1
Select using the Up / Down Arrows
Primary Heat Instance 2 Set to 0
Select using the Up / Down Arrows
Primary Heat Instance 3 Set to 0
Select using the Up / Down Arrows
Primary Heat Instance 4 Set to 4
Select using the Up / Down Arrows
Set to 1
Set to 2
Set to 248
Set to 4
Set to 164
Set to 0
Set to 166
Set to 167
