Summary of Contents for Austin Hughes Infra Power ATS-H8C13-10A_C14

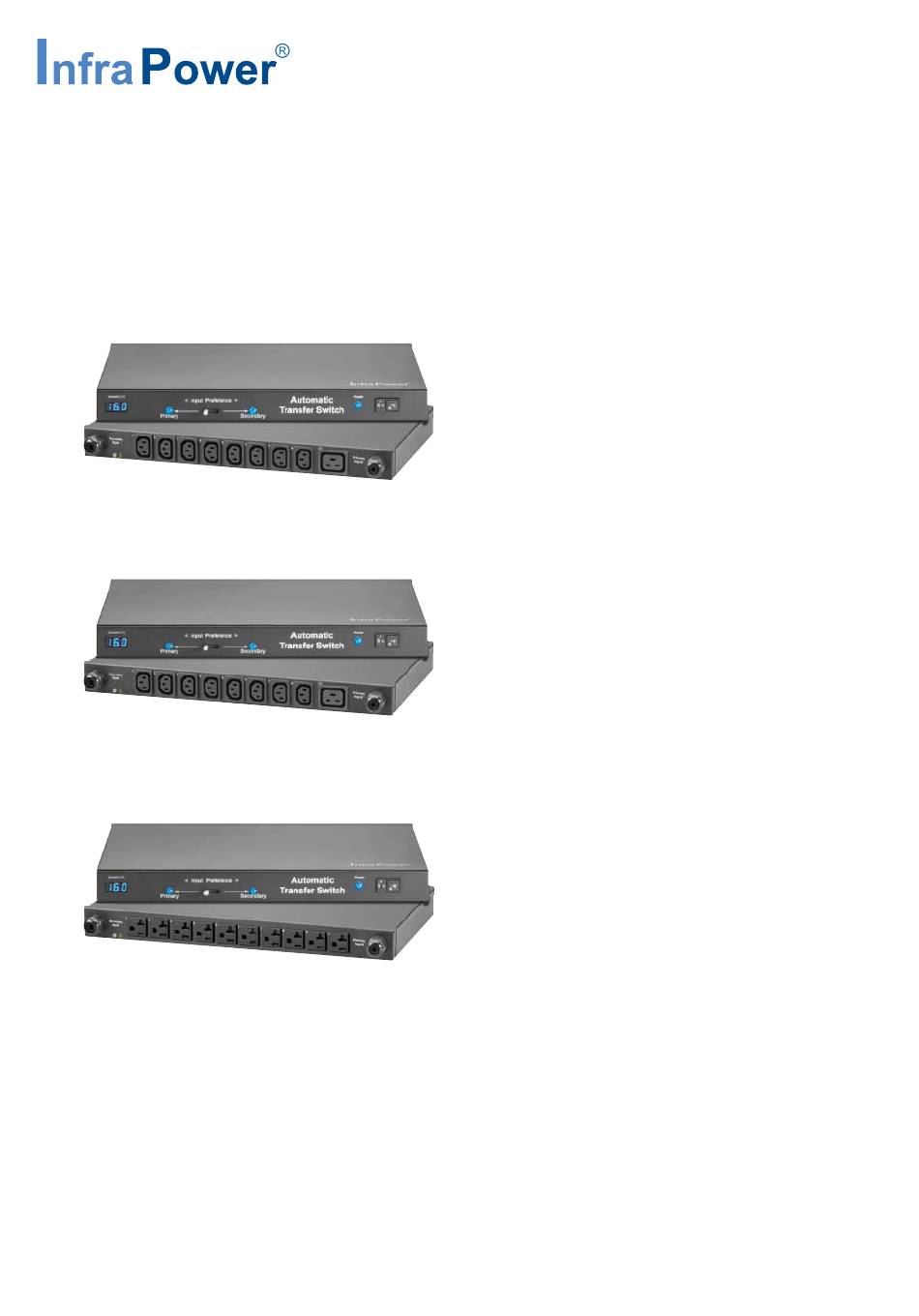

- Page 1 - Automatic Transfer Switch 230V Amp : 10A / 16A Outlet : C13 / C19 208V Amp : 20A Outlet : C13 / C19 110V Amp : 15A / 20A Outlet : US NEMA Designed and manufactured by Austin Hughes UM-IP-ATS-Q218V1 www.austin-hughes.com...
- Page 2 Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 3: Table Of Contents
Content Part I. ATS Installation & Connection Page < 1.1 > Package Content < 1.2 > Product Overview < 1.3 > Installation < 1.4 > Power Sources Connection < 1.5 > Devices Connection Part II. Model & Specifi cation < 2.1 > 230V ATS <... -
Page 4: Product Overview

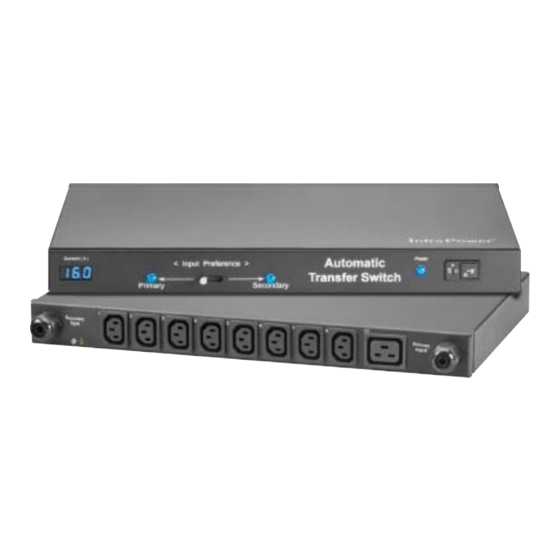

< 1.2 > Product Overview InfraPower Rackmount Auomatic Transfer Switch ( ATS ) with dual power input provides reliable and redundant power for single-corded equipment. By the input preference switch, users can defi ne the preferred power source. If the primary source is unavailable, the ATS will seamlessly source power from the secondary source without power interruption and downtime. -
Page 5: Installation
< 1.3 > Installation Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. -
Page 6: Power Sources Connection
Source plug when disconnected, or on the Primary Source or Sec- ondary Source output receptacles. For questions concerning this requirement please contact Austin Hughes Technical Support. E-mail : support@austin-hughes.com Step 2 : Power Source Connection Plug the male end of the power cord into the AC power source. -
Page 7: Part Ii. Model & Specifi Cation
Part II. Model & Specifi cation < 2.1 > 230V ATS Models Height Outlet Inlet x 2 Model List - 10 Amp ( 3M cord attached ) C13 x 8 ATS-H8C13-10A_C14 input plug C13 x 10 ATS-H10C13-10A_C14 C13 x 12 ATS-H12C13-10A_C14 C13 x 16 ATS-H16C13-10A_C14... - Page 8 < 2.1 > 230V ATS Specifi cation Nominal input voltage 200 ~ 230V Electrical Acceptable input voltage ±10% nominal Input frequency 50 / 60Hz Inlet plug & cord 2 x C14 / C20 / EN16 60309 plug with 3-meter cord Outlet connectors Multiple C13 / C19 outlets Local meter...
- Page 9 < 2.2 > 208V ATS Models Height Outlet Inlet x 2 Model List - 20 Amp ( 3M cord attached ) C13 x 8 ATS-H8C13-20A_L6-20P L6-20P input plug C13 x 10 ATS-H10C13-20A_L6-20P C13 x 12 ATS-H12C13-20A_L6-20P C13 x 16 ATS-H16C13-20A_L6-20P C13 x 20 ATS-H20C13-20A_L6-20P C13 x 8 + C19 x 1...
- Page 10 < 2.2 > 208V ATS Specifi cation Nominal input voltage 208V Electrical Acceptable input voltage ±10% nominal Input frequency 50 / 60Hz Inlet plug & cord 2 x L6-20P plug with 3-meter cord Outlet connectors Multiple C13 / C19 outlets Local meter 3-digital LED current meter Overload protection...
- Page 11 < 2.3 > 110V ATS Models Height Outlet Inlet x 2 Model List - 15 Amp ( 3M cord attached ) NEMA x 8 ATS-H8US-15A_5-15P NEMA 5-15P input plug NEMA x 10 ATS-H10US-15A_5-15P NEMA x 12 ATS-H12US-15A_5-15P NEMA x 16 ATS-H16US-15A_5-15P NEMA x 20 ATS-H20US-15A_5-15P...
- Page 12 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2018 Austin Hughes Electronics Ltd. All rights reserved. UM-IP-ATS-Q218V1 www.austin-hughes.com...
