Summary of Contents for Austin Hughes CyberView F121

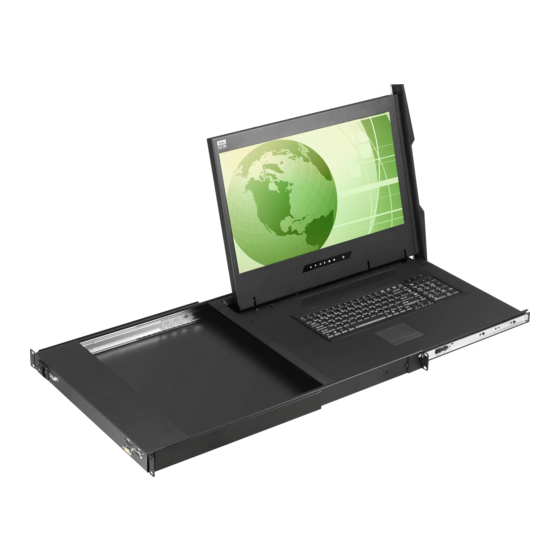

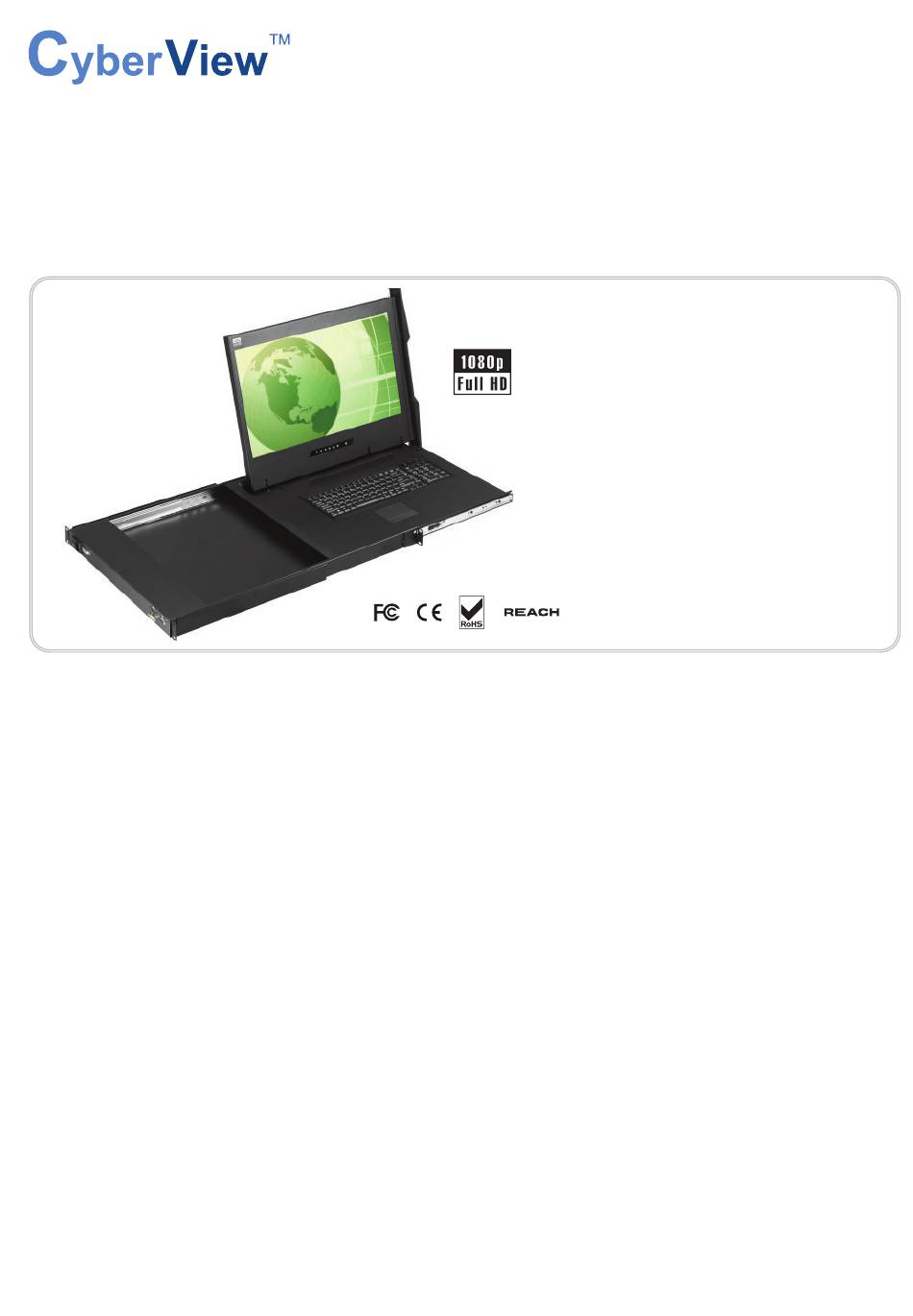

- Page 1 KVM switch and rackmount screen technology User Manual 21.5” FHD 1920 x 1080 LCD F121 1U LCD Console Drawer Options : - HDMI / SDI / DP - Full Range KVM - DC power Designed and manufactured by Austin Hughes UM-CV-751-F121-Q220V1 www.austin-hughes.com...
- Page 2 Legal Information First English printing, May 2020 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 3: Table Of Contents
Contents < Part. 1 > F121 Package Content Structure Diagram & Dimension Installation Connection < Part. 2 > Specifi cations / OSD Product Specifi cations Keyboard / Mouse Specifi cations On-screen Display Operation ( OSD ) P.11 < Part. 3 > Options 3G / HD / SD-SDI Broadcast-grade input P.13... - Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
-
Page 5: F121
< Part 1 > < 1.1 > Package Content F121 F121 unit X 1 - CX-6A 6ft DVI-D console cable X 1 - Power cord X 1 - M6 screw, cage nut & cup washer X 8 The above package content is only for the single console models. It varies with options such as KVM, SDI, HDMI &... - Page 6 < 1.2 > Dimension Front View Rear View AC Input 100~240V Power VGA DVI-D UNIT : mm Side View 1mm = 0.03937 inch Top View Product Dimension Packing Dimension Gross Model Net Weight (W x D x H) (W x D x H) Weight 441.6 x 670 x 44 mm 595 x 910 x 140 mm...
-
Page 7: Installation
< 1.3 > Installation - How to install Installation Slides F121 Step ■ Insert the left and right rear mounting brackets into the LCD console drawer. Step ■ Measure the depth of the front and rear mounting rails. ■ Align each rear mounting bracket to a suitable length. Step Complete the installation ■... - Page 8 < 1.3 > Installation- How to use the drawer ■ Hold the handle and slide out the drawer. ■ Flip up the LCD to a suitable angle. ■ Operate the LCD console drawer. Option - Right Side Open ■ at the end of the model no. Flip up LCD from the side sample : F121R...
-
Page 9: Connection
< 1.4 > Connection to USB Server via CX-6A cable F121 LCD Console Drawer DVI-D AC Input 100~240V POWER CX-6A DVI-D console cable USB server DVI-D < 1.4 > Connection to external KVM via CX-6A cable LCD Console Drawer DVI-D AC Input 100~240V POWER... -
Page 10: Product Specifi Cations
< Part 2 > < 2.1 > Product Specifi cations Manufacturer Panel Panel Size ( diagonal ) 21.5-inch Widescreen TFT color LCD Display pixel ( dots x lines ) 1920 x 1080 Brightness ( typ. ) Contrast Ratio ( typ. ) 1000:1 Color 16.7 M... - Page 11 F121 Physical Product ( W x D x H ) 441.6 x 670 x 44 mm Specifi cation 17.4 x 26.4 x 1.73 inch Packing ( W x D x H ) 595 x 910 x 140 mm 23.4 x 35.8 x 5.5 inch Net Weight 14.7 kg / 32.3 lb Gross Weight...
-
Page 12: Keyboard / Mouse Specifi Cations
< 2.2 > Standard Keyboard / Mouse Specifi cations G keyboard integrated with touchpad G keyboard integrated with trackball Key force 55 ± 5g Travelling distance 3 ± 0.3mm Switch life > 10 million life cycle time OS support Windows / Linux / Unix / Mac OS Supporting layouts America United States... - Page 13 < 2.2 > MAC Keyboard / Mouse Options F121 MAC keyboard integrated with touchpad MAC keyboard integrated with trackball Supporting layouts America United States How to Use "MAC" Keyboard Keyboard Features Decrease display brightness Fast-forward Increase display brightness Mute sound Mission control * Only works with OS X Lion Decrease volume...
- Page 14 < 2.2 > SUN Keyboard / Mouse Options S keyboard integrated with touchpad S keyboard integrated with trackball Ca ps Scro ll Comp ose Ca ps Scro ll Comp ose S keyboard integrated with touchpad / trackball ■ Incorporates SUN keys, including Stop, Cut, Paste, Compose, Copy and Help ■...
-
Page 15: On-Screen Display Operation ( Osd )
< 2.3 > On-screen Display Operation ( OSD ) F121 F121 Membrane Switch Function Turn the monitor on or off Display the OSD menu Act as an Enter key to select screen setting options Scroll through menu options and adjust the displayed control Exit the OSD screen Go back to the previous on-screen sub-menu or... - Page 16 < 2.3 > On-screen Display Operation ( OSD ) Color Color temperature : User / Warm / Cool / 5400k mode and Red / Green / Blue color balance Sharpness : Adjust the image from weak to sharp : Adjust the screen hue value Saturation : Adjust the saturation of the image color Dynamic...
- Page 17 < Part 3 > < 3.1 > Options : 3G / HD / SD-SDI input F121 Austin Hughes’ SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with CyberView displays, a SDI input...
-
Page 18: Options
< 3.2 > Options : DP Option - Display Port ( DP 1.0, HDCP 1.3 ) AC Input 100~240V HDMI Option - HDMI ( HDMI 1.4, HDCP 1.4 ) HDMI AC Input 100~240V BNC Option - Composite ( BNC ) AC Input 100~240V AV4.4 Option... - Page 19 F121 < 3.3 > Options : DC Power Model 125V Input rating Input voltage: 12-Volt 24-Volt 48-Volt 110-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V 66 ~ 160V Input current - No load 50 mA 50 mA 50 mA 35 mA - Full load...
-
Page 20: Kvm Integration
The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2020 Austin Hughes Electronics Ltd. All rights reserved. UM-CV-751-F121-Q220V1 www.austin-hughes.com...
