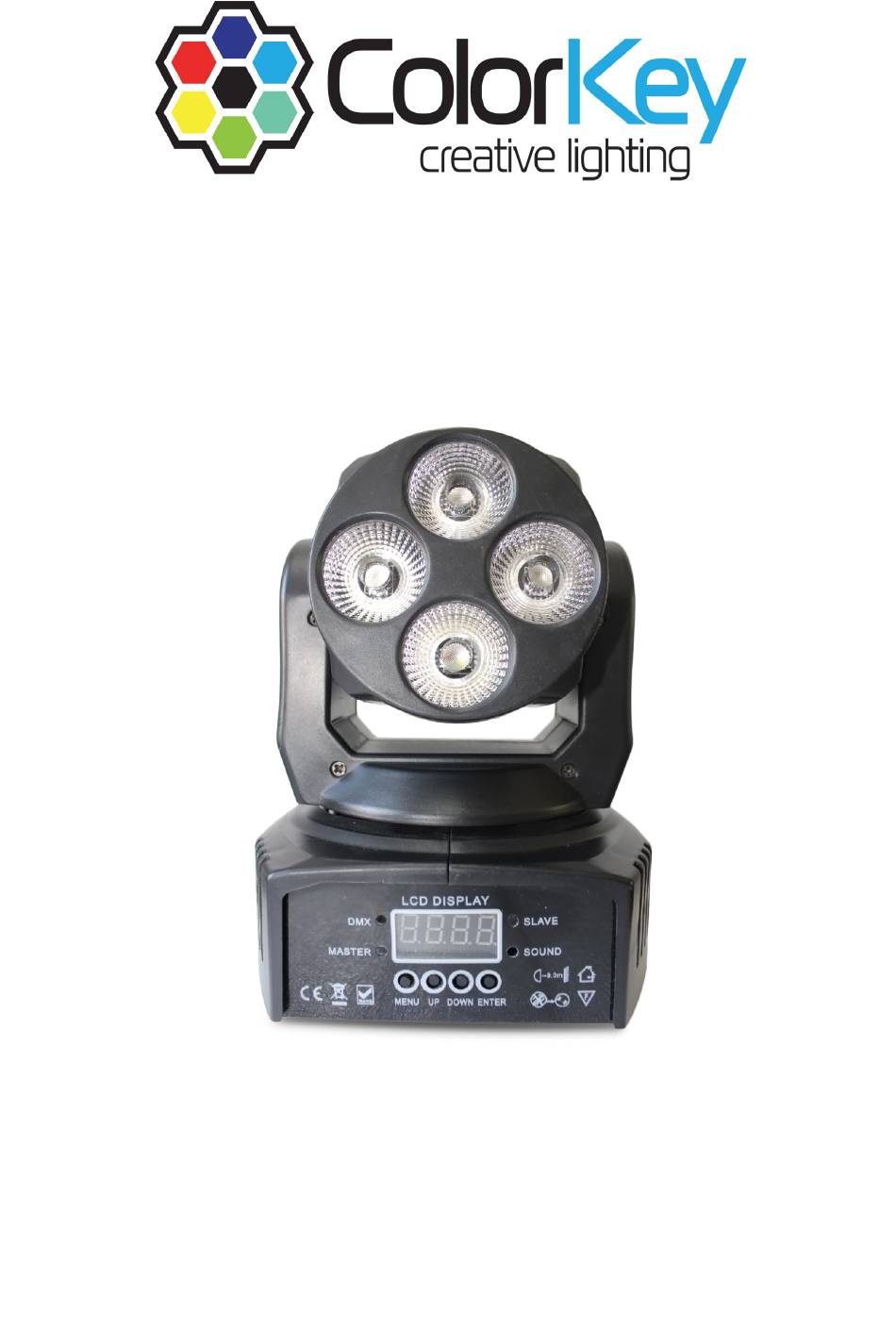

- Page 1 Mover Miniwash QUAD 4 CKU01-5033 USER MANUAL...
- Page 2 Introduction Thank you for purchasing the ColorKey Mover Miniwash QUAD 4. Please read these instructions carefully before use. Operating this fixture according to these instructions is important to avoid any possible damage or accidents caused by misuse. Packing list n 1x Mover Miniwash QUAD 4 moving head fixture...
-
Page 3: Display Operation
Display Operation Ø MENU: Access the menu/Scroll through menu options Ø ENTER: Open/Select the current menu option Ø UP: Scroll through menu selection or parameter increase Ø DOWN: Scroll through menu selection or parameters decrease... -
Page 4: Menu Guide
Menu Guide A001-A51 Addr DMX 512 16CH 16 channel CHnd 18CH 18 channel Auto Master Auto Mode Soun Master Sound Mode SLnd SL 1 Console control SL 2 Slave Mode SH 0 Effect 0 (recommended) SH 1 Effect 1 SHnd SH 2 Effect 2 SH 3... -
Page 5: Dmx Values
DMX Values 16 Channel mode Function Value PAN running 0-255 TILT running 0-255 Speed adjustment 0-255 Dimmer 0-255 Strobe (from slow speed to fast 0-255 speed) Red dimming 0-255 Green dimming 0-255 Blue dimming 0-255 White dimming 0-255 Orange dimming 0-255 UV dimming 0-255... - Page 6 18 Channel mode Channe Function Value PAN running 0-255 Hint adjustment 0-255 (PAN) TILT running 0-255 Hint adjustment 0-255 (TILT) Speed adjustment 0-255 Dimmer 0-255 Strobe (from slow speed to fast 0-255 speed) Red dimming 0-255 Green dimming 0-255 Blue dimming 0-255 White dimming 0-255...
-
Page 7: Dmx Connections
DMX Connections Ø DMX Cable ： The Mover Miniwash QUAD 4 can be controlled via DMX using a 3-pin XLR connection. The standard DMX connection is XLR is: one end connects to the male plug, and the other connects to the female. As below: pin 1: ground, pin 2: negative signal, pin 3: positive signal Noted：In order to avoid failures and interference signal transmission，we connect a... -
Page 8: Master/Slave Mode Operation
Master/Slave Mode Operation Master/Slave Master/Slave mode allows you to connect multiple units together using one (1) unit to control others in a chain. When a fixture is set to ‘Master Mode,’ this unit will always act as a controlling unit until it is switched out of ‘Master Mode’. The Master unit will send out signal via DMX to Slave units which will react in synchronization. -
Page 9: Technical Information
Pan: 540˚ Tilt: 270˚ IP rate: IP20 Notice to consumer: ColorKey offers a 1-year limited warranty. Please visit our website at www.ColorKeyLED.com to register your product. Please note: As we continue to work towards improving our products and your experience as a user, we recommend that you check our website periodically for updates to user manuals and specifications at www.ColorKeyLED.com or you may contact us directly at...
