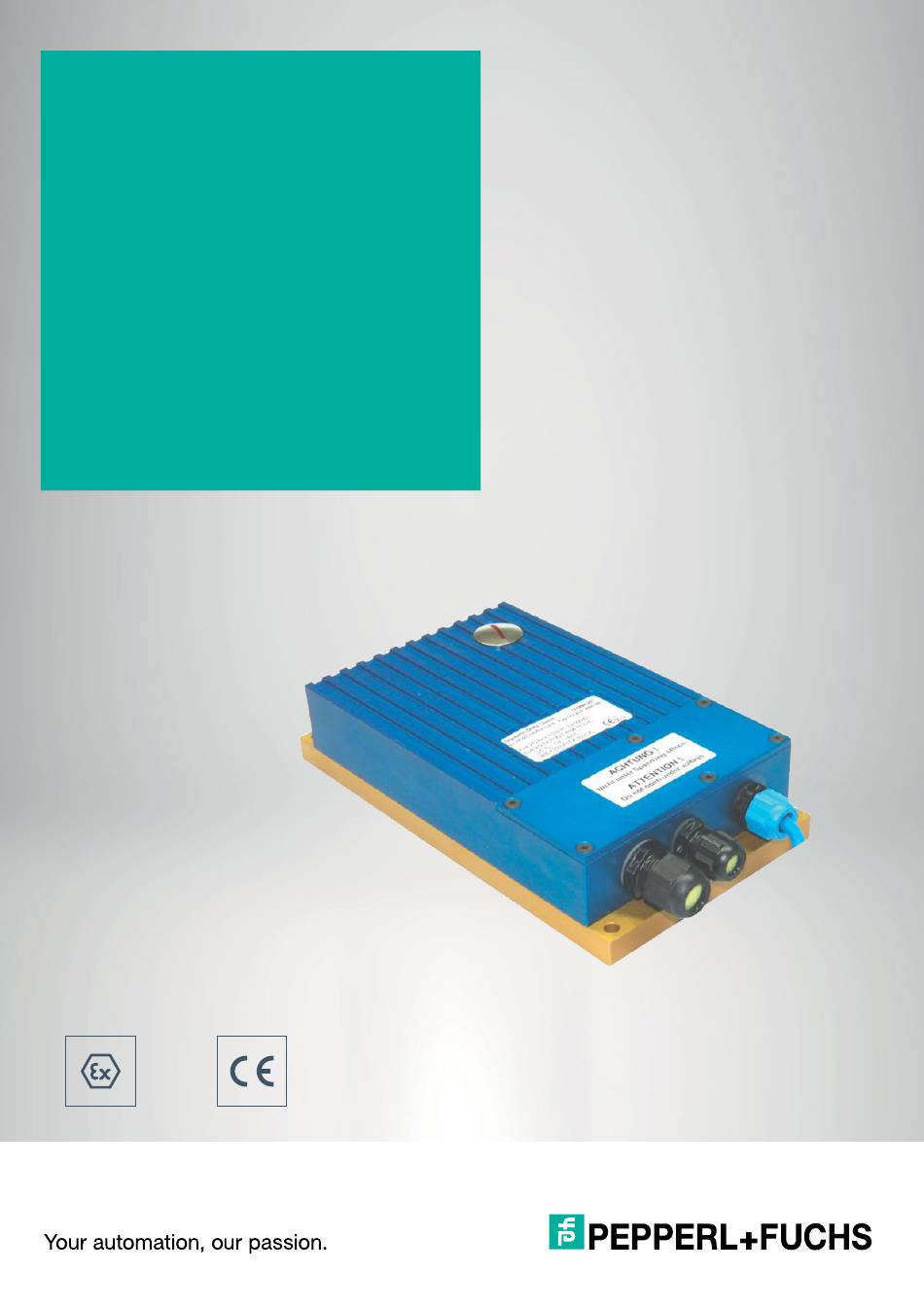

- Page 1 Manual PSU-IDM160-BD-1D-J1-*-N0 PSU-IDM260-D-2D-J1-*-S-N0 Power module...
- Page 3 The latest version of the General Terms of Supply for Products and Services in the Electronics Industry set out by the German Electrical and Electronic Manufacturers’ Association (ZVEI) and the "Extended Reservation of Proprietorship" supplementary clause apply to this document.
-
Page 4: Table Of Contents
T able of onTenTs Table of Contents 1. Important Notes About The Instruction Manual ........6 1.1. Safety Information ..................6 1.2. Notes About The Manual ................7 1.3. General Warning Messages ................9 2. Technical Data ..................11 2.1. Explosion Protection ..................11 2.2. -
Page 6: Important Notes About The Instruction Manual
I mporTanT oTes bouT nsTruCTIon anual 1. Important Notes About The Instruction Manual 1.1. Safety Information This document contains symbols to identify warning messages and information mes- sages. Warnings You always find warning messages whenever hazards could result from your actions. It is essential that you observe these warning messages to ensure your personal safe- ty and to prevent property damage. - Page 7 Observe the information given in this manual during commissioning and use of the product. There is no responsibility for actuality. Pepperl+Fuchs GmbH reserves the right to make changes to this document. Prior to use, make sure that you have the latest version of the user manual. Check the homepage www.pepperl-fuchs.com or contact your contact person at Pepperl+Fuchs...
-
Page 8: General Warning Messages
DANger! Do not make any changes to the device that are not intended or been approved by Pepperl+Fuchs. Improper handling of the power module can void the type approval to operate in ex- plosion-hazardous areas. Non-compliance excludes warranty claims. - Page 9 I mporTanT oTes bouT nsTruCTIon anual Note Note the relevant deployment and operational regulations for electrical plants (e.g., Directive 99/92/EC, Directive 2014/34/EU or the applicable national regula- tions, IEC 60 079-14, and the series DIN VDE 0100). As the operator, perform maintenance and repair work for the device properly in explosion-hazardous areas.
-
Page 10: Technical Data
II 2D Ex tb [ib] IIIC T135 °C Db -25 °C ≤ Ta ≤ +60 °C Test certificate IBExU18ATEX1051 IECEx IBE 18.0010 Manufacturer Pepperl+Fuchs GmbH Lilienthalstraße 200 68307 Mannheim, Germany info@de.pepperl-fuchs.com 2.2. Technical Data–Power Module for 1-D Handheld readers PSU-IDM160-BD-... -
Page 11: Technical Data-Power Module For 2-D Handheld Readers
T T eChnICal eChnICal PSU-IDM160-BD- PSU-IDM160-BD- PSU-IDM160-BD- PSU-IDM160-BD- 1D-J1-DC-S-N0 1D-J1-DC-U-N0 1D-J1-AC-S-N0 1D-J1-AC-U-N0 Power supply 0.2 mm² … 2.5 mm² (AWG24 … AWG14), 3-pin cable Data cable 0.2 mm² … 2.5 0.2 mm² … 2.5 0.2 mm² … 2.5 0.2 mm²... -
Page 12: Use
T eChnICal PSU-IDM260-D-2D-J1-DC-S-N0 PSU-IDM260-D-2D-J1-AC-S-N0 Frequency 50 Hz ... 60 Hz range Power supply 0.2 mm² … 2.5 mm² (AWG24 … AWG14), 3-pin cable Data cable 0.2 mm² … 2.5 mm² (24 AWG … 14 AWG), 3-pin Data cable max. 15 m length Ambient conditions... -
Page 13: System Structure
3. S yStem tructure The power module is an accessory that supplies power to the wired Pepperl+Fuchs handheld scanners IDM160-D-1D-J1*, IDM260-D-2D-J1* as well as to Blue- tooth base station IDMx61-B-J1-BT-N0 and charging cradle IDMx61-C-BT-N0. The corresponding system configurations of the power module with the respective handheld scanners can be found in the manuals for the Pepperl+Fuchs IDM handheld scanner series. -
Page 14: Commissioning
C C ommIssIonIng ommIssIonIng 4. Commissioning 4.1. Installation Structure of the power module The power module is fastened to a stable base using the four mounting holes at the corners of the base plate . The holes each have a diameter of 7 mm. Figure 1. - Page 15 C C ommIssIonIng ommIssIonIng Terminal compartment under covering fixture Cable gland M16 x 1.5 for consumers Cable gland M16 x 1.5 for data transfer Cable gland M20 x 1.5 for power supply Figure 3. Terminal compartment and cable glands WArNINg! Do not open the housing in the explosion-hazardous area! Before the device is put into operation in explosion-hazardous areas, it must be...
-
Page 16: Pin Assignment In The Terminal Compartment Psu-Idm160-Bd-1D-J1-Dc-S-N0 And Psu-Idm260-D-2D-J1-Dc-S-N0
C ommIssIonIng 4.2. Pin assignment in the terminal compartment PSU-IDM160-BD-1D-J1-DC-S-N0 and PSU- IDM260-D-2D-J1-DC-S-N0 Figure 5. Terminal blocks in the terminal compartment Assignment for ex e terminal compartment Terminal no. Designation Description +/- L + = 24 V DC - = 0 V DC Protective earth RS232 RS232... -
Page 17: Pin Assignment In The Terminal Compartment Psu-Idm160-Bd-1D-J1-Dc-U-N0
C ommIssIonIng 4.5. Pin assignment in the terminal compartment PSU-IDM160-BD-1D-J1-DC-U-N0 Figure 6. Terminal blocks in the terminal compartment Assignment for ex e terminal compartment Terminal no. Designation Description +/- L + = 24 V DC - = 0 V DC Protective earth Shield n. -
Page 18: Pin Assignment In The Terminal Compartment Psu-Idm160-Bd-1D-J1-Ac-S-N0 And Psu-Idm260-D-2D-J1-Dc-S-N0
C ommIssIonIng 4.6. Pin assignment in the terminal compartment PSU-IDM160-BD-1D-J1-AC-S-N0 and PSU- IDM260-D-2D-J1-DC-S-N0 Figure 7. Terminal blocks in the terminal compartment Assignment for ex e terminal compartment Terminal no. Designation Description +/- L L = 100 ... 250 V DC N = Neutral conductor Protective earth RS232... -
Page 19: Pin Assignment In The Terminal Compartment Psu-Idm160-Bd-1D-J1-Ac-U-N0
C ommIssIonIng 4.7. Pin assignment in the terminal compartment PSU-IDM160-BD-1D-J1-AC-U-N0 Figure 8. Terminal blocks in the terminal compartment Assignment for ex e terminal compartment Terminal no. Designation Description +/- L L = 100 ... 250 V DC N = Neutral conductor Protective earth Shield n. -
Page 20: Accessories
a a CCessorIes CCessorIes 5. Accessories Designation Description Wired handheld barcode scanner IDM160-D-1D-J1-SU-N-N0 Wired handheld scanner for 1-D codes ATEX & IECEx Zone 1/21 IDM160-D-1D-J1-SU-P-N0 Wired handheld scanner for 1-D codes ATEX & IECEx Zone 1/21 Supports PDF417 barcode IDM260-D-2D-J1-S1-N-N0 Wired handheld scanner for 2-D codes ATEX &... - Page 21 a CCessorIes Designation Description PSU-IDM260-D-2D-J1-DC- Power module for wired 2-D handheld scanner S-N0 ATEX & IECEx Zone 1/21 RS232 connection, 24 VDC For IDM260-D-2D-J1* PSU-IDM260-D-2D-J1-AC- Power module for wired 2-D handheld scanner S-N0 ATEX & IECEx Zone 1/21 RS232 connection, 230 VAC For IDM260-D-2D-J1* PSU-IDMx61-BC-N0-N0 Power supply for non-explosion-hazardous base station &...
- Page 22 a CCessorIes Designation Description CBL-IDMx61-B-J1-S-C38-N0 RS232 connection cable base station ATEX & IECEx Zone 1/21 3.8 m length, spiral For IDMx61-B-J1* CBL-IDMx61-B-J1-U-S18-N0 USB connection cable base station ATEX & IECEx Zone 1/21 1.8 m length, smooth For IDMx61-B-J1* CBL-IDMx61-B-J1-U-C38-N0 USB connection cable base station ATEX &...
- Page 23 Pepperl+Fuchs Quality Download our latest policy here: www.pepperl-fuchs.com/quality www.pepperl-fuchs.com www.pepperl-fuchs.com www.pepperl-fuchs.com Subject to modifications · © Pepperl+Fuchs Subject to modifications Subject to modifications © Pepperl+Fuchs © Pepperl+Fuchs · · Printed in Germany · 2018-06 · DOCT-6119 Printed in Germany Printed in Germany Part.
