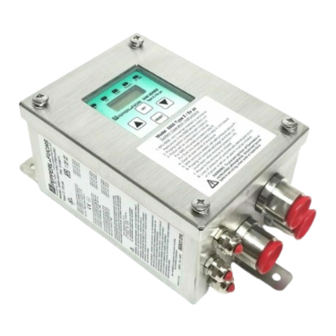

Pepperl+Fuchs 5500 Series Programming Quick Manual

5500 Programming
Quick Guide
Operating Elements of the Controller
The 5500 controller has four pushbuttons and five LEDs.
To advance up
To advance down
For EXIT out of parameter and RESET
Enter purge settings and select function
If the button is pressed longer than 5 seconds, the 5500 controller
will go into the programming mode.
The entries appear in the following sequence:
DISPLAY PARAMETER
PASSWORD / SET Enter PSW settings
PURGE / PROGRAM Program modes
PURGE / TIME Purging time
ENCLOSUR/PRESS P1 Min pressure
ENCLOSUR/PRESS P2 Alarm pressure
ENCLOSUR/PRESS P3 Purging pressure
ENCLOSUR/PRESS P4 Max pressure
LEAKAGE / HYST Leakage comp
PROGRAM /K2 K2 function
SHUT-OFF / DELAY Delay shut-off K1
NUMBER/ OF Pt100 2 max for Pt100
TEMP PT1 /SV1 SV1 on above PT1
TEMP PT2 / SV1 SV1 on above PT2
TEMP PT1 / K2 K2 on above PT1
TEMP PT2 / K2 K2 on above PT2
TEMP PT1 / K1 K1 on above PT1
TEMP PT2 / K1 K1 on above Pt2
BYPASS / N Y E Bypass off/on/External N
UNITS / M I Metric or Imperial
TEMP / ENABLED Temp function enable
CHANGE / PASSWORD Change password
Program Application Purge
Purge 1 Gas
Purge 2 Gas
Purge 3 Gas
Purge 4 Gas
Purge 5 Dust
DEFAULT
0000
3
00:30
Gas: 0.3" (0.8mbar)
Dust: 0.7" (1.8mbar)
0.8" (2 mbar)
3.0" (7.5 mbar)
6.0" (15 mbar)
0.5" (1.25 mbar)
K1
0 sec
0
35 °C
35 °C
45 °C
45 °C
50 °C
50 °C
I
N
------
Operation Specifics
• Purge starts on power up (SV1)
• After purging Enclosure contacts (K1) energize
• If max. Press (P4) is reached, SV1 turns off
Immediate
• Enclosure power ON during loss of pressure (K1)
Purge
• Alarms can be set for low pressure/temp. (K2)
• Pressure compensation turns on below (P2)
• Purge starts above P1 pressure (SV1)
• After purging Enclosure contacts (K1) energize
• If max. Press (P4) is reached, Sv1 turns off
Delayed
• Enclosure power on during loss of pressure (K1)
Purge
• Alarms can be set for low pressure/temp. (K2)
• Pressure compensation turns on below (P2)
• Purge starts above P1 pressure (SV1)
• After purging, enclosure contacts (K1) energize
• If max. Press (P4) is reached, SV1 turns off
Delayed
• Immediate shut-down during loss of pressure (K1)
Purge
• Alarms can be set for low pressure/temp. (K2)
• Pressure compensation turns on below (P2)
• Purge starts on power up (SV1)
• After purging, enclosure contacts (K1) energize
• If max. Press (P4) is reached, Sv1 turns off
Immediate
• Enclosure power on during loss of pressure (K1)
Purge
• Alarms can be set for low pressure/temp. (K2)
• Pressure compensation turns on below (P3)
• Intended for continuous purge applications
• In dust atmosphere purging is not required
• Enclosure must be cleaned
• Pressure above (P1), Enclosure contact on (K1)
Clean
• Enclosure power ON during loss of pressure (K1)
Enclosure
• Alarms can be set for low pressure/temp. (K2)
• Pressure compensation turns on below (P2)
MENU STRUCTURE
LEAKAGE
Power On
HYST
PROGRAM
SET
K2
5 sec.
SHUT-OFF
DELAY
PASSWORD
NUMBER
OF PT100
PURGE
PROGRAM
TEMP PT1
SV1
Purge
Time
TEMP PT2
SV1
ENCLOSUR
PRESS P1
TEMP PT1
K2
ENCLOSUR
PRESS P2
TEMP PT2
K2
ENCLOSURE
PRESS P3
TEMP PT1
K1
ENCLOSURE
PRESS P4
LED Indication
LED LED Color
K1 Green
K2 Amber
P/SV1 Blue
Amber
BYPASS Amber
PT100 Red
Purge time
Purge time is set in Min:Sec (000:00).
Hold either key down to adjust the set time more quickly.
ENCLOSURE / PRESS P1
Pressure P1 is the minimum allowed pressure for
safe use.
Minimum value is 0.3" for gas and 0.7" for dust.
ENCLOSURE / PRESS P2
Pressure P2 is used for low pressure function.
Compensation for leakages for certain functions
will activate SV1 when below P2.
ENCLOSURE / PRESS P3
Pressure P3 is used to activate the time for purging.
Pressure above P3 indicates proper flow for purging.
In Program 4, P3 will start continuous flow compensation.
ENCLOSURE / PRESS P4
Pressure P4 is a maximum overpressure value. In reaching
this value, the display will read 'MAX'.
If P4 is achieved during purging, SV1 will shut off until
pressure is below P4.
TEMP PT2
K1
BYPASS
UNITS
M I
TEMP
DISABLED
CHANGE
PASSWORD
PASSWORD
At any time during
purge settings
SET
5 sec.
EXIT
Description
Contact K1 is energized
Contact K2 is energized
Safe pressure P1
SV1 is energized
Bypass ON
Pt100 fault
