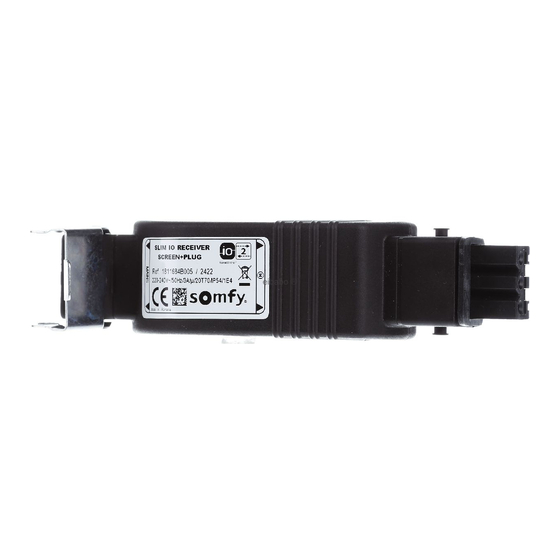

- Page 1 SLIM IO RECEIVER SCREEN+PLUG Notice Brugsvejledning Anleitung Bruksanvisning Instructions Bruksanvisning Manuale Kılavuz Manual Instrukcja Instruções Návod Εγχειρίδιο Útmutató Handleiding Manual Käyttöohje Návod na použitie...
-
Page 3: Table Of Contents
Indicates a danger which may result in minor or moderate injury. Attention Indicates a danger which may result in damage to or destruction of the product. Non contractual images. Copyright © 2017 SOMFY ACTIVITE SA, Société Anonyme.. All rights reserved. -
Page 4: Introduction
Any operation of the receiver outside the scope of application described above is prohibited. Such operation shall exclude Somfy from all liability and invalidate the Somfy warranty, as will any failure to comply with the instructions given herein and in the enclosed Safety instructions document. -
Page 5: Installation
• Leave the receiver power supply cable accessible: it must be easily replaceable. Warning Always make a loop in the power supply cable to prevent water from entering the receiver. Copyright © 2017 SOMFY ACTIVITE SA, Société Anonyme.. All rights reserved. -
Page 6: Commissioning
4.1.2.2 4.1.2.2, depending on the reaction of the motorised product. 4.1.2.1. The motorised product still does not move The linear travel is not set and the Somfy control point has not been programmed. Go to § 4.2. 4.1.2.2. The motorised product raises or lowers completely by pressing and holding the... -
Page 7: Pre-Programming The Somfy Io Local Control Point
4.2. PRE-PROGRAMMING THE SOMFY IO LOCAL CONTROL POINT • Press the Up and Down buttons simultaneously. The motorised product moves briefly. The Somfy local io control point is pre-programmed to the motor. 4.3. CHECKING THE MOTOR'S DIRECTION OF ROTATION 1) Press the Up button on the control point: •... -
Page 8: Programming The First Somfy Io Local Control Point
Time of functioning = T(f) (Max = 4 min). 6) Go to § 4.5. 4.5. PROGRAMMING THE FIRST SOMFY IO LOCAL CONTROL POINT 4.5.1. Using a pre-programmed Somfy io local control point • Briefly press the PROG button on this control point. -
Page 9: Adding/Deleting Somfy Io Control Points And Io Sensors
2) Press the "my" button on the control button until the motorised product moves. The favourite position (my) has been deleted. 5.4. ADDING/DELETING SOMFY IO CONTROL POINTS AND IO SENSORS Refer to the corresponding guide. 5.5. REPLACING A LOST OR BROKEN IO-HOMECONTROL® SOMFY CONTROL POINT To replace a lost or broken io-homecontrol®... -
Page 10: Restoring The Original Configuration
3) Switch the power supply back on for 5 to 15 seconds. 15 s 4) Cut the power supply for 2 seconds. 5) Switch the power supply back on. The motorised product moves for a few seconds. Copyright © 2017 SOMFY ACTIVITE SA, Société Anonyme.. All rights reserved. -
Page 11: Technical Data
Slim io Receiver Screen + Plug 6) Press the PROG button on the Somfy io-homecontrol® local control point for ≈ 7 s until the motorised product moves up and down twice. The receiver is reset to its original configuration. 7. TECHNICAL DATA Power supply 220 - 240 V / 50 Hz... - Page 12 CTest conditions Simulated with a practically resistive load Somfy hereby declares that the radio equipment covered by these instructions is in compliance with the essential requirements of Radio Directive 2014/53/EU and the other essential requirements of the applicable European Directives.
