INSTALLATION
1
Characteristics:
108 mm
2
Installation:
Before connecting the unit, you must read the instructions carefully.

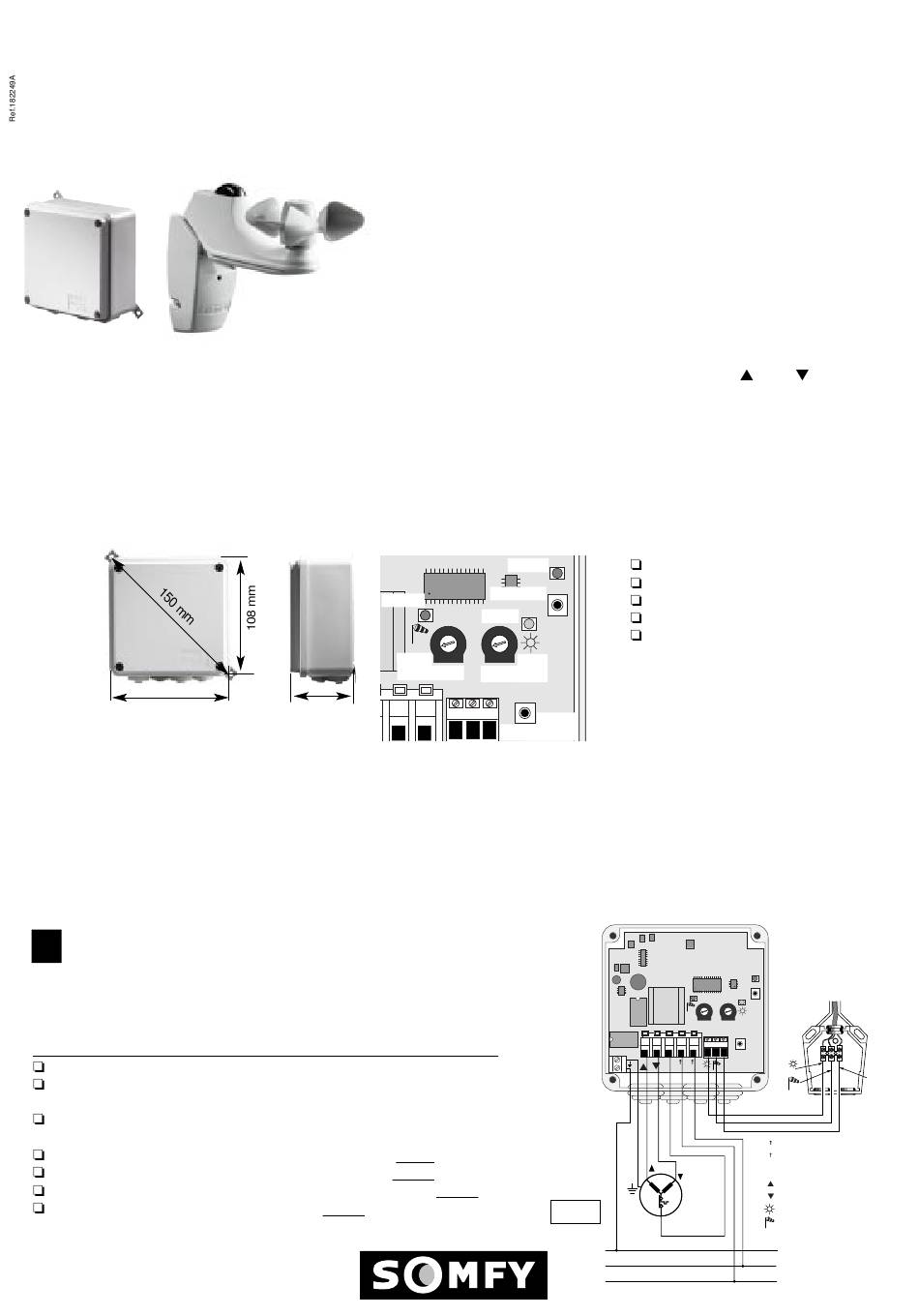

Mounting of the SOLIRIS receiver RTS :
A
The SOLIRIS receiver RTS is compatible with all standard SOMFY
motors. Cabling arrangements are shown in the diagram.
Respect the electrical standards in force as well as the following points:
disconnect the mains before carrying out any work.
Install the SOLIRIS receiver RTS with the cables entry pointing downwards
to avoid water infiltration.
Do no install the SOLIRIS receiver RTS against a metallic part
(it could affect the radio transmission).
minimum distance between the receiver and the floor : 1,5 m.
minimum distance between the receiver and the roof : 30 cm.
minimum distance between the receiver and the transmitter : 30 cm.
minimum distance between two receivers : 20 cm.
inteo
The SOLIRIS receiver RTS is a radio receiver for awnings with an auto-
matic control according to the daylight intensity and protection against
wind damage.

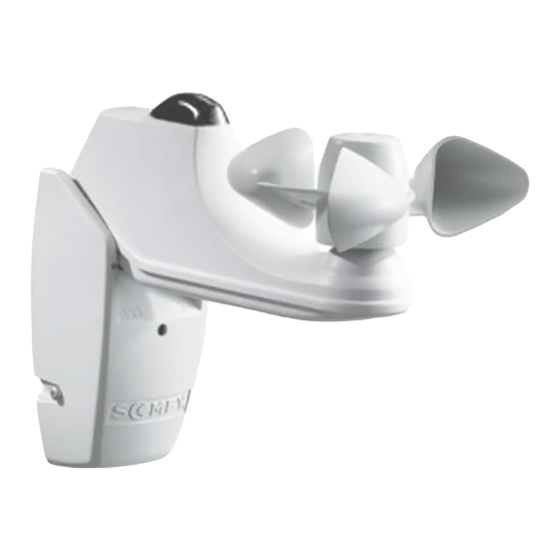

The SOLIRIS receiver RTS has to be used with the TELIS soliris RTS and
the SOLIRIS sensor.
The SOLIRIS receiver RTS is also compatible with the other RTS controls
and the INIS RT (
Commands are transmitted by radio (frequency 433.42 MHz).
wind led
wind
potentiometer
58 mm
SOLIRIS receiver RTS
the functioning is a trip switch type :
Mains supply : 220-240 V~ 50/60 Hz
prog led
Protection index: IP 44
prog button
Operating temperature: -20°C to +50°C
sun led
Class II product once installed
Normally polluted environment
sun
potentiometer
manual
control button
Soliris receiver RTS
MAIN
SUPPLY
N
Earth
Phase
Neutral
®
guide
, stop,
, stop,...)
Soliris sensor
SC
N N L
L
= Main phase
= Main neutral
N
N
= Motor neutral
= Motor up
= Motor down
= SUN input
LT motor
= WIND input
= COMMON input
SC
SC
