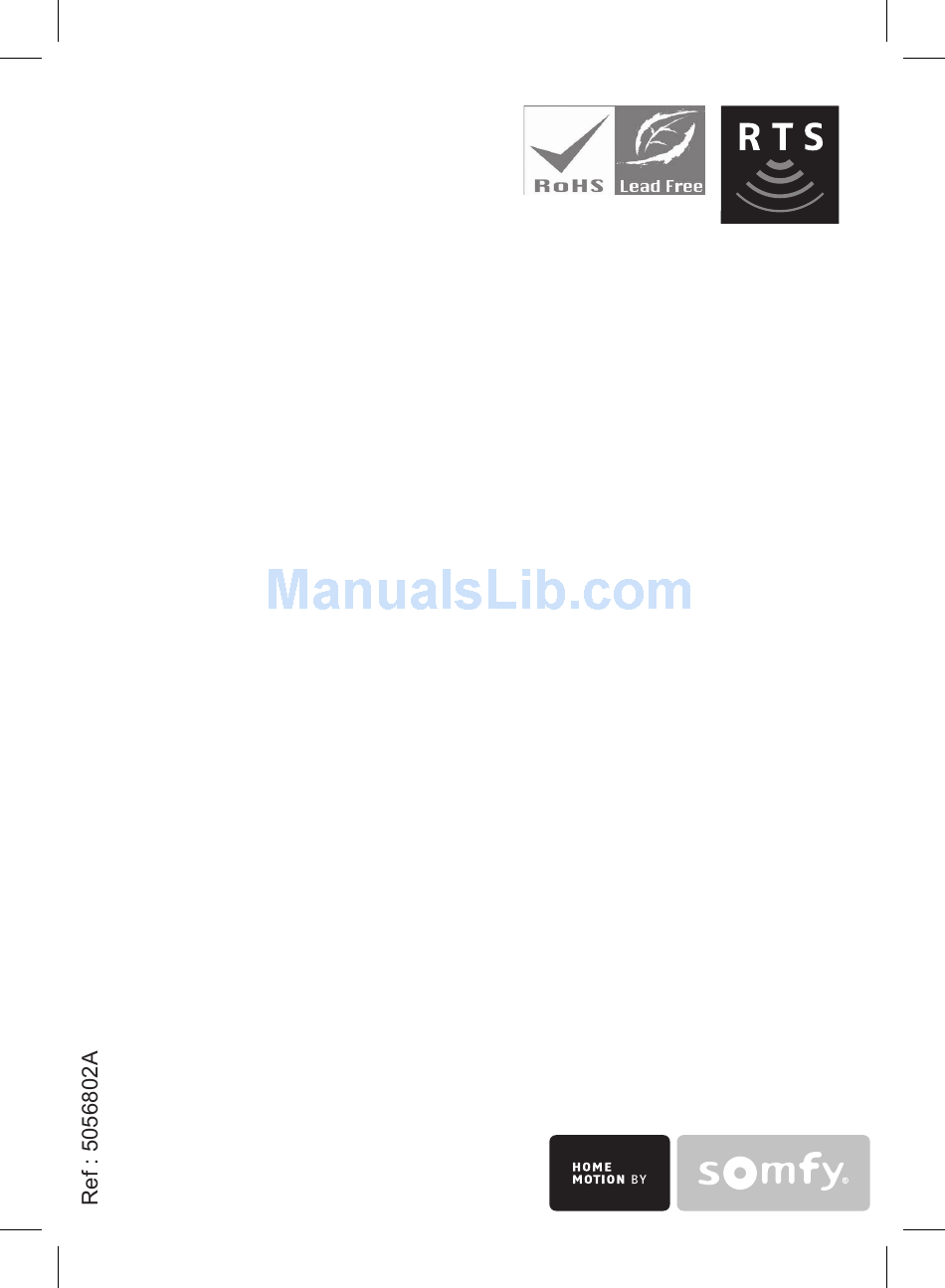

  • Page 1 Somfy.com Integrated DC RTS RECEIVER DC RTS RECEIVER Operating and installation guide Guía de instalación y de uso Guida all'installazione Guia de instalação e de utilização...
  • Page 2 Suitable for use in EU, CH and NO. Guía de instalación página 16 Por la presente, Somfy declara que el aparato cumple las exigencias esenciales y el resto de disposiciones pertinentes de la directiva 1999/5/CE. Podrá encontrar una declaración de conformidad en la página web www.somfy.com/ce.
  • Page 3 • Any use outside the sphere of application specified by Somfy is not approved. Such use, or any failure to comply with the instructions given herein will invali- date the warranty, and Somfy refuses to accept liability.
  • Page 4 7075 A - COMPATIBLE APPLICATIONS 1) Compatible controls The DC RTS Receiver is compatible with all Somfy RTS transmitters with a maximum of 12 transmitters and 3 sensor per DC RTS Receiver. 2) Compatible motors LW25 B83 , LW 25 B44 , LV25 B44 , LV25 B64 , LT28 B73 The DC RTS Receiver can control 1 or 2 motors.

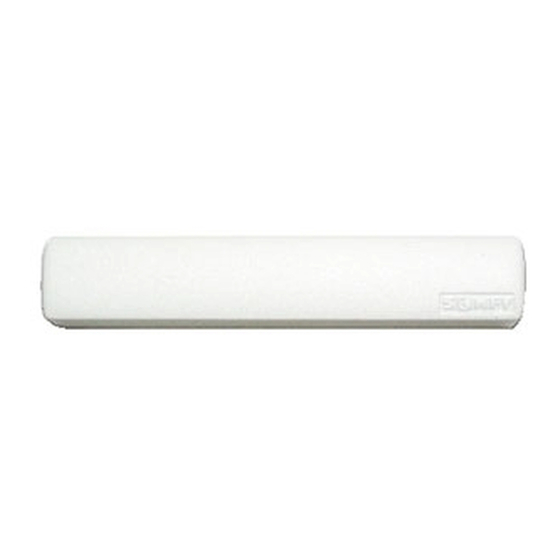

  • Page 5 Product dedicated to be placed inside a headrail. 1) Installing the Integrated DC RTS Receiver : Snap the 2 Headrail adaptors on the Integrated DC RTS Receiver (for a complete list of adaptors, please refer to your local Somfy retailer).
  • Page 6 Place the DC RTS Receiver on the wall and tight the screw properly. B) Rail mounting . Remove the adhesive cover from the back of the DC RTS Receiver (cf Fig C) and place it on the desired area of the rail. The rail must be cleaned prior to this step.
  • Page 7 Venetian blind mode or roller blind mode. The DC RTS Receiver is set by default to work in Venetian blind mode. This feature allows setting the DC RTS Receiver to be set according to the type of blind you are working with.
  • Page 8 C - ADJUSTING THE BLIND End limits are operated by the motor and its accessories and not by the DC RTS Receiver. To use the DC RTS Receiver the product must be installed, connected and linked to a remote control. The mode can be selected (Venetian or roller) as well as the motor rotation direction.
  • Page 9 Verify the rotation direction using the Up and Down buttons. This operation can be repeated several times. The direction is inverted every time the My button is pressed for 2 seconds. Copyright © 2008 Somfy SAS. All rights reserved - V0 - 05/2008...
  • Page 10 (in case motor is at the top of the blind). Press the My button for approximately 2 seconds until the blind moves up and down to confirm the sensor mode selection . Copyright © 2008 Somfy SAS. All rights reserved - V0 - 05/2008...
  • Page 11 My button for approximately 2 seconds until the blind moves up and down. Durations are confir- med, saved and a favorite position (My) is automatically set. Copyright © 2008 Somfy SAS. All rights reserved - V0 - 05/2008...
  • Page 12 By briefly pressing the My button take the blind to the current My position. Press the My button for approximately 5 seconds until the blind moves up and down. The position has been deleted. Copyright © 2008 Somfy SAS. All rights reserved - V0 - 05/2008...
  • Page 13 Disappearing sun position (slat in hori- zontal position). Press the My button for approximately 5 seconds until the blind moves up and down. The Disappearing sun position has been saved. Copyright © 2008 Somfy SAS. All rights reserved - V0 - 05/2008...
  • Page 14 (Privacy function on). Press the My button for approximately 5 seconds until the blind moves up and down to confirm your selection. Copyright © 2008 Somfy SAS. All rights reserved - V0 - 05/2008...
  • Page 15 Third time for approximately 12 seconds. All transmitters and sensors are deleted, up and down motion durations are deleted. The product settings are back to default factory configuration. Copyright © 2008 Somfy SAS. All rights reserved - V0 - 05/2008...
  • Page 16 Problem with the functions : Check you are in the right mode (Venetian or Roller). Lost in your programming mode: Just make a complete reset and start again. Copyright © 2008 Somfy SAS. All rights reserved - V0 - 05/2008...
