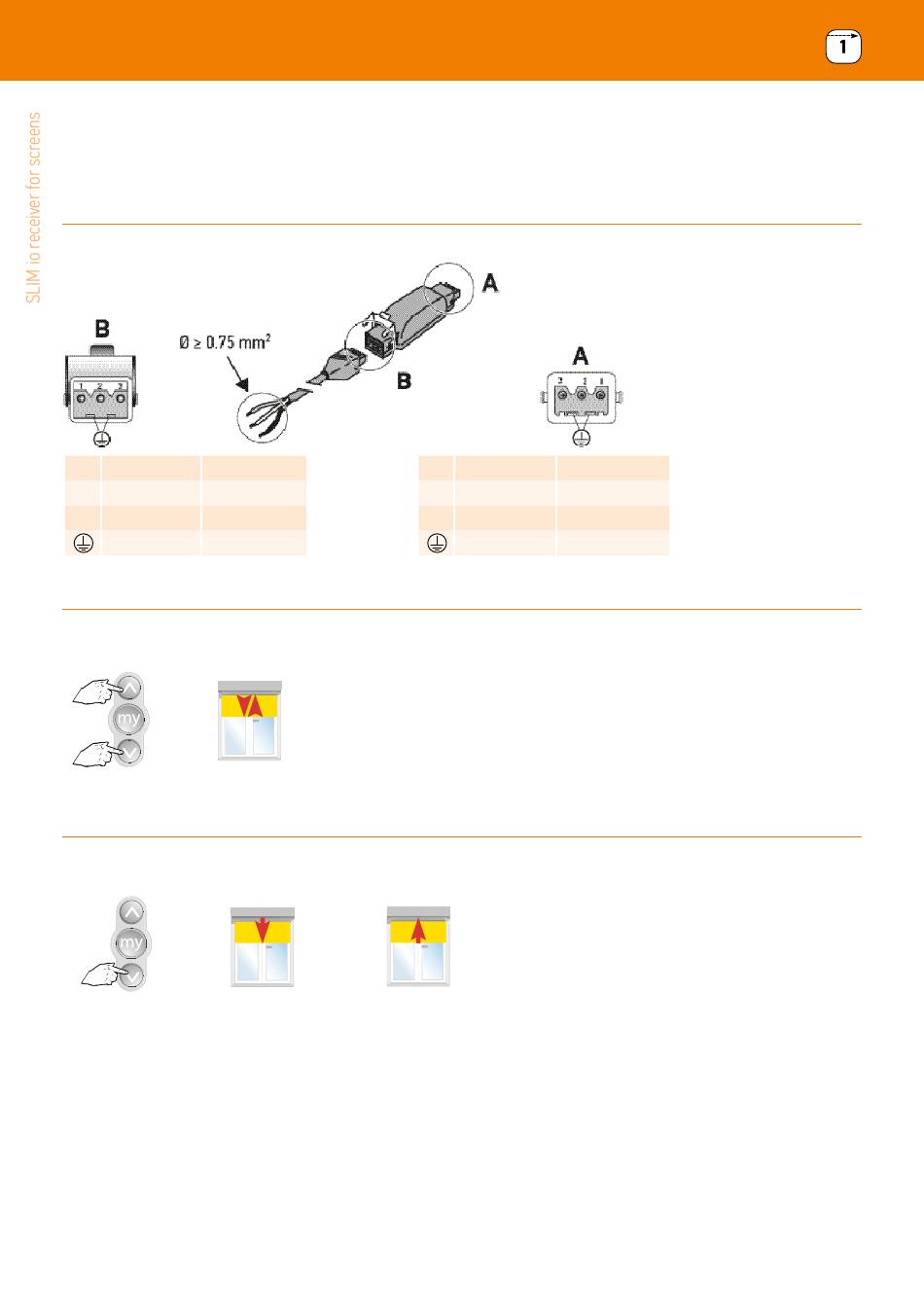

Settings of the SLIM io receiver for screens
Settings with a local control (1W transmitter)
The end limits of the motor are set
Setting of the running time and programming a transmitter
1 Wiring
1
Blue
Neutral
2
Black
Phase
3
-
-
Yellow/green Earth
Power supply
2 Take control of the motor
Press at the same
...short movement
time until...
3 Check the rotation direction
Press briefly
OK step 5
1
1
Blue
2
Black
3
Brown
Yellow/green
Motor side
or
not OK step 4
Neutral
Rotation 1
Rotation 2
Earth
