3.4 Connections in "DMX" mode:

DMX is the abbreviation for digital multiplex and allows the digital control of several DMX devices via a
common control cable.
Connect the DMX input of the unit to the DMX output of a DMX controller or other DMX device.
Connect the output of the first DMX device to the input of the second and so on to form a series circuit

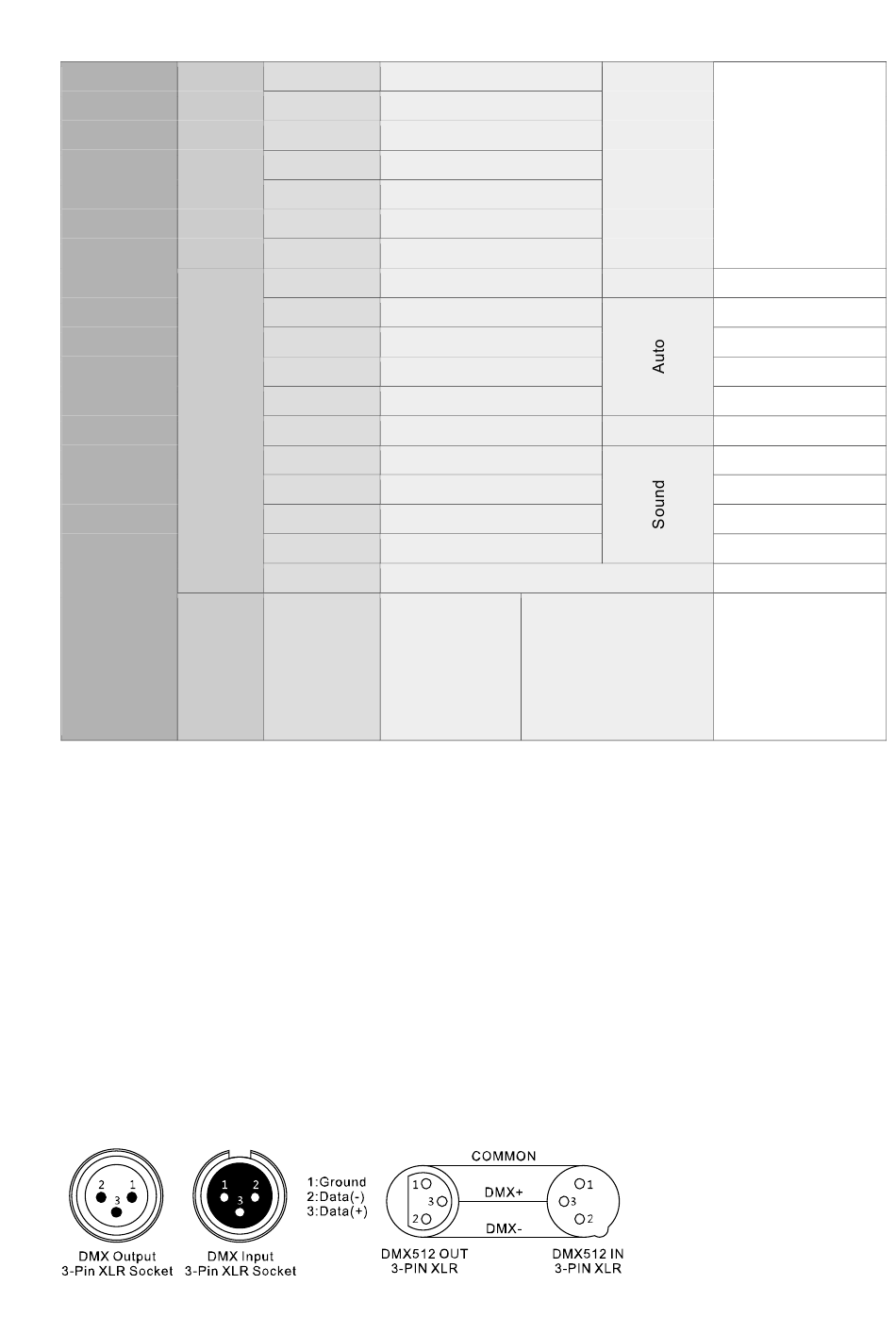

DMX connectors: A three-pin XLR socket serves as a DMX output, a three-pin XLR connector serves
as a DMX input.
140 - 149 LIGHT GREEN
150 - 159 ORANGE
160 - 169 LAVENDER
170 - 179 LIGHT BLUE
180 - 189 DARK BLUE
190 - 199 PINK
200 - 255 No Function
000 - 009 No Function
010 - 019 auto program 1
020 - 029 auto program 2
030 - 039 auto program 3
040 - 049 auto program 4
050 - 059 No Function
060 - 069 sound program 1
070 - 079 sound program 2
080 - 089 sound program 3
090 - 099 sound program 4
100 - 255 No Function
Speed: slow →
fast
000 - 255 Can be set when
Auto Program 1,
2, 3 or 4 is used
via CH76.
Microphone sensitivity:
min. → max.
Adjustable when sound
program 1, 2, 3 or 4 is
used via CH76.
Beeinflusst alle
Funktionen von
CH76
