Coolaroo AutoSun Custom Made Instruction Manual page 9

STEP 4
Tighten adjustable fastener with Allen key provided at
your desired length, at least 3/ 4 in. below the base rail
(Fig 5 & 6).
IMPORTANT:
a. Locate an area on the wall/floor that is suitable
for the bottom bracket to be screwed into.
Ensure wire guide reaches the suitable drilling point
for the bottom bracket. If not, readjust the fastener
to the correct length.
b. Allow for any kind of obstacles such as window winders and
window sills, etc.
STEP 5
When you are confident you have the right length, cut excess wire
with pliers (as pictured). Leave approximately
1/ 4 in. wire overhang (Fig 7).
STEP 6
Reattach bottom bracket by screwing the end cap back into the
bracket. Pull wire guide down tight.
STEP 7
Using a pencil, mark drilling holes for the bracket installation (Fig 8).
IMPORTANT: Ensure bottom bracket is vertically aligned
with the top bracket.

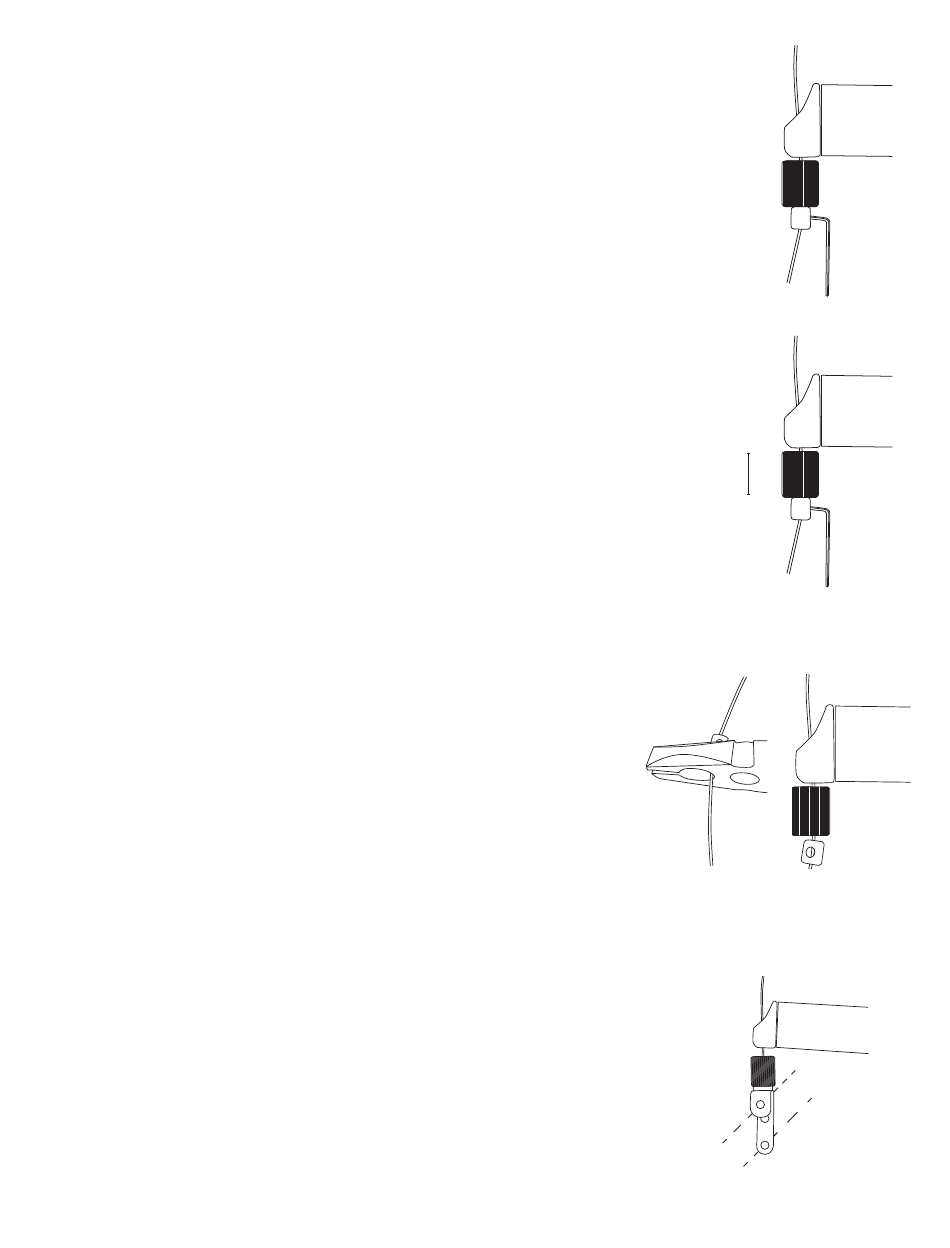

Fig 5
At least
20mm
Fig 6
Fig 7
Fig 8
9
