Install The Shade - Coolaroo AutoSun Custom Made Instruction Manual

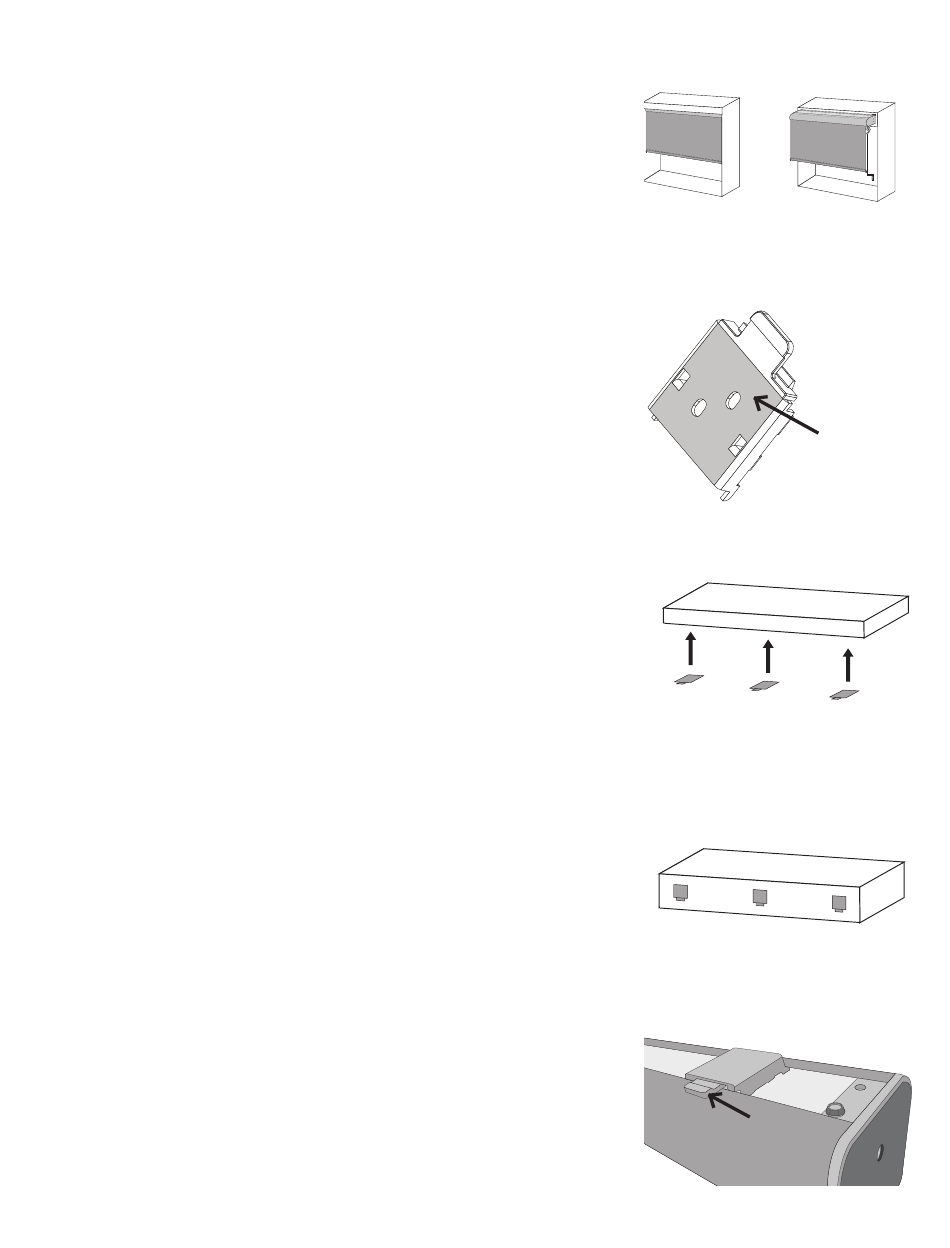

1. DETERMINE DESIRED MOUNTING METHOD
a. This two in one valance design allows you to easily mount the
sun shade to either a ceiling (fig. 1) or a wall (fig. 2).
2. MARK THE HOLES
a. Measure 2 inches in from each end of the sun shade and mark
for bracket installations.
b. Mark a third location near the center of the sun shade for the
third bracket installation.
c. All marks must be made to ensure a level installation of the sun
shade for proper functionality.
3. INSTALL THE BRACKETS
a. In the marked locations, attach Quick Mount Brackets (fig. 4,
fig. 5) with screws, into wooded stud.
b. The release tabs on the Quick Mount Brackets must be facing
out towards you on the ceiling mount or downwards for a wall
mount. This ensures access to the tabs once the sun shade is
installed.

4. INSTALL THE SHADE

a. Snap the shade onto the Quick Mount Brackets, placing the top
of the channel onto the bracket and pushing on the full valance
until you hear them snap into place.
b. To remove the sun shade, hold in the release tab on the Quick
Mount Bracket. (fig. 6).
Wood screws have been provided. If installing into any material
other than wood, additional screws may be needed. If unsure,
check with a local contractor. (see below)
(A) Full Valance
Self tapping screws > Aluminum
(9) Idle End Plug
Masonry/Concrete screws > Concrete
(8) Idle
End Unit
Drywall anchors > Drywall (B) Crank Handle
(E) Bottom
Rail Cap
with ring
Stainless steel > Outdoors
(6) Bottom Rail
(D) Bungee
(6) Quick Mount
Brackets
(C) Receiver
(10) Aluminum Tube
(1) Crank Unit
(2) Clutch Plug
(3) Wand
(4) Bottom
Rail Cap
with ring
You will need:
Pelmet Pelmet
cap
Pelmet
cap
Idle end plug
Clutch unit
Aluminium tube
Clutch plug
Idle end
unit
Blind
Wire
guide
Wire
guide
Bottom exposed
aluminium rail
Wand
STEP 1
You may also need
(H) Shade
(G) Bottom Rail
(J) Valance Bracket
(L) Contemporary Valance Option
(K) Traditional Valance
(H) Idle End Unit
(I) Aluminum Tube (A) Crank Unit
(B) Clutch Plug
(G) Idle
End Plug
(F) Shade
(C) Crank Handle
(E) Bottom Rail
(D) Bottom
Rail Cap
with ring
You may also need
(H) Shade
(G) Bottom Rail
(E) Bottom
Rail Cap
with ring
(A) Full Valance
(F) Quick Mount
Brackets
Ceiling Wall
(E) Bottom
Rail Cap
with ring
Fig. 1 Fig. 2
(D) Bungee
(F) Quick Mount
Brackets
(C) Receiver
this side goes on
mounting surface
Fig. 3
Inside
Fig. 4
Outside
Fig. 5
You may also need
release tab
Fig. 6
(9) Idle End Plug
(8) Idle
End Unit
(B) Crank Handle
(6) Bottom Rail
(D) Bungee
(6) Quick Mount
Brackets
(C) Receiver
(B) Crank Handle
