Commissioning
1
2
A
4
6
B
5 5
7
10 C
On
15
Warn.
16
Alarm
17
D
18

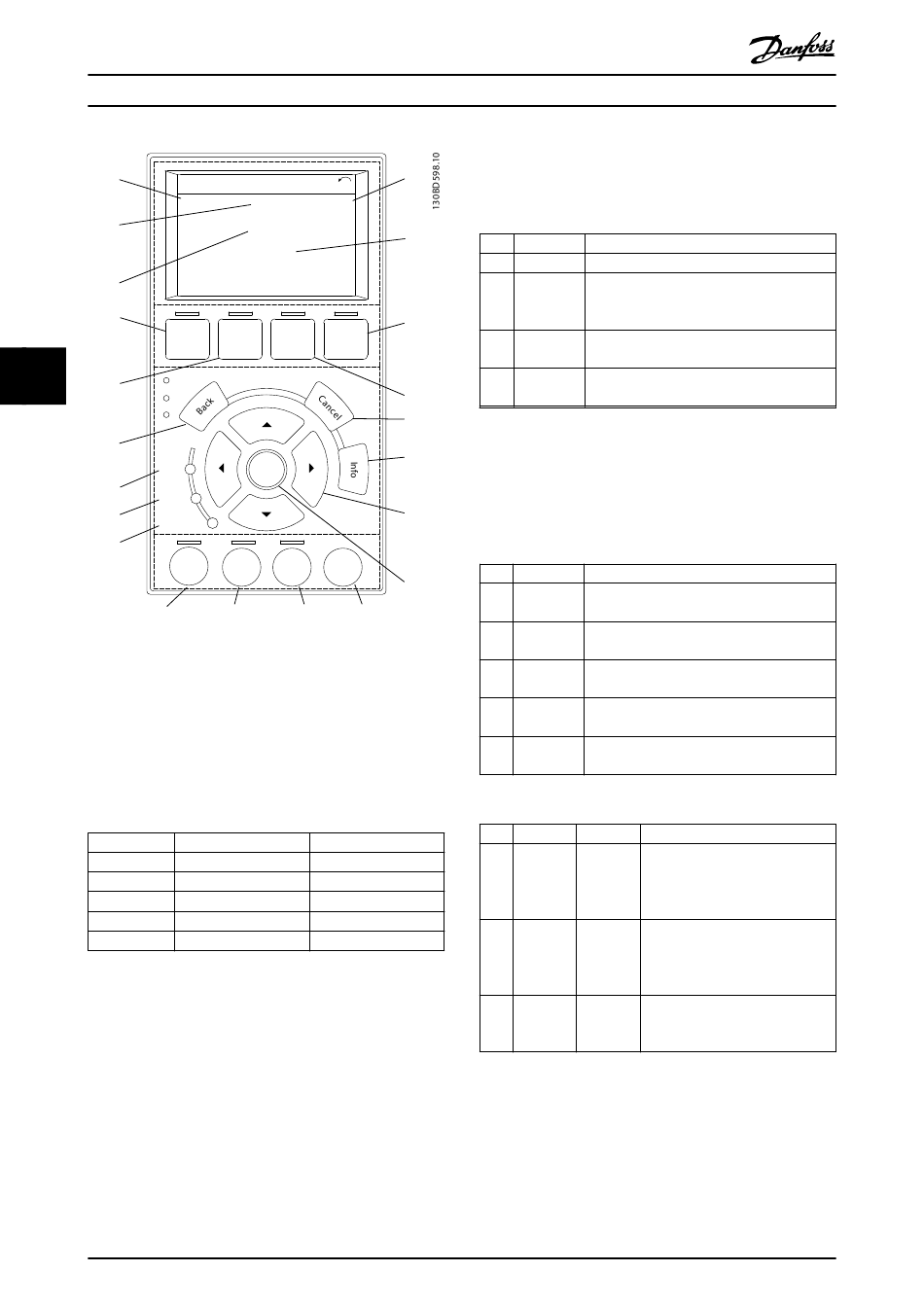

Illustration 5.8 Graphic Local Control Panel (GLCP)
A. Display area
The display area is activated when the frequency converter
receives power from the mains voltage, a DC bus terminal,
or a 24 V DC external supply.
The information shown on the LCP can be customized for
user application. Select options in the Quick Menu Q3-13
Display Settings.
Display
1
2
3
4
5
Table 5.8 Legend to Illustration 5.8, Display Area
26
Status 1(1)
7.83 A 36.4 kW
799 RPM
0.000
53.2 %
Auto Remote Ramping
Quick Main Alarm
Status
Menu Menu Log
OK
Hand Auto
Reset
Off
on on
19 20
Parameter number Default setting
0-20 [1602] Reference [%]
0-21 [1614] Motor Current
0-22 [1610] Power [kW]
0-23 [1613] Frequency
0-24 [1502] kWh Counter
