Data Acquisition Software Setup

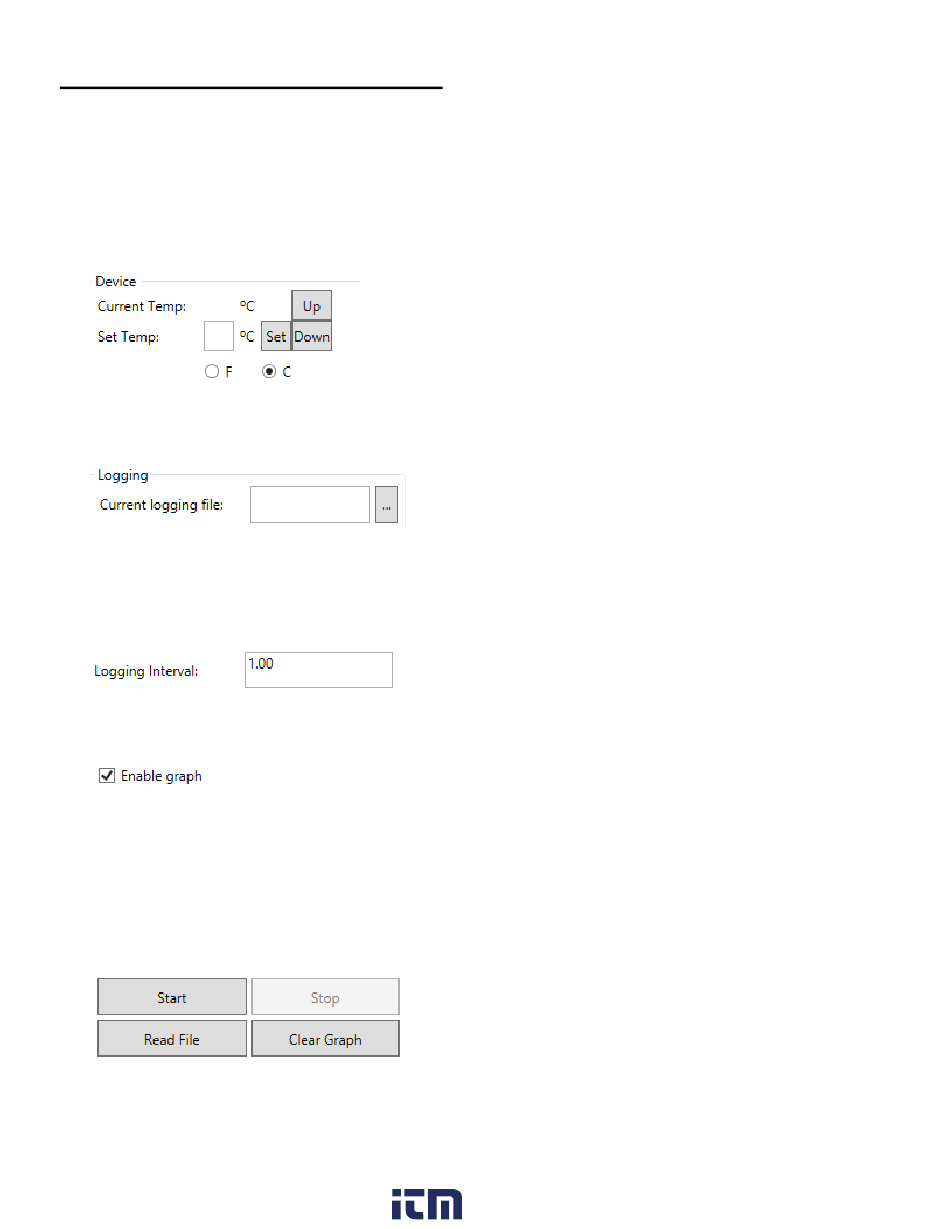

Setting Temperature Set Point
Use the UP and DOWN buttons beside Set Temp to adjust temperature set point.

The user can also manually type in the temperature by placing the mouse pointer in

Set Temp box. Then type in set point value and press the Set button.
This will update the temperature on the Digi-Sense controller.

Data Logging Setup
1.
to
2. Data logging interval defaults at 1.00 seconds. Change the value by left-clicking with pointer
located inside the box.
3.
4.
5. Start/stop data logging and graphing function:
Start button — Select this button to start graphing and data logging.
Stop button — Stops the data logging and graphing when the Start button is active.
1.800.561.8187
Enable Graph will have a check in the box as the default setting. If the live graph
is not wanted, left-click with mouse pointer over the box to turn off the feature.
www.
Enter file name into Current logging file. Press the button
change file directory path.
Type in new interval time and left-click with mouse in the
graph area.
Read File button — Loads a previous data file for
viewing on graph.
Clear Graph button — Clears all data on the graph.
