Digi-Sense TC9600 Advanced User Manual page 10

PID Control Mode Setup:

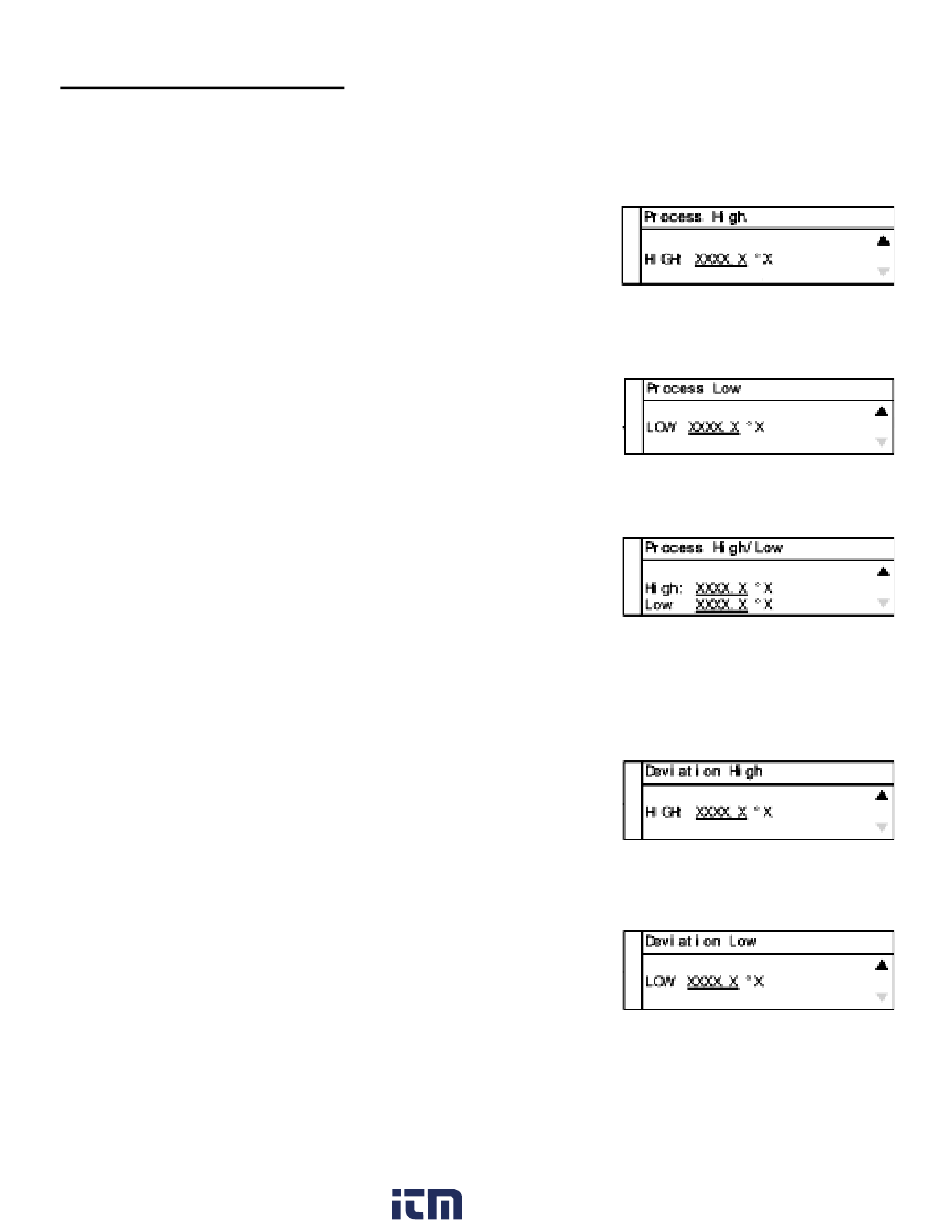

Screen # 6 - Setting Alarm Mode Variables
This screen reflects the variable settings for the selected alarm mode from screen # 5.

-Set Point—Process High
- Press the UP/DOWN arrow keys to adjust the
temperature value.
- When complete, press MENU key to advance to screen # 7.
-Set Point—Process Low
- Press the UP/DOWN arrow keys to adjust the
temperature value.
- When complete, press MENU key to advance to screen # 7.
-Set Point—Process High/Low
- Press the UP/DOWN arrow keys to adjust the
temperature value.
- Press the SELECT key to toggle between High and Low.
There will be a line below the active field.
- When complete, press MENU key to advance to screen # 7.
-Set Point—Deviation High
- Press the UP/DOWN arrow keys to adjust the
temperature value.
- When complete, press MENU key to advance to screen # 7.
-Set Point—Deviation Low
- Press the UP/DOWN arrow keys to adjust the
temperature value.
- When complete, press MENU key to advance to screen # 7.
