Digi-Sense TC9600 Advanced User Manual page 14

PID Control Mode Setup

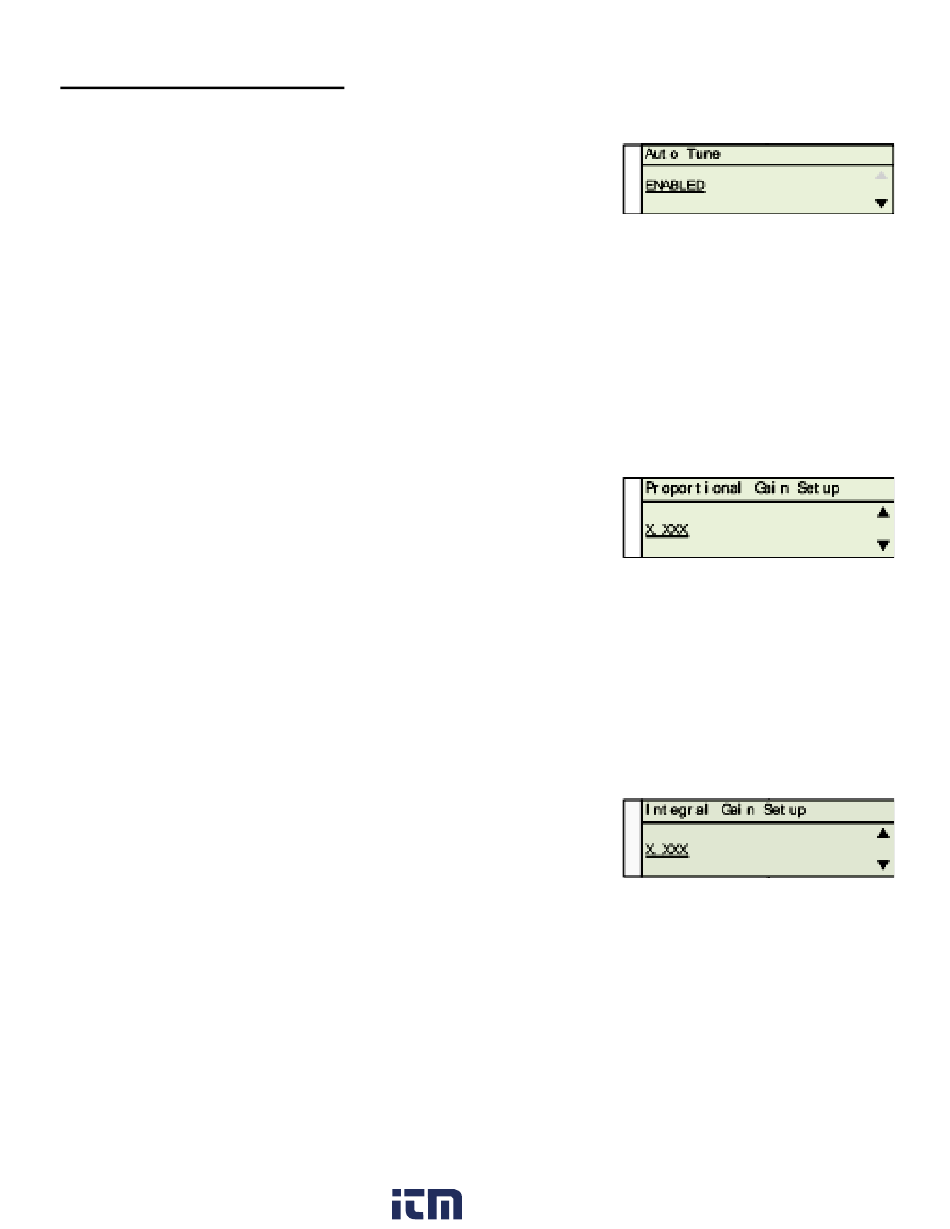

Screen # 16 - Auto Tune
Default value is ENABLED. Use UP/DOWN arrow keys

to toggle between ENABLED and DISABLED.
Select ENABLED to use the Tune key on the front panel to activate the Auto Tune function.

This function needs to remain ENABLED until the controller has been properly tuned to the
user's particular application.
NOTE: the control auto tunes to 90% of the set point.

When complete, press MENU key to advance to screen # 17.

Screen # 17 - Proportional Gain Setup
Use UP/DOWN arrow keys to change the value.

WARNING:

experience in manual setup of PID (Proportional, Integral, and Derivative) of this controller.
These values are derived from running the auto tune function. Altering the value after auto tune
has been completed will affect the performance of the system.
When complete, press MENU key to advance to screen # 18.

Screen # 18 - Integral Gain Setup
Use UP/DOWN arrow keys to change the value.

WARNING:

experience in manual setup of PID (Proportional, Integral,
and Derivative) of this controller. These values are derived from running the auto tune function.
Altering the values after auto tune has been completed will affect the performance of the system.
When complete, press MENU key to advance to screen # 19.

1.800.561.8187
:
Do not change these values unless you have
Do not change these values unless you have
