Digi-Sense TC9600 Advanced User Manual page 24

Ramp & Soak Mode Setup:

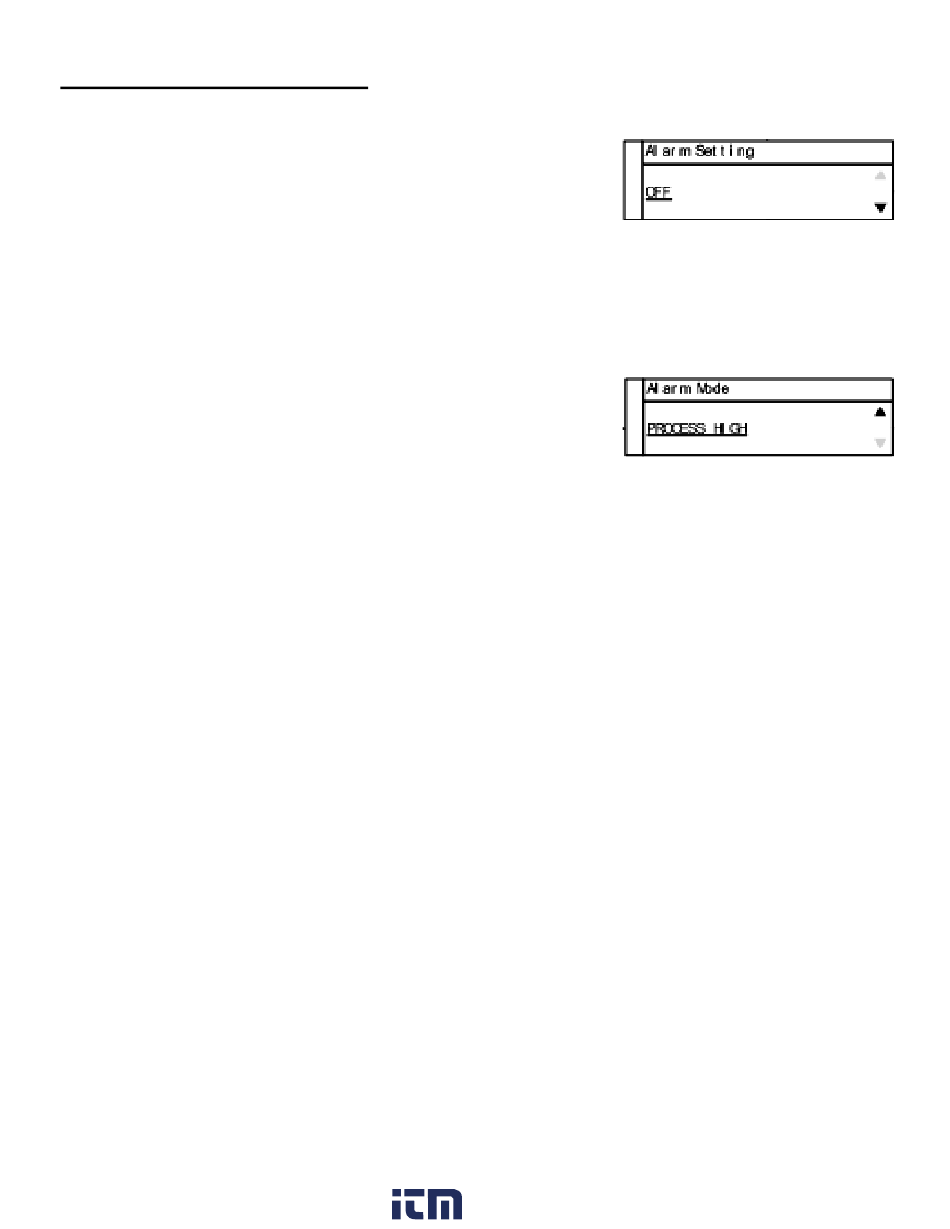

Screen # 4 - Selecting Alarm Setting
Use the UP/DOWN arrow keys to change between

Auto Reset and Manual Reset.
Press MENU key to advance to next screen:

- If Auto Reset or Manual Reset was selected, continue to screen # 5.
- If selection is OFF, skip to screen # 9.
Screen # 5 - Alarm Mode
Use the UP/DOWN arrow keys to select alarm mode.

Selectable alarm modes:

- Process High: The alarm will be activated if the temperature rises above the
user set alarm value.
- Process Low: The alarm will be activated if the process value goes below the
user set alarm value.
- Process High/Low: The alarm will be activated if the temperature goes above or below
a high and low temperature set by user.
- Deviation High: Alarm activation point that changes with the change of the process set
point. Example: The user sets deviation high alarm at 30°C and has a process set point of 100°
C. If
the temperature reaches 130°C the alarm will be activated. The user changes process set point
to 60°C. If process temperature reaches 90°C the alarm will be activated.
- Deviation Low: Alarm activation point that changes with the change of the process set
point.
Example: The user sets the deviation low alarm 30°C and the process set point is 100°C. If
the process temperature is 70°C or less, the alarm will be activated. If the process set point tem-
perature is set at 70°C, then if the process temperature is 40°C or less it will activate the alarm.
- Deviation High/Low: Same as Deviation High and Deviation Low alarms. It has the capa-
bility of having an alarm activate when the set point temperature goes above or below a set point
temperature.
- Deviation Band: Allows the user to set the alarm to be activated within a specified
temperature range.
Press the menu key to advance to screen # 6 after selecting alarm mode.

