Ramp & Soak / Ramp Rate Control Mode Setup - Digi-Sense TC9600 Advanced User Manual

Ramp & Soak Mode Setup:

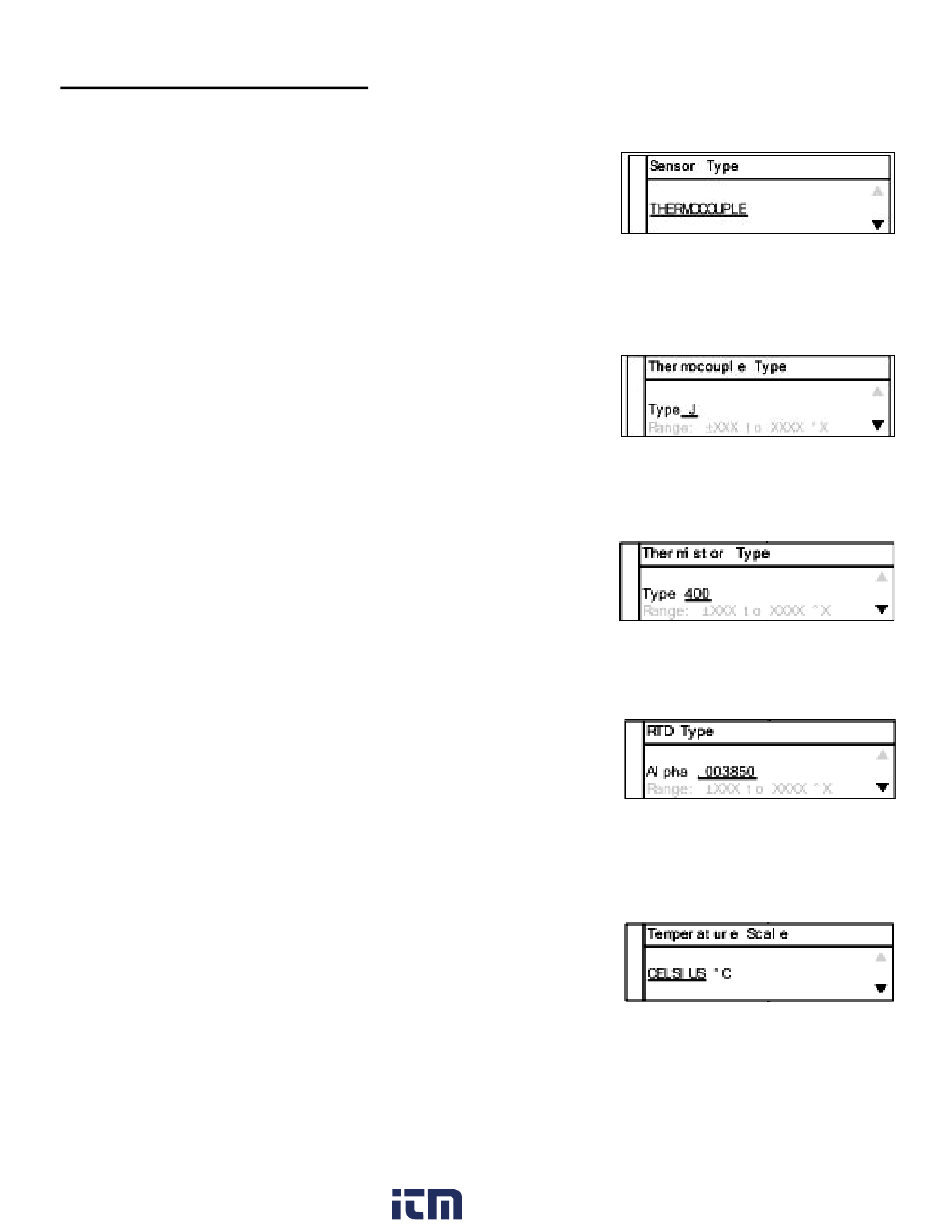

Screen # 1 - Selecting Sensor Type
Press the MENU key one time to select sensor input type.

Use UP/DOWN arrow keys to change sensor type.

Press MENU key when complete.

Screen # 2 - Selecting Sensor Type
If thermocouple is selected on screen # 1:

Use UP/DOWN arrow keys to select the desired

thermocouple type: J, K, N, R, S, T, B, or E.
Press MENU key to advance to screen # 3 after selection has been made.

If thermistor is selected on screen # 1:

Use UP/DOWN arrow keys to select the desired

thermistor type: 400 or 700.
Press MENU key to advance to screen # 3 after selection has been made.

If RTD is selected on screen # 1:

Use UP/DOWN arrow keys to select the desired

RTD type: Alpha 003850, 003850 w/ MgO, or 003916.
Press menu to advance to screen # 3 after selection has been made.

Screen # 3 - Selecting Temperature Scale
Use the UP/DOWN keys to select the desired temperature

scale: Celsius °C, Fahrenheit °F, Kelvin K, Reaumur °Ré,
or Rankine °Ra.
Press MENU key to advance to screen # 4 after selection has been made.

