Piranha4 8k Color Camera User's Manual
be different between the two SapBuffer objects. This can be a trick to convert buffer
format without buffer copy.

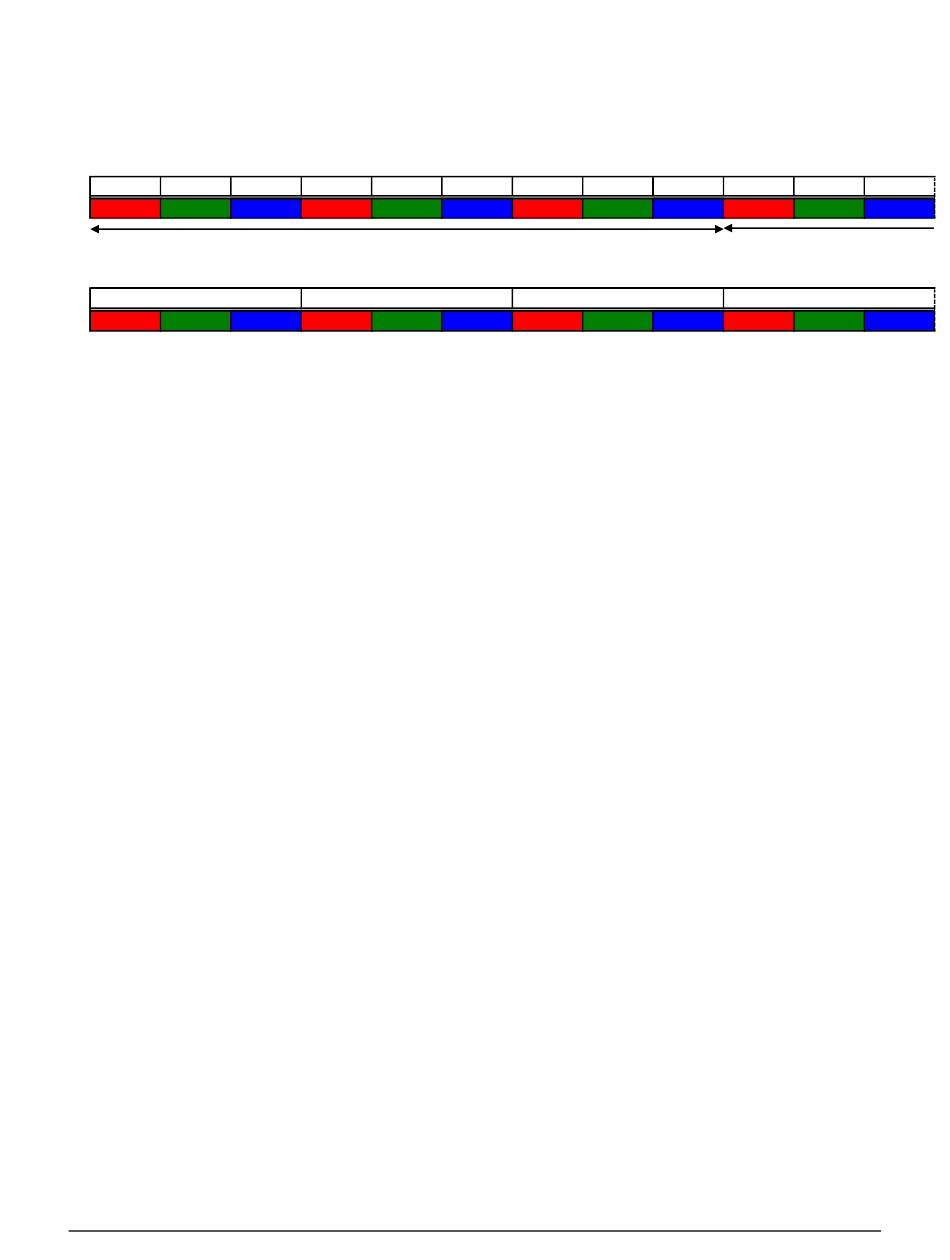

Acquiring the above data as you would an 8-bit mono camera in 10-tap mode creates the
acquisition buffer shown below.
Adr+0 Adr+1 Adr+2
Red1 Green1 Blue1
On the other hand, the SapFormatRGBR888 format is shown below.
Pixe1 (3byte)
Red1 Green1 Blue1
As you demonstrated above, the two buffers' content and their order are exactly same.
Thus, acquiring the buffer as if the camera were a mono 8-bit, 10-tap results in the same
buffer contents as the SapFormatRGBR888.
Sample code:
//Assuming acquisition buffer is declared as below.
#define NUMBUFFERS
SapBuffer *m_Buffers;
m_Buffers = new SapBufferWithTrash(NUMBUFFERS, m_Acq);
// Call Create() for acquisition buffer
m_Buffers->Create();
// Declare SapBuffer object which shares buffer components with the acquisition buffer
SapBuffer *m_ViewBuffers;
int width, height, i;
void* pData[NUMBUFFERS];
for (i=0; i<NUMBUFFERS; i++)
{
m_Buffers->GetAddress(i, &pData[i]);
}
width = m_Buffers->GetWidth();
height = m_Buffers->GetHeight();
m_ViewBuffers = new SapBuffer(NUMBUFFERS, pData, width / 3,
height,SapFormatRGB888);
m_ViewBuffers->Create();
If you declare above m_ViewBuffer as the source buffer of SapView object, you can display
RGB image without any additional processing.
Teledyne DALSA
Adr+3 Adr+4 Adr+5
Red2 Green2 Blue2
First CLK
Pixel2
Red2 Green2 Blue2
10
Adr+6 Adr+7 Adr+8
Red3 Green3 Blue3
Pixel3
Red3 Green3 Blue3
85
Adr+9 Adr+10 Adr+11
Red4 Green4 Blue4
Second CLK
Pixel4
Red4 Green4 Blue4
03-032-20274-00
