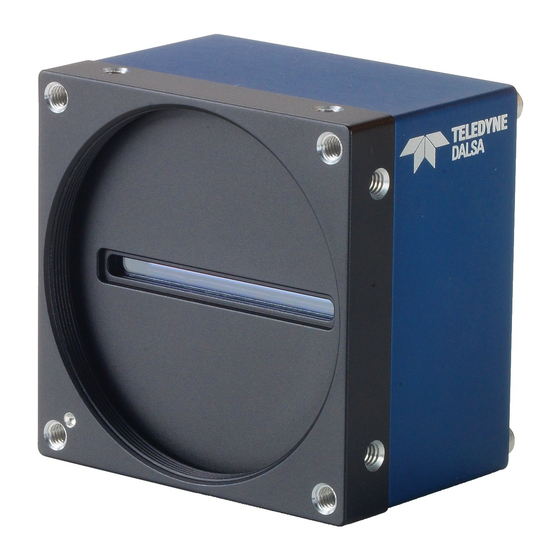

Piranha4 8K Color Camera
User's Manual
P4-CC-08K03T-01-R
sensors | cameras | frame grabbers | processors | software | vision solutions
03-032-20274-02
www.teledynedalsa.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Piranha4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dalsa Piranha4

Summary of Contents for Dalsa Piranha4

  • Page 1 Piranha4 8K Color Camera User’s Manual P4-CC-08K03T-01-R sensors | cameras | frame grabbers | processors | software | vision solutions 03-032-20274-02 www.teledynedalsa.com...
  • Page 2 All information provided in this manual is believed to be accurate and reliable. No responsibility is assumed by Teledyne DALSA for its use. Teledyne DALSA reserves the right to make changes to this information without notice. Reproduction of this manual in whole or in part, by any means, is prohibited without prior permission having been obtained from Teledyne DALSA.

  • Page 3: Table Of Contents

    Contents Tables ___________________________________________________________________________ 6 Figures ___________________________________________________________________________ 6 The Piranha4 Color Camera _____________________________________________________ 8 Camera Highlights __________________________________________________________________ 8 Key Features _____________________________________________________________________________ 8 Programmability __________________________________________________________________________ 8 Applications _____________________________________________________________________________ 8 Part Numbers and Software Requirements ______________________________________________ 9 Specifications _____________________________________________________________________ 9 Camera Performance ______________________________________________________________________ 9...
  • Page 4 Digital I / O Control Category ________________________________________________________ 50 Digital I/O Control Feature Descriptions_______________________________________________________ 50 Flat Field Category ________________________________________________________________ 51 Flat Field Control Feature Description ________________________________________________________ 51 Image Format Category ____________________________________________________________ 53 Image Format Control Feature Description ____________________________________________________ 53 4 • Contents Piranha4 8K Color Camera User's Manual...
  • Page 5 Cleaning the Sensor Window _______________________________________________________________ 82 EC & FCC Declaration _________________________________________________________ 83 Standard Conformity ______________________________________________________________ 83 CE Conformity ____________________________________________________________________ 83 FCC Conformity ___________________________________________________________________ 83 Revision History _____________________________________________________________ 84 Contact Information __________________________________________________________ 85 Sales Information _________________________________________________________________ 85 Piranha4 8K Color Camera User's Manual Contents • 5...

  • Page 6: Tables

    Figure 21: Camera I / O Connectors ______________________________________________________________ 40 Figure 22. SDR26 Camera Link Connector__________________________________________________________ 40 Figure 23: 6-pin Hirose Circular Male Power Plug—Power Connector ____________________________________ 42 Figure 24 Example CamExpert Camera Information Panel _____________________________________________ 44 6 • Contents Piranha4 8K Color Camera User's Manual...
  • Page 7 Figure 34: Sapera Configuration COM Port Mapping _________________________________________________ 61 Figure 35: Serial DLL hierarchy as mentioned in the Camera Link Specification _____________________________ 62 Figure 36: Camera Link Deca Mode Port Assignment _________________________________________________ 76 Piranha4 8K Color Camera User's Manual Contents • 7...

  • Page 8: The Piranha4 Color Camera

    8k trilinear color cameras provide outstanding signal-to-noise performance for high speed imaging. The Piranha4 8k model has 8k resolution with a 7.5 µm x 7.5 µm pixel size for optimized optical design. The cameras deliver a maximum line rate of 33 kHz.

  • Page 9: Part Numbers And Software Requirements

    • Figures in DN are for a 8-bits format • Measured at line period = 200 µs in Ext Trig Mode (Max Exposure Time) • Maximum data rate Piranha4 8K Color Camera User's Manual The Piranha4 Color Camera • 9...

  • Page 10: Camera Characterization

    15% to 85% relative, non-condensing MTBF (mean time between failures) >100,000 hours, typical field operation Certifications Table 6: Camera Certification & Compliance Compliance Refer to the section EC & FCC Declaration. 10 • The Piranha4 Color Camera Piranha4 8K Color Camera User's Manual...

  • Page 11: Flash Memory Size

    GenApi module of the GenICam specification. The camera uses the GenICam Generic Control Protocol (GenCP V1.0) to communicate over the Camera Link HS command lane. For more information see www.genicam.org. Piranha4 8K Color Camera User's Manual The Piranha4 Color Camera • 11...

  • Page 12: Sensor Responsivity And Qe

    TDI Mode. Responsivity 1200000 row 27 row 28 row 29 1000000 800000 600000 400000 200000 wavelength [nm] Figure 1: Trilinear Spectral Responsivity 12 • The Piranha4 Color Camera Piranha4 8K Color Camera User's Manual...

  • Page 13: Quantum Efficiency

    To prevent infrared from distorting the images you scan, use an IR cut off filter such as a BG-38 on the lens. Piranha4 8K Color Camera User's Manual The Piranha4 Color Camera • 13...

  • Page 14: Precautions

    Recommended System Requirements To achieve best system performance, the following minimum requirements are recommended: • High bandwidth frame grabber. For example, Teledyne DALSA Xtium-CL MX4 series frame grabbers: http://www.teledynedalsa.com/en/products/imaging/frame-grabbers/xtium-cl-mx4/ • Operating systems: Refer to frame grabber documentation for supported platforms.

  • Page 15: Quick Setup And Image Acquisition

    KHz line rate. The camera will run at up to a 33 KHz line rate using Camera Link Deca mode, but it may be easier to start your evaluation using the medium mode. Set your Camera Link frame grabber up to receive the standard RGB medium mode. Piranha4 8K Color Camera User's Manual Quick Setup and Image Acquisition • 15...

  • Page 16: Setup Steps: Overview

    Setup Steps: Overview Step 1: Install and Configure Frame Grabber and Software Teledyne DALSA recommends its Xtium-CL MX4 series frame grabbers or equivalent. Follow the manufacturer’s installation instructions. Note: By default, Camera Link mode is set to the standard 8-bit full mode which allows operation of up to 80 kHz (2k, 4k, 8k) or 48 kHz (16k) line rate.

  • Page 17: Step 3: Establish Communication With The Camera

    CamExpert will search for installed Sapera devices. In the Devices list area on the left side, the connected frame grabber will be shown; select the required Camera Link configuration (for example, CameraLink Medium Color RGB). Figure 3:CamExpert Device List Piranha4 8K Color Camera User's Manual Quick Setup and Image Acquisition • 17...

  • Page 18: Figure 4: Camexpert Camera And Board Parameters

    Test the image acquisition by clicking the Grab button (an internally generated test pattern can be used). Figure 5: CamExpert Grab Button Save the frame grabber configuration to a new *.ccf file. 18 • Quick Setup and Image Acquisition Piranha4 8K Color Camera User's Manual...

  • Page 19: Using Sapera Camexpert

    The examples shown are for illustrative purposes and may not entirely reflect the features and parameters available from the camera model used in your application. Piranha4 8K Color Camera User's Manual Quick Setup and Image Acquisition • 19...

  • Page 20: Camexpert Panes

    Display pane: Provides a live or single frame acquisition display. Frame buffer parameters are shown in an information bar above the image window. 20 • Quick Setup and Image Acquisition Piranha4 8K Color Camera User's Manual...
  • Page 21 Select to view a histogram or line/column profile during live acquisition or in a still image. Output Message Pane: Displays messages from CamExpert or the device driver. Piranha4 8K Color Camera User's Manual Quick Setup and Image Acquisition • 21...

  • Page 22: Camera Operation

    The default setting for this feature is 2, which is set for square object pixels. The setting can be adjusted from 0 to 5 to compensate for rectangular pixels—whether they are too long or too short. 22 • Camera Operation Piranha4 8K Color Camera User's Manual...

  • Page 23: Figure 8: Spatial Correction Example 1

    Target running slower than example 1, same EXSYNC (trigger) frequency Figure 9: Spatial Correction Example 2 Example 3 Target running faster than example 1, same EXSYNC (trigger) frequency Figure 10: Spatial Correction Example 3 Piranha4 8K Color Camera User's Manual Camera Operation • 23...

  • Page 24: Parallax Correction

    The value entered here must be between -4 and 4 (pixels) by step of 0.1 (pixel). Figure 12: CamExpert Parallax Correction Controls Figure 13: Corrected Image The figure above is the same image corrected using the parallax correction. 24 • Camera Operation Piranha4 8K Color Camera User's Manual...

  • Page 25: Check Camera And Sensor Information

    The Camera Link configuration determines the tap output of the camera, the number of cables required and the maximum line rates. Table 8: Camera Link Configuration Details Name Taps Bits per pixel Cables Base Medium Full Deca Piranha4 8K Color Camera User's Manual Camera Operation • 25...

  • Page 26: Trigger Modes

    The camera can grab images in one of four ways. The imaging mode is set using a combination of the ExposureMode, TriggerMode, ExposureTime AcquisitionLineRate parameters. 26 • Camera Operation Piranha4 8K Color Camera User's Manual...

  • Page 27: Exposure Modes In Detail

    Note: The camera will not set line periods shorter than the readout period. GenICam Parameter Settings Digital IO Controls: TriggerMode = Off Camera Control: ExposureMode = Maximum Piranha4 8K Color Camera User's Manual Camera Operation • 27...
  • Page 28 Free running, not synchronized to an external signal External Trigger Off, Internal Exposure Control Free running, not synchronized to an external signal External Trigger On, Maximum exposure CC1 rising edge triggers start of internal exposure 28 • Camera Operation Piranha4 8K Color Camera User's Manual...

  • Page 29: Line Rate

    33 kHz. Though no image artifacts associated with over-speed will occur, you may notice that under over-speed conditions the image will appear compressed and the apparent distance travelled will be reduced. Piranha4 8K Color Camera User's Manual Camera Operation • 29...

  • Page 30: Maximum Line Rates

    Typical use is to subtract the minimum pixel value expected and then gain up to the maximum pixel value to approach full scale. This process may be useful for applications that process the RGB colors individually. 30 • Camera Operation Piranha4 8K Color Camera User's Manual...

  • Page 31: Calibrating The Camera

    Each element shown, with the exception of color interpolation, is user programmable. Input XXXX Output Image XXXX Image XXXX White Color Calibrate Calibrate Offset Gain Balancing Correction PRNU Figure 14: Camera Calibration Process. Piranha4 8K Color Camera User's Manual Camera Operation • 31...

  • Page 32: Calibration

    To do so: • disable FPN, PRNU and color correction coefficients • set white balance red, green and blue gains to one • set system gain to one. 32 • Camera Operation Piranha4 8K Color Camera User's Manual...
  • Page 33 For the color correction to be effective, the camera should have a white balanced output when color correction is off. Note: An application note describing a color transformation matrix calibration (document #03-032-20181) is available. Please contact Teledyne DALSA Support for more information. Piranha4 8K Color Camera User's Manual...

  • Page 34: Internal Test Pattern Generator

    Relevant Features: TestImageSelector The Piranha4 camera includes a number of internal test patterns which easily confirm camera installations, without the need for a camera lens or proper lighting. Use CamExpert to easily enable and select the any of the test patterns from the drop menu while the camera is not in acquisition mode.

  • Page 35: Scan Direction

    “upside down”. Note: The example here assumes the use of a lens (which inverts the image). Figure 17: Object Movement and Camera Direction Example, with a Lens Piranha4 8K Color Camera User's Manual Camera Operation • 35...

  • Page 36: Pixel Readout Direction (Mirroring Mode)

    Power-up configuration dialog accessed from the Camera Information category). The set selected is selected as the default setting and is the set that is loaded and becomes active when the camera is reset or powered up. 36 • Camera Operation Piranha4 8K Color Camera User's Manual...

  • Page 37: Figure 19. Relationship Between The Camera Settings

    The camera automatically restores the user set configured as the default set when it powers up. To restore a saved user set, set the user set selector to the set you want to restore and then select the user set load parameter. Piranha4 8K Color Camera User's Manual Camera Operation • 37...

  • Page 38: Resetting The Camera

    Supported baud rates range from 9600 (default) to 115200. The following serial port settings are used: • 9600 baud (default) • 8 data bits • no parity • 1 stop bit • no flow control 38 • Camera Operation Piranha4 8K Color Camera User's Manual...

  • Page 39: Technical Specifications

    Technical Specifications Mechanical Drawing Figure 20: P4-CC-08K03T-01-R Mechanical Drawing Piranha4 8K Color Camera User's Manual Technical Specifications • 39...

  • Page 40: Input / Output Connectors And Led

    Channel Link Connector Frame Grabber Signal Connector Frame Grabber Signal Connector Connector inner shield inner shield inner shield inner shield Yclk- Xclk- Yclk+ Xclk+ 100 ohm SerTC+ terminated SerTC- SerTFG- SerTFG+ 40 • Technical Specifications Piranha4 8K Color Camera User's Manual...

  • Page 41: Camera Link Bit Definitions

    Note: The EXSYNC signal is measured at CC1 and will give a “true” measurement (that is, within the measurement resolution of 25 ns) even though the camera will only trigger at a maximum of 33 KHz. Piranha4 8K Color Camera User's Manual Technical Specifications • 41...

  • Page 42: Output Signals, Camera Link Clocking Signals

    Figure 23: 6-pin Hirose Circular Male Power Plug—Power Connector Table 16. Power Plug Pinout Description Description +12 V to +24 V DC +12 V to +24 V DC +12 V to +24 V DC 42 • Technical Specifications Piranha4 8K Color Camera User's Manual...

  • Page 43: Status Led

    LED states. When more than one condition is active, the LED indicates the condition with the highest priority. Table 17. Status LED States Status LED Color Meaning No power or hardware malfunction Blinking Green Powering up or calibrating Green Ready Error Piranha4 8K Color Camera User's Manual Technical Specifications • 43...

  • Page 44: Appendix A: Genicam Commands

    CamExpert interface or equivalent GUI. The following feature tables describe these parameters along with their view attributes. Additionally the View column will indicate which parameter is a member of the DALSA Features Naming Convention (using the tag DFNC), versus the GenICam Standard Features Naming Convention (SFNC tag not shown).

  • Page 45: Camera Information Feature Descriptions

    UserSet3 UserSet3 Select the User-defined Configuration space UserSet3 to save to or load from features settings previously saved by the user. Piranha4 8K Color Camera User's Manual Appendix A: GenICam Commands • 45...

  • Page 46: Camera Power-Up Configuration Selection Dialog

    Factory Set and click Load. To save a current camera configuration, select User Set 1 to 16 and click Save. Select a saved user set and click Load to restore a saved configuration. 46 • Appendix A: GenICam Commands Piranha4 8K Color Camera User's Manual...

  • Page 47: Camera Control Category

    TriggerMode is On The exposure starts after Line Start event when TriggerMode is Off. Maximum Maximum Exposure time automatically adjusted to maximum value for current AcquisitionLineRate. Piranha4 8K Color Camera User's Manual Appendix A: GenICam Commands • 47...
  • Page 48 Color Correction Matrix set neutral (diagonal matrix, no correction) User1 User1 User programmable/loaded correction matrix User2 User2 User programmable/loaded correction matrix User3 User3 User programmable/loaded correction matrix User4 User4 User programmable/loaded correction matrix 48 • Appendix A: GenICam Commands Piranha4 8K Color Camera User's Manual...
  • Page 49 Value entered indicates the number pixels to Image Distorition Beginner PixelStretch be shifted to correct the color alignment Parallax Correction DFNC between -4.0 to +4.0 by step of 0.1 Pixel Stretch Piranha4 8K Color Camera User's Manual Appendix A: GenICam Commands • 49...

  • Page 50: Digital I / O Control Category

    1 if no trigger identified for more than 1 second. DFNC Status trigger too fast StatusTriggerTooFast Bit1 of Hardware status: Beginner 1 if missed triggers identified (trigger running too DFNC fast for camera). 50 • Appendix A: GenICam Commands Piranha4 8K Color Camera User's Manual...

  • Page 51: Flat Field Category

    (RO) Average Average Average line pixel value Calibration Sample Size flatfieldCalibrationSampleSize The number of lines to be averaged during a Beginner flat field calibration: 1024. (RO) DFNC Piranha4 8K Color Camera User's Manual Appendix A: GenICam Commands • 51...
  • Page 52 1: Underflow during FFC Status warning FFC or StatusWarningFfcOrBalanceOvf Status register after FFC calculation. (RO) Expert balance overflow DFNC 0: No overflow during FFC 1: Overflow during FFC 52 • Appendix A: GenICam Commands Piranha4 8K Color Camera User's Manual...

  • Page 53: Image Format Category

    Beginner MaxWidth Width The maximum horizontal dimension of the image, in pixels. Beginner (RO) Height Height Height of the image provided by the device, in lines. (RO) Beginner Piranha4 8K Color Camera User's Manual Appendix A: GenICam Commands • 53...

  • Page 54: Transport Layer Control Category

    Geometry_1X3 Geometry_1X3 Three taps, interleaved (Base configuration). Geometry_1X6 Geometry_1X6 Six taps, interleaved (Medium configuration) Geometry_1X8 Geometry_1X8 Eight taps, interleaved (Full configuration). Geometry_1X10 Geometry_1X10 Ten taps, interleaved (Deca configuration). 54 • Appendix A: GenICam Commands Piranha4 8K Color Camera User's Manual...

  • Page 55: Serial Port Category

    Sets the parity checking type on the selected serial port.(RO) None None Parity checking is disabled Beginner Stop Bits deviceSerialPortNumberOfStopBits Sets the number of stop bits to use. One Use 1 stop bit Piranha4 8K Color Camera User's Manual Appendix A: GenICam Commands • 55...

  • Page 56: File Access Control Category

    Execute the selected file. File Open Mode FileOpenMode Selects the access mode used to open a file on the device. Guru Read Read Select READ only open mode 56 • Appendix A: GenICam Commands Piranha4 8K Color Camera User's Manual...
  • Page 57 For Read or Write operations, the number of successfully Guru Result read/written bytes is returned. (RO) File Size FileSize Represents the size of the selected file in bytes. Guru Piranha4 8K Color Camera User's Manual Appendix A: GenICam Commands • 57...

  • Page 58: File Access Via The Camexpert Tool

    Note: firmware changes require that the camera be powered down and then back up. Additionally, CamExpert should be shut down and restarted following a reset. Caution: Do not interrupt the file transfer by powering down the camera or closing CamExpert. 58 • Appendix A: GenICam Commands Piranha4 8K Color Camera User's Manual...

  • Page 59: File Transfer Protocol

    Set the FileOperationSelector to Close • Close the file by setting FileOperationExecute to 1 and poll until 0 and complete • Read FileOperationStatus to confirm the close worked Piranha4 8K Color Camera User's Manual Appendix A: GenICam Commands • 59...

  • Page 60: Upload File To Camera

    Set the FileOperationSelector to Close • Close the file by setting FileOperationExecute to 1 and poll until 0 and complete • Read FileOperationStatus to confirm the close worked 60 • Appendix A: GenICam Commands Piranha4 8K Color Camera User's Manual...

  • Page 61: Appendix B: Ascii Commands

    To use three-letter text commands via a terminal program (such as HyperTerminal), map the frame grabber serial port to an availailable COM port (for example, COM port). For Teledyne DALSA frame grabbers, to do so: • Run the Sapera Configuration utility and select the frame grabber serial port connected to the camera.

  • Page 62: Accessing The Three Letter Commands (Tlc)

    HyperTerminal will be ignored until a stable LED color is obtained. 4. In case of HyperTerminal, press the <ESC> key. 5. Once <ESC> has been entered, press <Return> key and the help screen appears. 62 • Appendix B: ASCII Commands Piranha4 8K Color Camera User's Manual...

  • Page 63: Notes On Using Alternatives To Hyperterminal

    • Error codes returned are the same as the GenICam™ interface – see Diagnostics | Error Codes • Follow each command with the carriage return character – 0x0D Piranha4 8K Color Camera User's Manual Appendix B: ASCII Commands • 63...

  • Page 64: Commands

    Calibrate user PRNU flat field coefficients Notes • Coefficients are saved and loaded with user set (e.g. uss / usl) • Algorithm flattens each color and uses gains to even pixel response 64 • Appendix B: ASCII Commands Piranha4 8K Color Camera User's Manual...
  • Page 65 0. Disable use of user FPN and PRNU flat field correction coefficients 1. Enable use of user FPN and PRNU flat field correction coefficients Description Set flat field mode Notes Piranha4 8K Color Camera User's Manual Appendix B: ASCII Commands • 65...
  • Page 66 Camera Link Mode 0: Base 1: Med 2: Full 3: Deca Calibrate Flatfield 0: calibration complete Color Transformation Value fixed point values (2exp-6) 18lines Color correction matrix gains 0 49 66 • Appendix B: ASCII Commands Piranha4 8K Color Camera User's Manual...
  • Page 67 5: grey vertical ramp Default User Set Set number 0-4 Load User Set Last set loaded 0-4 Save User Set Last set saved 0-4 Temperature returns camera internal temperature Piranha4 8K Color Camera User's Manual Appendix B: ASCII Commands • 67...
  • Page 68 Set selector 0.Factory set 1-4. User sets Description Load user set Notes Loads FPN coefficients and PRNU coefficients from a user set ( only coefficeints, no other camera parameters). 68 • Appendix B: ASCII Commands Piranha4 8K Color Camera User's Manual...
  • Page 69 Description Set exposure time mode Notes • In internal mode the exposure time is controlled by the SET command • SEM 1 overrides internally generated independent exposure times Piranha4 8K Color Camera User's Manual Appendix B: ASCII Commands • 69...
  • Page 70 0. Off 1. Image is flipped on the vertical axis Description Set mirroring mode Notes Full Name Pixel Format Mnemonic Argument(s) Selector RGB8 Description Set pixel format Notes 70 • Appendix B: ASCII Commands Piranha4 8K Color Camera User's Manual...
  • Page 71 1. On Description Set trigger mode Notes • When off, line rate is controlled by ssf command • When on, integration starts on rising edge of CC1 signal Piranha4 8K Color Camera User's Manual Appendix B: ASCII Commands • 71...
  • Page 72 Description Save user set Notes • Saves all the current settings listed by the GCP command plus the user FPN coefficients, user PRNU coefficients, and color correction matrix 72 • Appendix B: ASCII Commands Piranha4 8K Color Camera User's Manual...
  • Page 73 Full Name Temperature Mnemonic Argument(s) Description Display internal temperature in degrees Celsius Notes Piranha4 8K Color Camera User's Manual Appendix B: ASCII Commands • 73...

  • Page 74: Appendix C: Evaluation Setup & Configuration

    When you have a suitable response, you can now focus the lens. If you are using white LEDs, your image will have reasonable color reproduction if you enter the provided WhiteLED color matrix. 74 • Appendix C: Evaluation Setup & Configuration Piranha4 8K Color Camera User's Manual...
  • Page 75 You will require a Gretag Macbeth ColorChecker with 4 x 6 color elements that you can scan past the camera to complete the generation of the matrix. Contact Teledyne DALSA’s technical support for further details. Piranha4 8K Color Camera User's Manual Appendix C: Evaluation Setup & Configuration •...

  • Page 76: Appendix D: Color Deca And Full Mode Acquisition

    Full Mode Acquisition Overview This section describes how to acquire images with the Piranha4 color camera under RGB 9.1 Deca mode to achieve a 68.5 KHz line rate, and under RGB 6.2 Full mode to achieve a 55 KHz line rate.
  • Page 77 As demonstrated above, the two buffers’ content and their order are exactly same. Thus, acquiring the buffer as if the camera were a mono 8-bit, 10-tap results in the same buffer contents as the SapFormatRGBR888. Piranha4 8K Color Camera User's Manual Appendix D: Color Deca and Full Mode Acquisition • 77...
  • Page 78 SapBuffer(NUMBUFFERS, pData, width / 3, height, SapFormatRGB888); m_ViewBuffers->Create(); If you declare above m_ViewBuffer as the source buffer of SapView object, you can display RGB image without any additional processing. 78 • Appendix D: Color Deca and Full Mode Acquisition Piranha4 8K Color Camera User's Manual...

  • Page 79: Appendix E: Error And Warning Messages

    Underflow occurred during FFC calibration Bit 10 Calibration error Bit 11 CC3 scrolling direction (0: Fwd, 1: Rev) Bit 15 Initialization in progress Bit 16 Hardware error detected Piranha4 8K Color Camera User's Manual Appendix E: Error and Warning Messages • 79...

  • Page 80: Gencp Error Codes

    CCD and SCD fields but not the command payload. 0x800F GENCP_WRONG_CONFIG The current receiver configuration does not allow the execution of the sent command. 0x8FFF GENCP_ERROR Generic error. 80 • Appendix E: Error and Warning Messages Piranha4 8K Color Camera User's Manual...

  • Page 81: Appendix F: The Sensor Window

    (dark spot) and overcorrecting where the shadow used to be (white spot). While the dark spot can be potentially cleaned, the white spot is an FFC artifact that can only be corrected by another FFC calibration. Piranha4 8K Color Camera User's Manual Appendix F: The Sensor Window • 81...

  • Page 82: Cleaning The Sensor Window

    This procedure requires you to use multiple swabs. • Discard the swab after both sides of the swab have been used once. • Repeat until there is no visible contamination present. 82 • Appendix F: The Sensor Window Piranha4 8K Color Camera User's Manual...

  • Page 83: Ec & Fcc Declaration

    • A Camera Link data transfer cable ref. MVC-1-1-5-2M from CEI (Component Express, Inc.) • Teledyne DALSA recommends using the same configuration to ensure the compliance with the following standards: CE Conformity The cameras comply with the requirements of the EMC (European) directive 2004/108/EC (EN50081-2, EN 61000-6-2).

  • Page 84: Revision History

    White Balance: the calibration process considers the 128 pixels on the left of the sensor. WhiteBalanceAdjustTarget must be greater than all channel average value. Spatial correction updates: algorithm consistent with legacy DALSA linescan cameras. Figure 7: changed for P4-CC-08K03T-01-R skeleton & changed forward/reverse arrows Exposure mode corrections: rising edge of EXSYNC, 30µs delay instead of...

  • Page 85: Contact Information

    Submit any support question or request via our web site: Technical support form via our web page: Support requests for imaging product installations, Support requests for imaging applications http://www.teledynedalsa.com/mv/support Camera support information Product literature and driver updates Piranha4 8K Color Camera User's Manual Contact Information • 85...

This manual is also suitable for:
