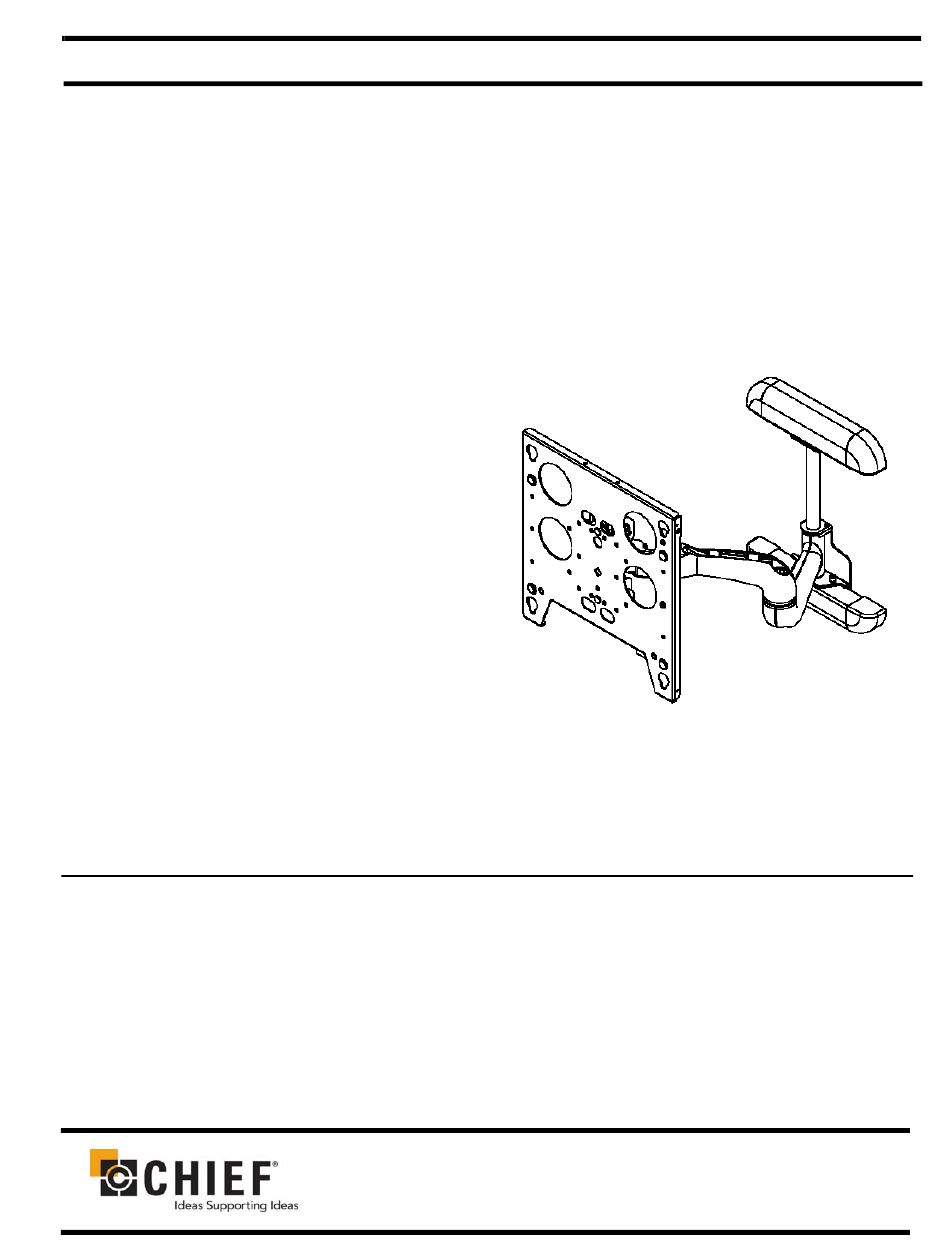

I N S T A L L A T I O N I N S T R U C T I O N S
Midsized Flat Panel
Single Arm Wall Mount
Model MSP-SPWH (PWH
The MSP-SPWH is wall-mounted, rugged, versatile, and
installer-friendly. The mount is compatible with the PSB-
2095 interface bracket in which a display can be mounted
in either the landscape or portrait position.
The single arm on the mount:
•
Extends from the wall 24-7/8" in length
•
Pivots up to 90º left or right of center
The standard mount is shipped with the support post for
the single arm centered in the mount. The tilt range for
the display is 5º up and 15º down.
The mount was designed for fast installation. After
drawing the plumb line and drilling pilot holes into a single
wall stud, the installer installs the mount on the wall using
lag bolts and washers.
Next, the installer mounts the display and connects the
power/audio/video cables, which are diverted into the
built-in path in the flexible swing arm. After making the
lateral, rotational, and tilt adjustments, the installation
process is complete.
BEFORE YOU BEGIN
CAUTION: To prevent damage to the mount, which could affect or void the Factory warranty, and to the equipment
that will be attached to it, thoroughly study all instructions and illustrations before you begin the installation. Pay
particular attention to the "Important Warnings and Cautions" on Page 2.
•
The combined weight of the components installed on the mount must not exceed 100 lbs. (45.36kg).
•
The wall mount must be installed on a single wall stud or supporting framework. The wall to which the mount is
anchored must be capable of supporting five times the total weight of the mount and all attached equipment.
•
If you have any questions about this installation, contact Chief Manufacturing at 1-800-582-6480.
CHIEF MANUFACTURING INC.
1-800-582-6480 952-894-6280 FAX 952-894-6918
8401 EAGLE CREEK PARKWAY, STE 700
SAVAGE, MINNESOTA 55378 USA
)
™
PART NO. 8832-000096 (Rev. B)
©2005 Chief Manufacturing
www.chiefmfg.com
Printed in USA 09/05
