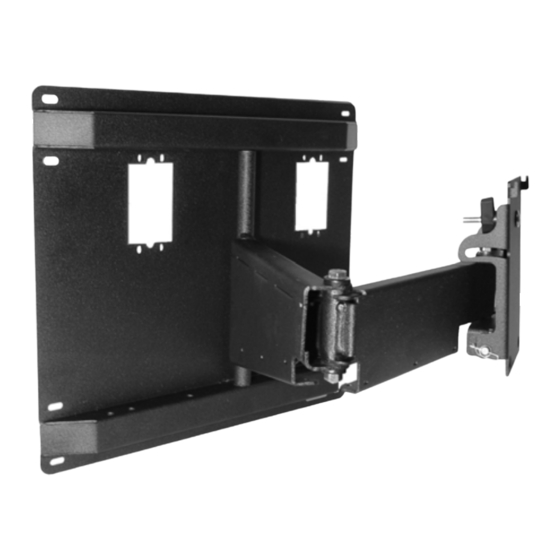

Plasma wall swing-out wall mount

Advertisement

Quick Links

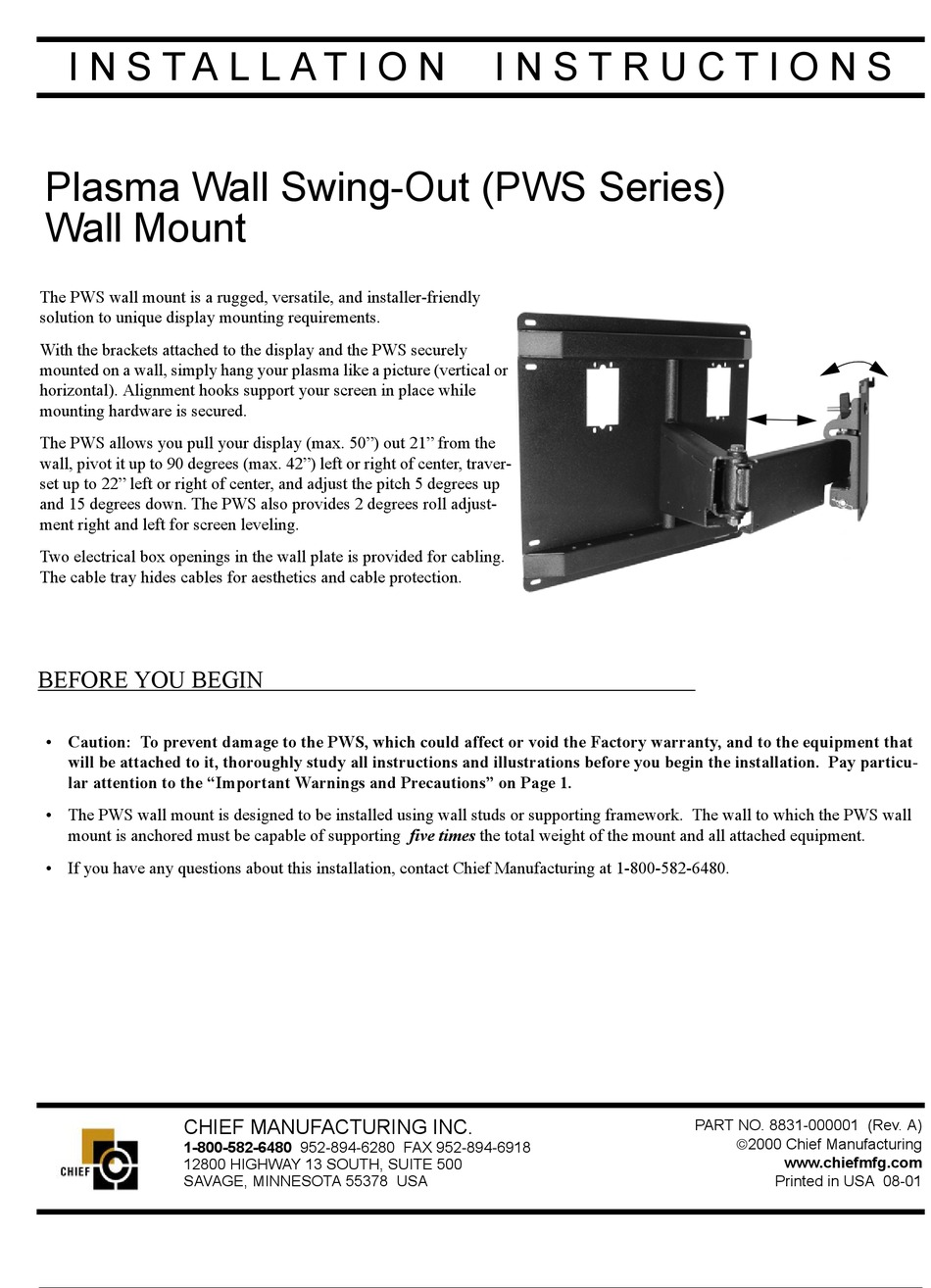

I N S T A L L A T I O N
Plasma Wall Swing-Out (PWS Series)
Wall Mount
The PWS wall mount is a rugged, versatile, and installer-friendly
solution to unique display mounting requirements.
With the brackets attached to the display and the PWS securely
mounted on a wall, simply hang your plasma like a picture (vertical or
horizontal). Alignment hooks support your screen in place while
mounting hardware is secured.
The PWS allows you pull your display (max. 50") out 21" from the
wall, pivot it up to 90 degrees (max. 42") left or right of center, traver-
set up to 22" left or right of center, and adjust the pitch 5 degrees up
and 15 degrees down. The PWS also provides 2 degrees roll adjust-
ment right and left for screen leveling.
Two electrical box openings in the wall plate is provided for cabling.
The cable tray hides cables for aesthetics and cable protection.
BEFORE YOU BEGIN
• Caution: To prevent damage to the PWS, which could affect or void the Factory warranty, and to the equipment that
will be attached to it, thoroughly study all instructions and illustrations before you begin the installation. Pay particu-
lar attention to the "Important Warnings and Precautions" on Page 1.
• The PWS wall mount is designed to be installed using wall studs or supporting framework. The wall to which the PWS wall
mount is anchored must be capable of supporting five times the total weight of the mount and all attached equipment.
• If you have any questions about this installation, contact Chief Manufacturing at 1-800-582-6480.
CHIEF MANUFACTURING INC.
1-800-582-6480 952-894-6280 FAX 952-894-6918
12800 HIGHWAY 13 SOUTH, SUITE 500
SAVAGE, MINNESOTA 55378 USA
I N S T R U C T I O N S
PART NO. 8831-000001 (Rev. A)
2000 Chief Manufacturing
www.chiefmfg.com
Printed in USA 08-01
