CHIEF PAC717 Installation Instructions Manual

Literature shelf

Advertisement

Quick Links

I N S T A L L A T I O N I N S T R U C T I O N S
Instrucciones de instalación
Installationsanleitung
Instruções de Instalação
Istruzioni di installazione
Installatie-instructies
Instructions d´installation
Literature Shelf
Spanish Product Description
German Product Description
Portuguese Product Description
Italian Product Description
Dutch Product Description
French Product Description

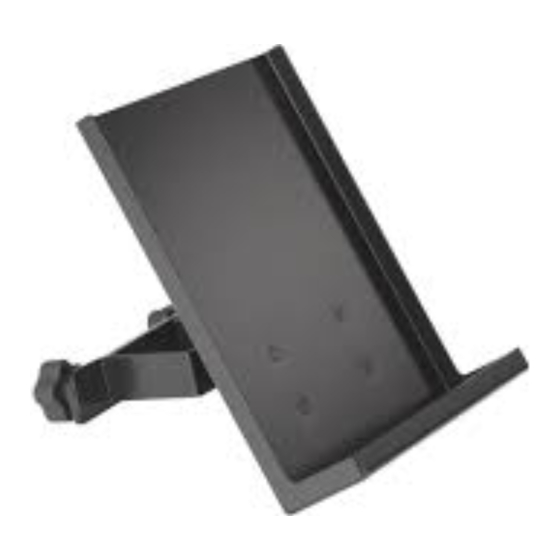

PAC717

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PAC717 and is the answer not in the manual?

Questions and answers

Summary of Contents for CHIEF PAC717

  • Page 1 I N S T A L L A T I O N I N S T R U C T I O N S Instrucciones de instalación Istruzioni di installazione Installationsanleitung Installatie-instructies Instruções de Instalação Instructions d´installation Literature Shelf Spanish Product Description German Product Description Portuguese Product Description Italian Product Description Dutch Product Description French Product Description PAC717...
  • Page 2 A WARNING alerts you to the possibility of installer’s responsibility to make sure the combined weight of serious injury or death if you do not follow the instructions. all literature and accessories mounted on the PAC717 does not exceed 25 lbs (11.34 kg). DIMENSIONS 314.7...
  • Page 3 Installation Instructions PAC717 LEGEND Tighten Fastener Pencil Mark Apretar elemento de fijación Marcar con lápiz Befestigungsteil festziehen Stiftmarkierung Apertar fixador Marcar com lápis Serrare il fissaggio Segno a matita Bevestiging vastdraaien Potloodmerkteken Serrez les fixations Marquage au crayon Loosen Fastener Drill Hole Aflojar elemento de fijación...
  • Page 4 PAC717 Installation Instructions TOOLS REQUIRED FOR INSTALLATION 1/2" (12.7mm) PARTS C(2) [5/16-18 knob] B(1) A(1) [Shelf column mount] [Literature tray] E(4) 3/8" D(1) [Shelf bracket]...
  • Page 5: Assembly And Installation

    Installation Instructions PAC717 Assembly And Installation Attach Literature Tray to Cart/Stand Loosen back bracket (D) by turning both knobs Assemble Literature Tray counterclockwise. Do NOT remove knobs. (See Figure 3) Place shelf column mount (B) over bolts on back of literature tray (A).
  • Page 6 PAC717 Installation Instructions (C) x 2 Knobs shown removed for viewing purposes only Figure 5 Figure 7 Position shelf column mount (B) around lower extrusion of cart/stand at desired mounting height. (See Figure 6) Let the bracket drop down and hang from the shelf’s left stud.
  • Page 7 Installation Instructions PAC717 (C) x 2 Figure 9...
  • Page 8 Europe A Fellenoord 130 5611 ZB EINDHOVEN, The Netherlands P +31 (0)40 2668620 F +31 (0)40 2668615 Chief Manufacturing, a products division Asia Pacific A Room 24F, Block D, Lily YinDu International Building of Milestone AV Technologies LuoGang, BuJi Town, Shenzhen, CHINA.
