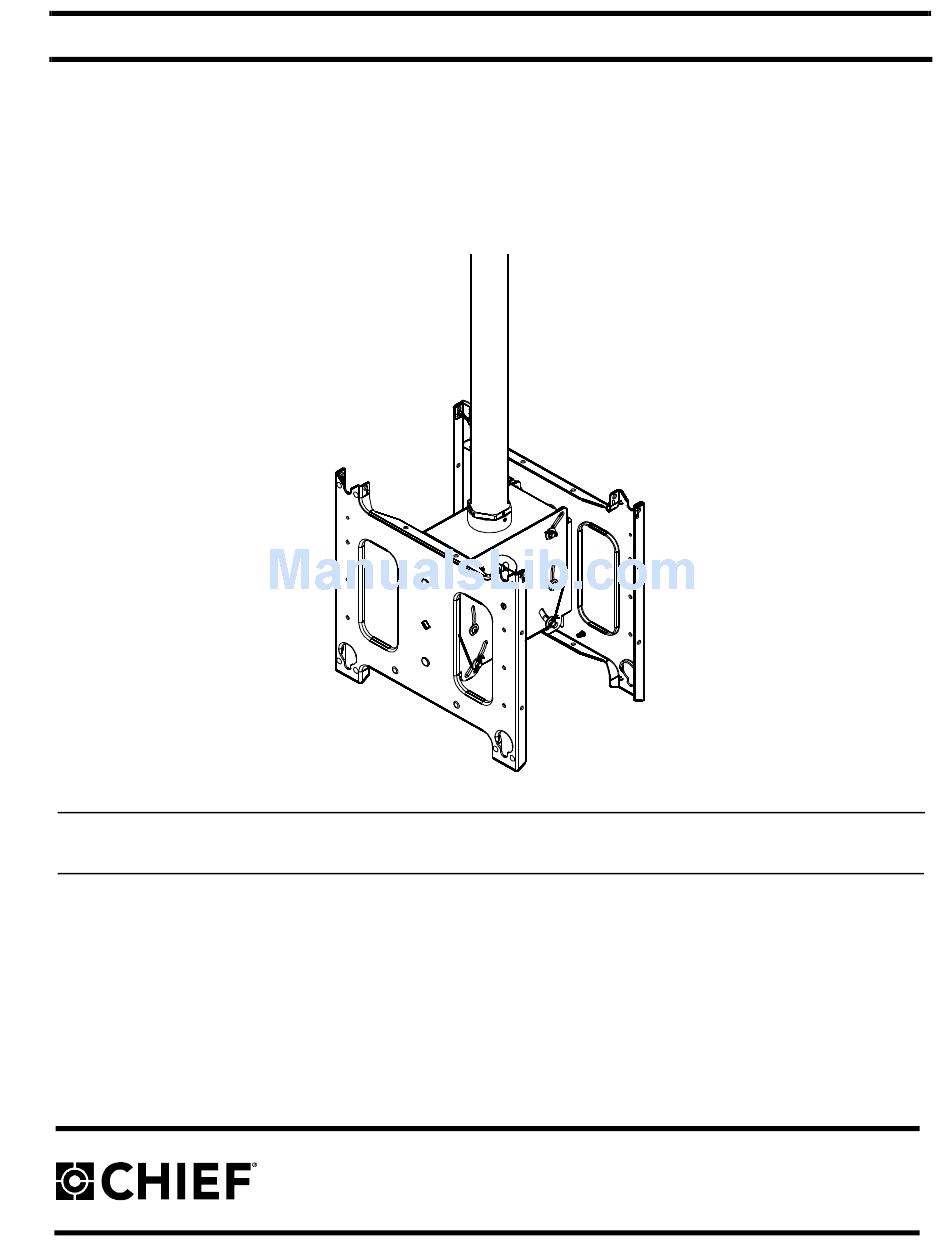

- Page 1 I N S T A L L A T I O N I N S T R U C T I O N S Plasma Dual Ceiling Mount PDC Series...
-
Page 2: Installation Instructions
PDC Series DISCLAIMER Milestone AV Technologies, Inc., and its affiliated corporations and subsidiaries (collectively, "Milestone"), intend to make this manual accurate and complete. However, Milestone makes no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use of this product. - Page 3 À la main Hex-Head Wrench Llave de cabeza hexagonal Sechskantschlüssel Chave de cabeça sextavada Chiave esagonale Zeskantsleutel Clé à tête hexagonale PDC Series Pencil Mark Marcar con lápiz Stiftmarkierung Marcar com lápis Segno a matita Potloodmerkteken Marquage au crayon Drill Hole...
- Page 4 PDC Series TOOLS REQUIRED FOR INSTALLATION PARTS B (1) 1/8" 9/16" (14.3 mm) A (1) C (1) 5/32" D (2) D2 (1) 10-24 x 3/8" 10-24 D5 (1) D1 (1) 4-40 x 2-1/2" D7 (1) 5/16-18 Installation Instructions D3 (1) D4 (1) 3/16"...
- Page 5 Lower each display into place listening for audible "click" to ensure recessed area of mounting buttons are properly seated in lower area of mounting holes.(See Figure 4) Screw PDC Series EXCEEDING MAXIMUM WEIGHT CAPACITY DISPLAY MAY WEIGH IN EXCESS OF Display...
- Page 6 PDC Series May remove pin and nut and move to lower holes A padlock or bolt may be placed through latch holes Figure 4 WARNING: IMPROPER INSTALLATION CAN LEAD TO DISPLAY FALLING CAUSING SERIOUS PERSONAL INJURY OR DAMAGE TO EQUIPMENT! Ensure mounting buttons are completely engaged in mounting holes.
- Page 7 Installation Instructions Figure 6 Pitch Adjustment Loosen two screws on side of PDC. (See Figure 6) Adjust to desired pitch, or vertical movement. Tighten the screws on side of PDC. (Display and faceplate removed for clarity) PDC Series...
- Page 8 PDC Series 8805-000115 Rev.D 2008 Chief Manufacturing www.chiefmfg.com 01/08 USA/International A 8401 Eagle Creek Parkway, Savage, MN 55378 P 800.582.6480 / 952.894.6280 F 877.894.6918 / 952.894.6918 Europe A Fellenoord 130 5611 ZB EINDHOVEN, The Netherlands P +31 (0)40 2668620 F +31 (0)40 2668615...
