I N S T A L L A T I O N I N S T R U C T I O N S
Instrucciones de instalación
Installationsanleitung
Instruções de Instalação
Video Conferencing Camera Shelf
Istruzioni di installazione
Installatie-instructies
Instructions d´installation
Spanish Product Description
German Product Description
Portuguese Product Description
Italian Product Description
Dutch Product Description
French Product Description
PAC716
Advertisement
Table of Contents
Related Manuals for CHIEF PAC716
Summary of Contents for CHIEF PAC716

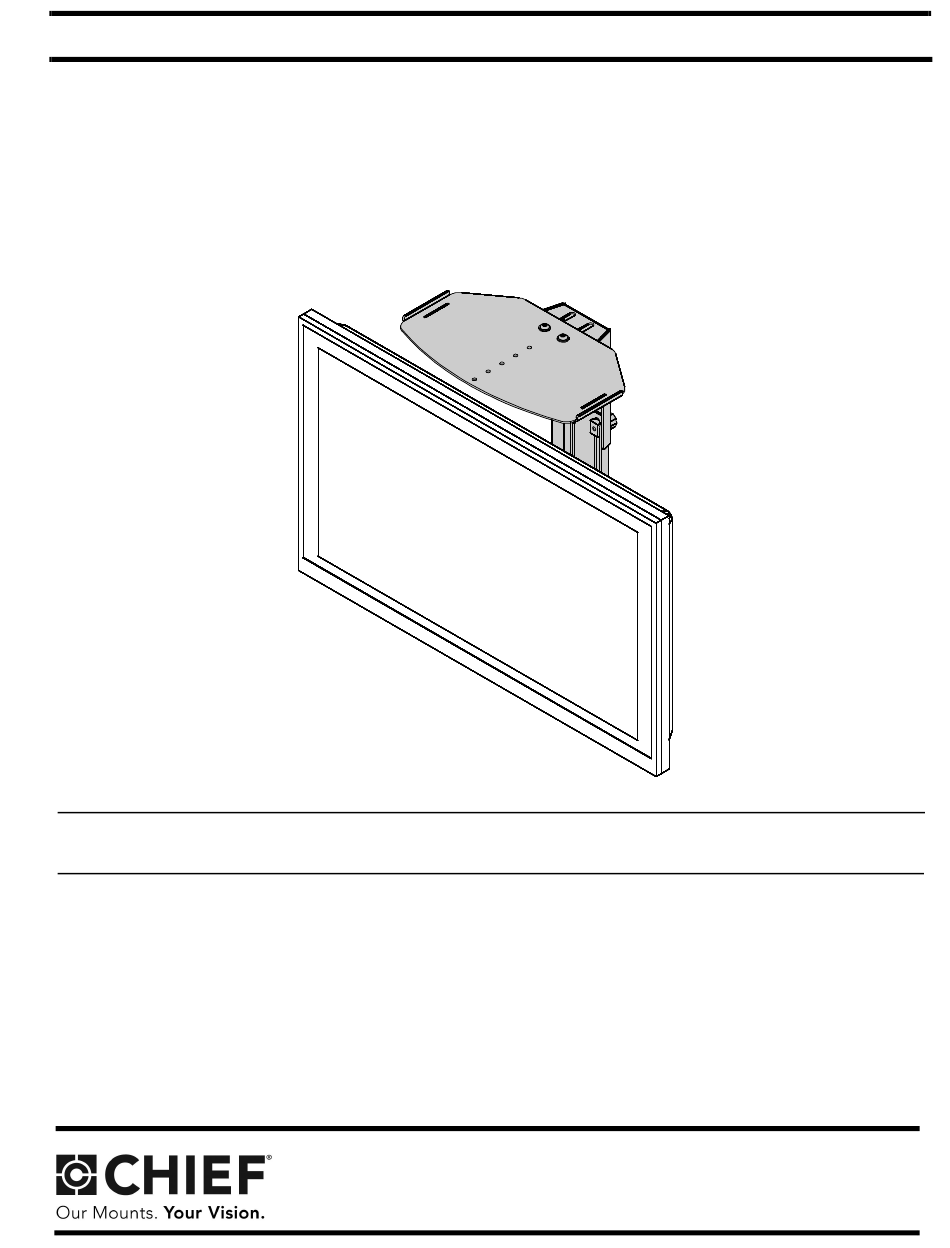

- Page 1 I N S T A L L A T I O N I N S T R U C T I O N S Instrucciones de instalación Istruzioni di installazione Installationsanleitung Installatie-instructies Instruções de Instalação Instructions d´installation Video Conferencing Camera Shelf Spanish Product Description German Product Description Portuguese Product Description Italian Product Description Dutch Product Description French Product Description PAC716...
- Page 2 It is the serious injury or death if you do not follow the instructions. installer’s responsibility to make sure the combined weight of all equipment and accessories mounted on the PAC716 does not exceed 10 lbs (4.54 kg). DIMENSIONS...
- Page 3 Installation Instructions PAC716 LEGEND Tighten Fastener Pencil Mark Apretar elemento de fijación Marcar con lápiz Befestigungsteil festziehen Stiftmarkierung Apertar fixador Marcar com lápis Serrare il fissaggio Segno a matita Bevestiging vastdraaien Potloodmerkteken Serrez les fixations Marquage au crayon Loosen Fastener Drill Hole Aflojar elemento de fijación...
- Page 4 PAC716 Installation Instructions TOOLS REQUIRED FOR INSTALLATION 5/32" 1/4" PARTS A (1) [PAC716 shelf] B (2) 1/4-20 x 3/4" C (4) E (1) 1/4-20 [medium faceplate adapter] D (8) [Hook & Loop]...
- Page 5 Attach to Large Faceplate Position PAC716 shelf (A) above or below the faceplate making sure to line up the holes on the shelf with the holes on the faceplate. (See Figure 1 or 2) Install two 1/4-20 x 3/4"...
- Page 6 Camera can be secured to mount either by threading a strap (not included) through outside slots on camera mount and around the camera, or by inserting a screw (not included) through the PAC716 center holes into a hole on the camera bottom. NOTE: It is also acceptable to mount the camera directly to the shelf using the hook and loop squares (D) provided.
- Page 7 Installation Instructions PAC716...
- Page 8 Europe A Fellenoord 130 5611 ZB EINDHOVEN, The Netherlands P +31 (0)40 2668620 F +31 (0)40 2668615 Chief Manufacturing, a products division Asia Pacific A Office No. 1 on 12/F, Shatin Galleria of Milestone AV Technologies 18-24 Shan Mei Street...
