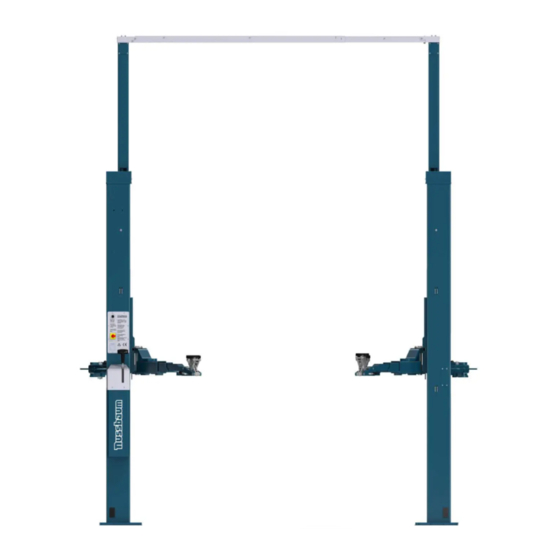

SPL 3 20 0
Automotive lift date: 07/2000
Manual date: 07/2000
Operating instruction and documentation
s e r i a l - n u m b e r : . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Nußbaum Hebetechnik GmbH & Co. KG || Korker Straße 24 || D-77694 Kehl-Bodersweier ||
E-mail: info@nussbaum-lifts.de || http://www.nussbaum-lifts.de ||
retailer addresse / phone
Tel: +49 (0) 78 53/89 90 || Fax +49 (0) 78 53/87 87 ||

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SPL 3200 and is the answer not in the manual?

Questions and answers

Related Manuals for Nussbaum SPL 3200

Summary of Contents for Nussbaum SPL 3200

  • Page 1 - n u m b e r : ............retailer addresse / phone Nußbaum Hebetechnik GmbH & Co. KG || Korker Straße 24 || D-77694 Kehl-Bodersweier || Tel: +49 (0) 78 53/89 90 || Fax +49 (0) 78 53/87 87 || E-mail: info@nussbaum-lifts.de || http://www.nussbaum-lifts.de ||...

  • Page 2: Table Of Contents

    Instruction and Documentation SPL 3200 Table of contents Record of Installation..................... 3 Record of handing over...................4 1. Introduction..................5 2. Master Document of the automotive lift.......... 6 Attestation of conformity..................7 3. Technical Information................ 8 Data Sheet over floor....................9 Foundation plan .....................

  • Page 3: Record Of Installation

    Korker Straße 24 777694 Kehl-Bodersweier Germany Record of installation The automotive lift SPL 3200 with the serial number.: ........was installed on ............at the firm........... a t ................

  • Page 4: Record Of Handing Over

    Instruction and Documentation SPL 3200 Record of handing over The automotive lift SPL 3200 with the serial number.: ........was installed on ............at the firm........... a t ................

  • Page 5: Introduction

    Instruction and Documentation SPL 3200 1 . I n t ro d u c t i o n The document ”Operating Instructions and Documentation” contains important infomation about installation, running and preserving of the automotive lift. To furnish proof of installation of the automotive lift the form ”Record of Installation”...

  • Page 6: Master Document Of The Automotive Lift

    Germany Application The automotive lift SPL 3200 is a lifting stage for lifting vehicles with a laden weight of 3200 kg and a max. load sharing of 2:1 in and against drive-on direction. The lift is equipped for working under the load. It is not allowed to enter the load or to carry persons with it.

  • Page 7: Attestation Of Conformity

    Instruction and Documentation SPL 3200...

  • Page 8: Technical Information

    Instruction and Documentation SPL 3200 3 . Technical Information Technical ratings Lifting capacity: 3200 kg Load sharing: max. 2:1 in or against drive-on direction Lifting time: ca. 32 sec Lowering time: ca. 41 sec lifting capacity: 1740 mm Line voltage:...

  • Page 9: Data Sheet Over Floor

    Instruction and Documentation SPL 3200 Data sheet command unit...

  • Page 10: Foundation Plan

    Instruction and Documentation SPL 3200 Foundation plan Quality of the concrete B25...

  • Page 11: Electrical Diagram Drawing (Standard Version)

    Instruction and Documentation SPL 3200 Electrical diagram drawing (standard version) fuse 3xT 16 A by customers by customers automotive lift Parts list for electrical diagram reversing switch for lifting motor 3,0 kW thermofuse in motor up contactor A1, A2: clamped connections...

  • Page 12: Electrical Clamped Connection Drawing

    Instruction and Documentation SPL 3200 Clamped connection drawing...

  • Page 13: Electrical Diagram Drawing (Single Phase Canada Version)

    Instruction and Documentation SPL 3200 Electrical diagram drawing (single phase Canada version)

  • Page 14: Electrical Diagram Drawing (Three Phase Canada Version)

    Instruction and Documentation SPL 3200 Electrical diagram drawing (Canada version 3 Phase)

  • Page 15: Electrical Diagram Drawing (Single Phase Usa Version)

    Instruction and Documentation SPL 3200 Electrical diagram drawing (single phase USA) main switch motor...

  • Page 16: Hydraulic Diagram Drawing

    Instruction and Documentation SPL 3200 Hydraulic diagram drawing Parts list of hydraulic diagram 0.1: oil-tank 0.2: motor 0.3: pump 0.4: oil-filter 0.5: oil-level gage 0.6: hydraulic block complete 0.7: holding valve 0.8: pressure relief valve 0.9: ball valve (lowering) 0.10: flow control holding valve 1.0:...

  • Page 17: Safety Regulations

    Read the safety regulations in chapter 4 carefully before working with the lift! The operating elements are shown in picture 1. Lifting the vehicle with the SPL 3200 • Drive vehicle between the two columns, longitudinal directon and transverse direction in centre.
  • Page 18 Instruction and Documentation SPL 3200 (side view) (side view) (front view) pic. 1: operating elements • When the wheels have been lifted free, stop with lifting; let go of operating (reversing) switch and check safety sit of the pads under the vehicle.

  • Page 19: Troubleshooting

    Instruction and Documentation SPL 3200 When the lift is lifted to top position the operating switchis pulled to position ”0” with the help of a rod assembly. So lifting stops. Afterwards the operating switch can not be turned to position "↑"any more. The lift can only be lowered (as described in section ”lowering of the lift”).

  • Page 20: Emergency Lowering

    Instruction and Documentation SPL 3200 Problem: Motor does not start, lift is neither lifting nor lowering! Potential causes • Fuse is defective: replace fuse of trouble: • Feed line is cut • Motor is overheated: let it cool down for app. 10 min.

  • Page 21: Torn Rope

    Instruction and Documentation SPL 3200 Emergency lowering • In case the ratchets are engaged turn operating switch to position "↑", lift it a little bit until the ratchets are unlocked. • Let go of operating switch and lock it in position "0"...

  • Page 22: Maintenance

    Instruction and Documentation SPL 3200 7 . M a i n t e n a n c e A regular service has to be performed every three months by the lift’ s operator according to the following schedule. If the lift is in continuous operation or dirty environment, the maintenance rate has to be increased.

  • Page 23: Installation And Initiation

    Instruction and Documentation SPL 3200 9 . Installation and Initiation Installation of the lift Regulations for the installation • The installation of the lift is performed by trained technicians of the manufacturer or its distribution partner. If the operator can provide trained mechanics, he can install the lift by himself.
  • Page 24 Instruction and Documentation SPL 3200 according to picture 3. • Check line-up of the columns and look if they are vertical. If they aren’t vertical correct with suitable bases. • Tighten the Liebig-dowels with a dynamometric key (M = 80 Nm).
  • Page 25 Instruction and Documentation SPL 3200 • Lower automotive lift to lowest position and lift it afterwards 500 - 600 mm. Both ropes must be tightened lightly. In any other case the self-locking nuts at the upper side ob both carriages must be adjusted again.

  • Page 26: Initiation

    Instruction and Documentation SPL 3200 Pay attention, that the ”switch-off covering” is smooth and that the lift is switched off when the covering is pressed up. This covering is for switching off the lift while lifting the lift the same time a vehicle drives against it from upper side.
  • Page 27 Instruction and Documentation SPL 3200 pic. 2: choice of dowel lengths (without floor pavement or tile surface) table to picture 5: Liebig-safety dowels type of dowel B20/175 Drilling depth min. anchorage depth 1 7 0 thickness of concrete diameter of bor...
  • Page 28 Instruction and Documentation SPL 3200 pic. 3: Choice of dowel lengths (with floor pavement or tile surface) table to picture 3: type of dowel B20/175 B20/225 Drilling depth min. anchorage depth 1 7 0 1 7 0 thickness of concrete...
  • Page 29 Instruction and Documentation SPL 3200 pic. 4: course of the hoses return line hydraulic service pipe hydraulic synchronizing ropes hydraulic cylinder hang up of the rope lower side carriage hang up of the rope upper side carriage pulley pulley fixing at carriage...
  • Page 30 Instruction and Documentation SPL 3200 pic. 5: ratchet-rope...
  • Page 31 Instruction and Documentation SPL 3200 pic. 6: ratchet ratchet-rope lifting carriage with end-nipple ratchet strip ratchet column...
  • Page 32 SPL 3200 to fill in and to leave in First security check before installation this document a l l d e f e c t v e r i - kind of check r i g h l a c k i n g...
  • Page 33 SPL 3200 Regular security check to fill in and to leave in this document a l l d e f e c t v e r i - kind of check r i g h t l a c k i n g...
  • Page 34 SPL 3200 Extraordinary security check to fill in and to leave in this document a l l d e f e c t v e r i - kind of check r i g h t l a c k i n g...
  • Page 35 Spare parts list SPL 3200 Spare parts list drawing: columns, coverings, cylinder, ropes opposite side operating side...
  • Page 36 Spare parts list SPL 3200 Spare parts list drawing: columns, coverings, cylinder, ropes Number Description Code column operating side 235SPL05003 column opposite side 235SPL05039 hydraulic cylinder 232POW22003 hydraulic cylinder 232POW22002 head plate operating side 232POW25020 head plate opposite side 232POW25056...
  • Page 37 Spare parts list SPL 3200 Spare parts list drawing: columns, coverings, cylinder, ropes Number Description Code hexagon nut 9MU934M06ZN countersunk screw 9SE7991M05*08ZN cylinder screw 9Z912M06*010ZN lock washer 9FR7980M06ZN ratchet 232SPL10003 leg spring 970251 bolt of bearing 232POW10008 Seeger circlip ring...
  • Page 38 Spare parts list SPL 3200 Spare parts list drawing: carriages, standard carrying arms...
  • Page 39 Spare parts list SPL 3200 Spare parts list Power-Lift: carriage, carrying arms Number Description Code carriage, operating side 232POW06003 carriage, opposite side 232POW06039 sliding block topside 232POW06014 sliding block, lower side 232POW06015 sliding block bottom frontside 232POW06030 countersunk screw 9SE7991M06*20ZN...
  • Page 40 Spare parts list SPL 3200 Spare parts list drawing: hydraulic-aggregate...
  • Page 41 Spare parts list SPL 3200 Spare parts list: hydraulic-aggregate Number Description Code pump carrier 232POW21003 cylinder screw 9Z912M08*012ZN lock washer 9FR7980M08ZN countersunk screw 9SE7991M08*16 coupling 970290 pump 980243 cylinder scres 9Z912M08*085ZN lock washer 9FR7980M08ZN motor 3.0 KW (standard version) 990303...
  • Page 42 Gebrauchsanweisung und B Ü H N E N T Y P...
  • Page 43 Gebrauchsanweisung und B Ü H N E N T Y P...
