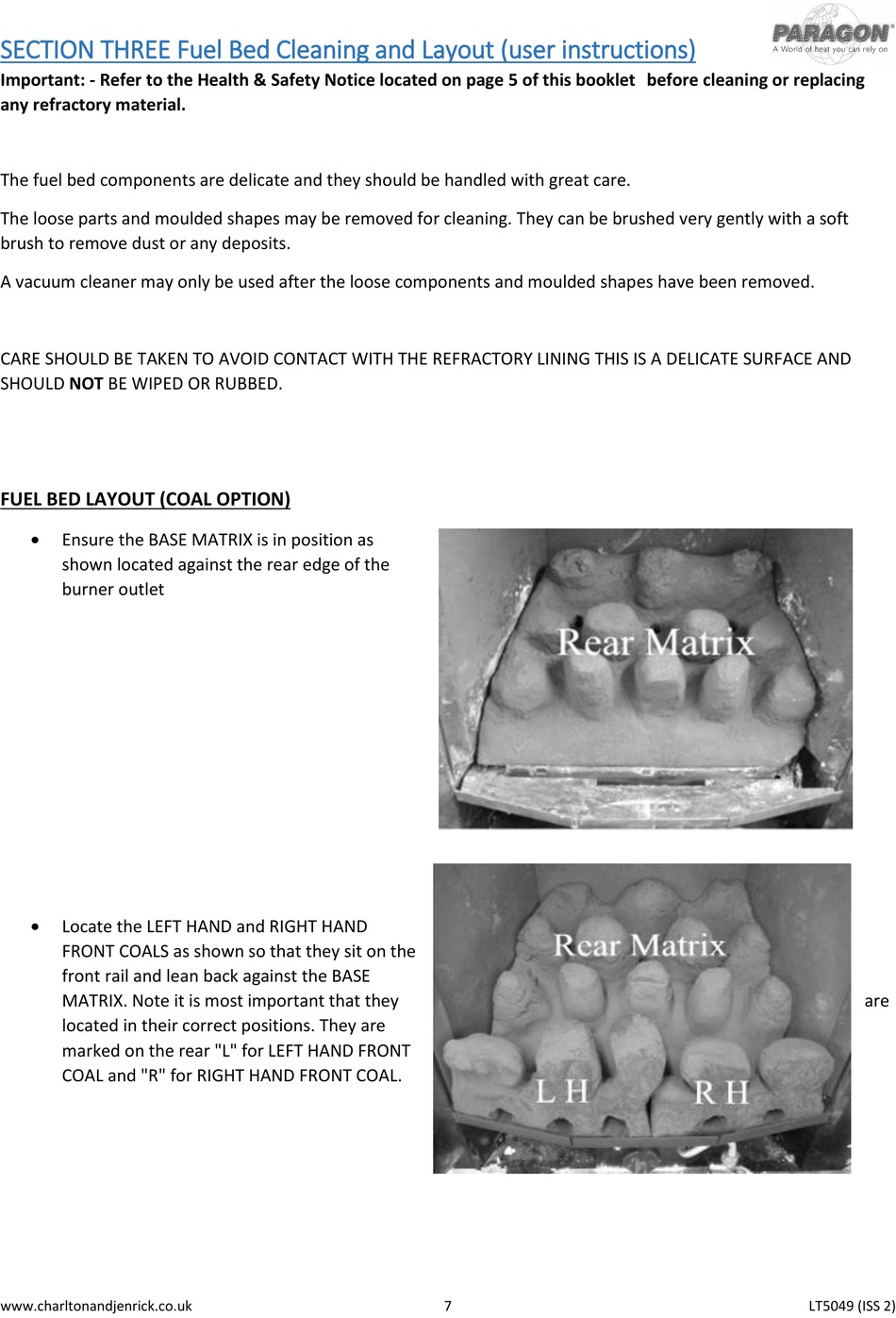

SECTION THREE Fuel Bed Cleaning and Layout (user instructions)

Important: - Refer to the Health & Safety Notice located on page 5 of this booklet before cleaning or replacing
any refractory material.
The fuel bed components are delicate and they should be handled with great care.
The loose parts and moulded shapes may be removed for cleaning. They can be brushed very gently with a soft
brush to remove dust or any deposits.
A vacuum cleaner may only be used after the loose components and moulded shapes have been removed.
CARE SHOULD BE TAKEN TO AVOID CONTACT WITH THE REFRACTORY LINING THIS IS A DELICATE SURFACE AND
SHOULD NOT BE WIPED OR RUBBED.
FUEL BED LAYOUT (COAL OPTION)

Ensure the BASE MATRIX is in position as
shown located against the rear edge of the
burner outlet

Locate the LEFT HAND and RIGHT HAND
FRONT COALS as shown so that they sit on the
front rail and lean back against the BASE
MATRIX. Note it is most important that they
located in their correct positions. They are
marked on the rear "L" for LEFT HAND FRONT
COAL and "R" for RIGHT HAND FRONT COAL.
www.charltonandjenrick.co.uk 7
are
LT5049 (ISS 2)
