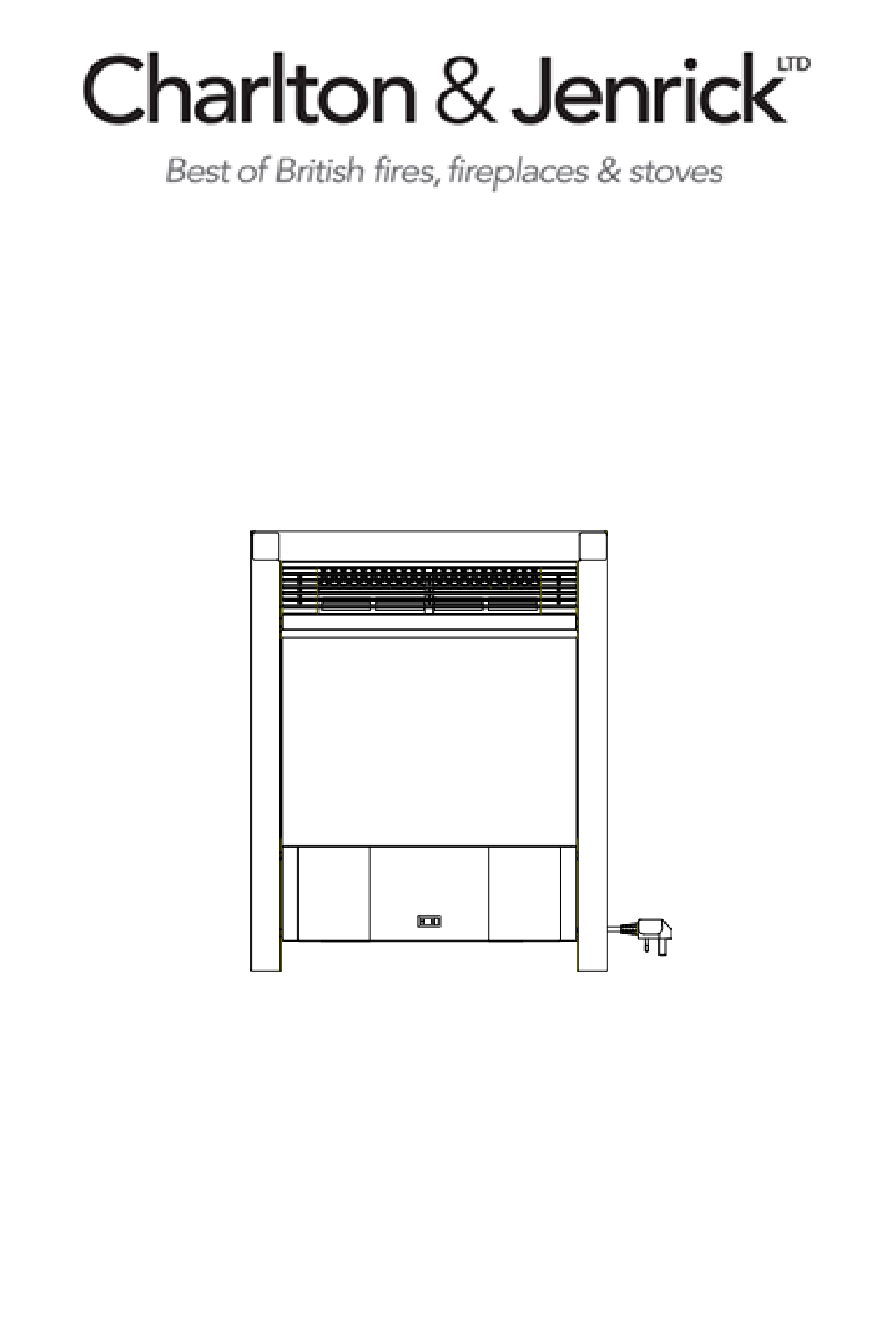

Charlton & Jenrick EF16NC Installation And Operation Instructions Manual

Led electric fire

Advertisement

LED Electric Fire
Model No. EF16NC
INSTALLATION AND OPERATION INSTRUCTIONS
NOTE: This appliance is only suitable for well insulated spaces or
occasional use.
please read the instructions carefully before installation or
use and keep for future reference

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EF16NC and is the answer not in the manual?

Questions and answers

Summary of Contents for Charlton & Jenrick EF16NC

  • Page 1 LED Electric Fire Model No. EF16NC INSTALLATION AND OPERATION INSTRUCTIONS NOTE: This appliance is only suitable for well insulated spaces or occasional use. please read the instructions carefully before installation or use and keep for future reference...
  • Page 2: Table Of Contents

    CONTENTS 1. Important Safety Information ········································································ 1 2. Technical Specifications ················································································· 3 3. Parts and Hardware ······················································································· 3 4. Appliance Dimensions ···················································································· 4 5. Installation Instructions ················································································· 5 6. Operating Instructions ··················································································· 9 6a. Manual Control Panel ············································································ 10 6b. Remote Controls ···················································································· 11 7.
  • Page 3: Important Safety Information

    1. IMPORTANT SAFETY INFORMATION IMPORTANT INFORMATION  This heater must not be located immediately below a socket-outlet.  This heater must be earthed. If in any doubt consult a suitable competent person.  In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and...
  • Page 4: Technical Specifications

     The meaning of figure is:- “WARNING: DO NOT COVER”. 2. TECHNICAL SPECIFICATIONS Model No.: EF16NC Supply Voltage: AC 220-240V 50Hz Maximum power consumption: 1.5KW Power for flame effect: 9.5W (LED 5.5W + Motor for flame 4W) Heat Output: Nominal heat output (Pnom): 1.5KW...
  • Page 5: Parts And Hardware

    Other Control Options Room temperature control, with presence detection Room temperature control, with open window detection With distance control option With adaptive start control With working time limitation With black bulb sensor 3. PARTS AND HARDWARE 3.1 Unpacking the fire carefully, make sure that the appliance is intact with no signs of damage caused by transport and no part has been exposed to water.
  • Page 6: Appliance Dimensions

    Small clear Faux crystals Washed Natural Coal Remote (1set) (1 set) AAA Battery Instruction Manual 4. APPLIANCE DIMENSIONS Unit: mm NOTE: A spacer frames for flat wall fixing can be purchased from your supplier.
  • Page 7: Installation Instructions

    5. INSTALLATION INSTRUCTIONS Tools Required A screw driver and a hammer driver will be needed. Locating the Appliance Your new electric fireplace may be installed virtually anywhere in your home. However, when choosing a location ensure that the general instructions are followed.
  • Page 8 The wires in the mains cable of this appliance are coloured in accordance with the following code: Blue = Neutral. Brown = Live. Green/yellow = earth. Installation Installation into a fireplace opening/insert: Opening Size For Insert Positions for Fixing Screw ≥80 5.9a Carefully, mark out the 4 fixing screw positions as above (positions for fixing screw: to dimensions Wo, Ho, and Lo).
  • Page 9 5.9d Lift and insert the appliance onto screws so that the keyhole slots is on the screw heads. 5.9e Tighten the 4 screws to lock the appliance into position. 5.9f Put 4pcs magnets (with the size of 18×18×12.5) onto the frame. For the Trim TR1622-11C &...
  • Page 10 To use the appliance with the Elite Fascia:you will need to replace the plastic shelf with the alternative shelf provided before the installation of the appliance before carryout steps 5.9f to 5.9g above. 5.9h Remove 4pcs screws ST4×8 from the plastic shelf. Then remove the plastic shelf and replace with alternative shelf provided and secure with 4pcs st4×8 screws.
  • Page 11: Operating Instructions

    Fuel Bed Arrangement For an attractive fuel bed arrangement its recommended that you put a layer of the small clear Faux Crystals on the fuel bed before laying the outer items of choice. Typical Fuel Bed : Coal and Small clear Faux crystals Typical Fuel Bed : Logs and Small clear Faux crystals 6.
  • Page 12: 6A. Manual Control Panel

    NOTE: To use both remote and manual functions the manual on/off switch must be in ‘ON’ position. In order to prevent the product becoming too hot, there is 10s delay when turning on the heater and a 10s delay when turning off the heater fan.
  • Page 13: 6B. Remote Controls

    Heater button Press once turns Fan on, and 10s later Low heat on. (Pilot lights illuminated●○) Press again turns on High heat. (Pilot lights illuminated ●●) Press third time turns heat off. 10s later fan off (Pilot lights illuminated ○○) There are 3 levels you can cycle through including the OFF setting.
  • Page 14: Maintenance

    Resetting the Thermal Cut Out 6b.1 The appliance is fitted with an Electronic Safety Control (E.S.). This is a safety device, which switches off the fire if, for any reason, the appliance overheats, e.g. when covered. If the heater stops operating while the flame effect continues working normally, this indicates that the E.S.
  • Page 15: Others

    8. OTHERS Environment Meaning of crossed –out wheeled dustbin: Electrical appliances should not be disposed as unsorted municipal waste. Separate collection facilities should be used in the disposal of electrical appliances. Contact your local government for the information about the available collection systems. If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being.
