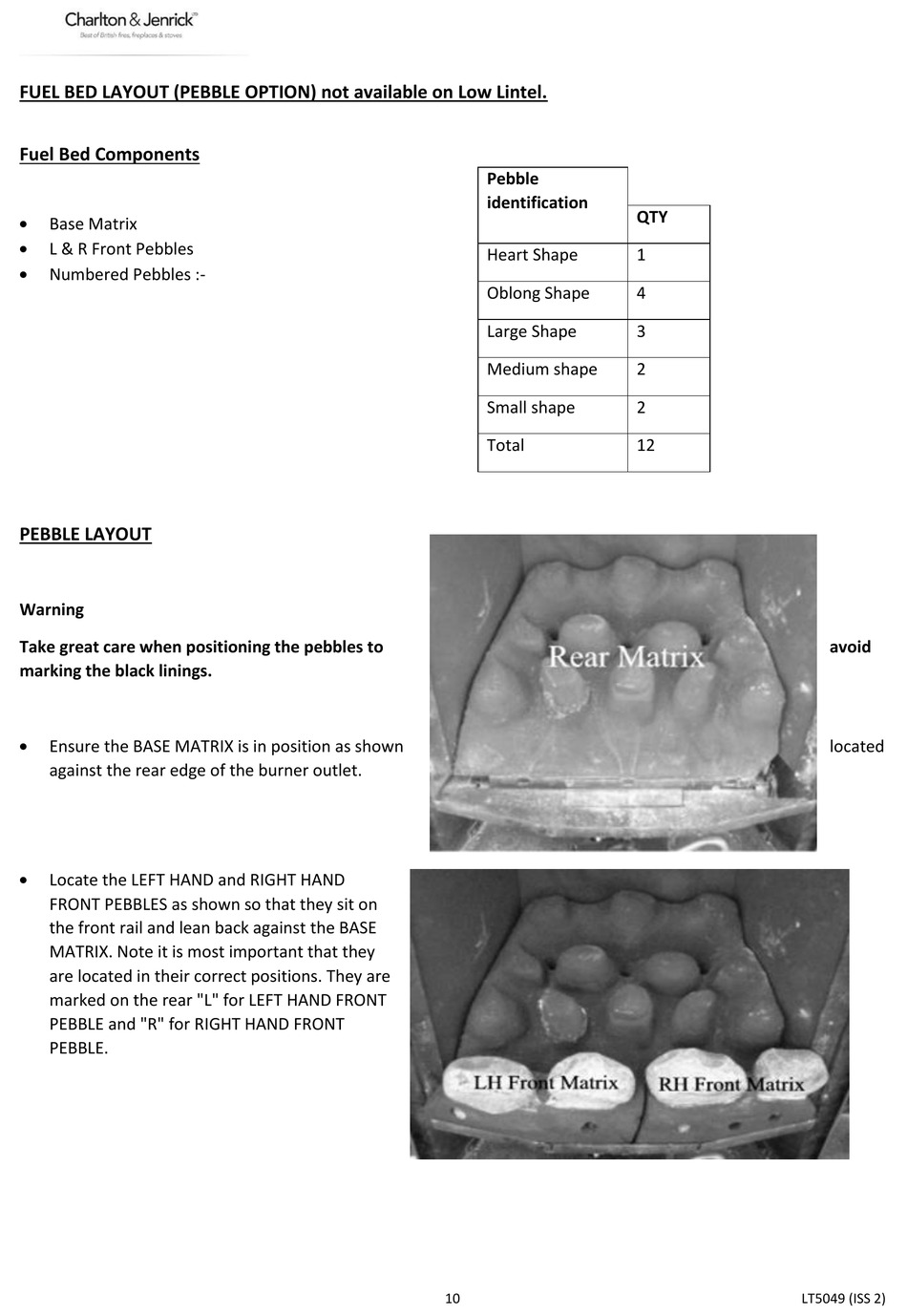

Charlton & Jenrick PARAGON 2000 Plus SLIDE CONTROL Owner's Manual page 10

FUEL BED LAYOUT (PEBBLE OPTION) not available on Low Lintel.
Fuel Bed Components

Base Matrix

L & R Front Pebbles

Numbered Pebbles :-
PEBBLE LAYOUT
Warning
Take great care when positioning the pebbles to
marking the black linings.

Ensure the BASE MATRIX is in position as shown
against the rear edge of the burner outlet.

Locate the LEFT HAND and RIGHT HAND
FRONT PEBBLES as shown so that they sit on
the front rail and lean back against the BASE
MATRIX. Note it is most important that they
are located in their correct positions. They are
marked on the rear "L" for LEFT HAND FRONT
PEBBLE and "R" for RIGHT HAND FRONT
PEBBLE.
Pebble
identification
Heart Shape
Oblong Shape
Large Shape
Medium shape
Small shape
Total
10
QTY
1
4
3
2
2
12
LT5049 (ISS 2)
avoid
located
