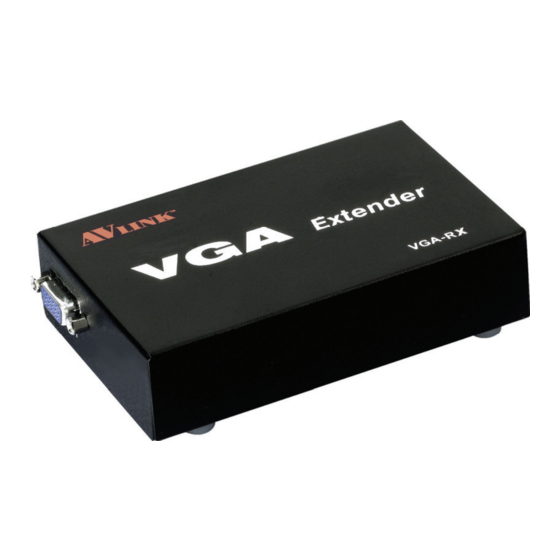

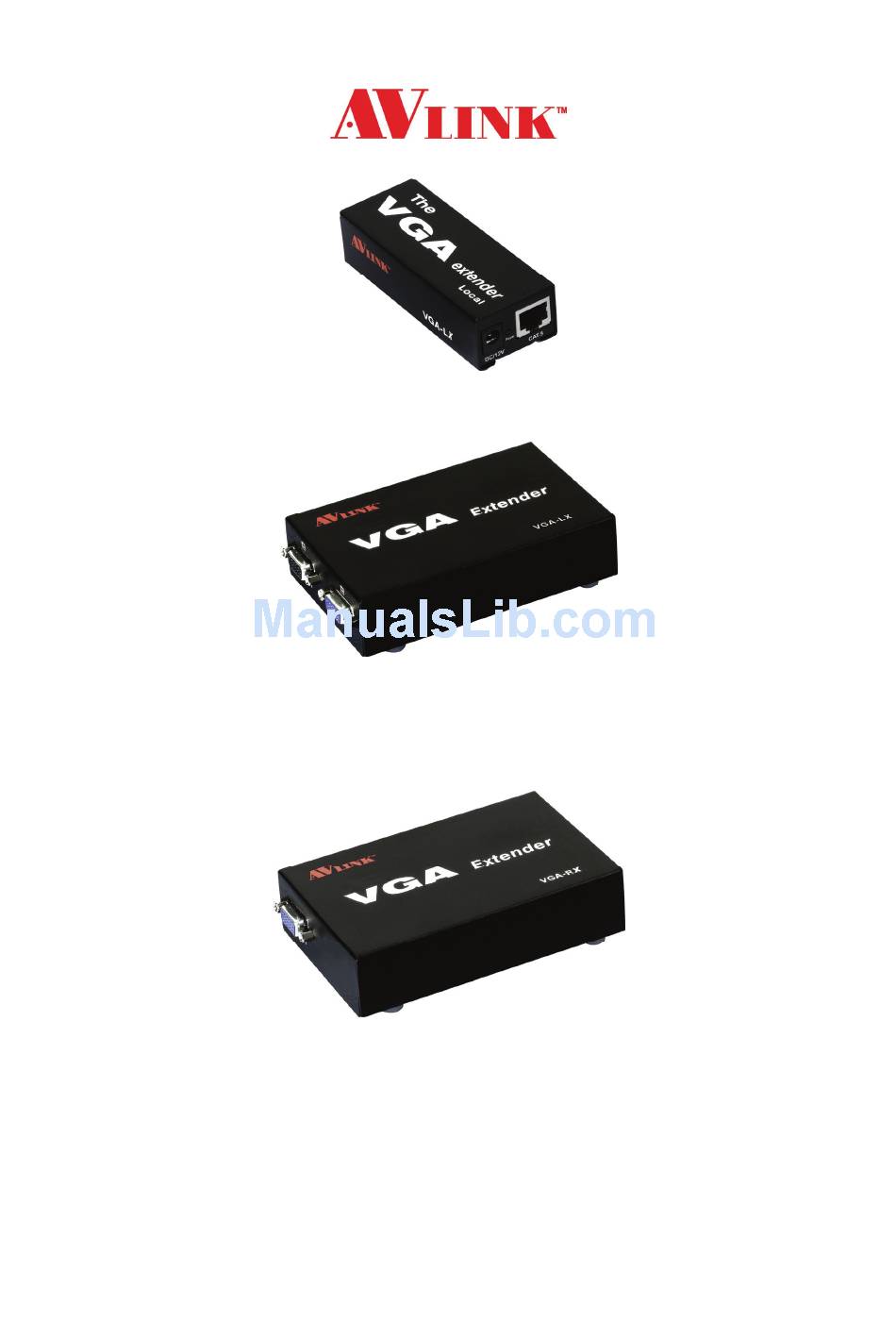

- Page 1 VGA EXTENDER VGA-LX VGA-LX (Local) VGA-RX (Remote) ANUAL V1.1...
- Page 2 Package Contents for VGA-EX VGA-LX Local Unit VGA-RX Remote Unit 1 user manual 2 power adapter DC 12V 1 VGA 1.2M cable (HD-15 Male to Male) Package Contents for VGA-EX VGA-LX Local Unit VGA-RX Remote Unit 1 user manual 2 power adapter DC 12V 1 VGA 1.2M cable (HD-15 Male to Male)
-
Page 3: Specifications
Specifications Function VGA-LX VGA-RX VGA-LX VGA In Connector HD-15 Female x 1 HD-15 Female x 1 None VGA Out Connector None HD-15 Female x 1 HD-15 Female x 1 RJ-45 Connector Max. Resolution Depends on remote unit 2048x1536 60Hz Cable Distance 400 m (Max.) - Page 4 REMOTE REAR VIEW 1. VGA Out (HD-15 Female Connector) REMOTE BOTTOM VIEW 1. B Skew CAL. 2. G Skew CAL. 3. R Skew CAL. 4. GAIN – Adjust brightness 5. EQ – Equalization length adjust (Adjust it and weak characters be sharp) Installation 1.
- Page 5 Wiring Information & Coding Conductor Identification RJ45 Pin Assignment Color Code for Conductor White-Blue Pair 1 Blue White-Orange Pair 2 Orange White-Green Pair 3 Green White-Brown Pair 4 Brown © C&C TECHNIC TAIWAN CO., LTD. All rights reserved. Trademarks: All the companies, brand names, and product names referred to this manual are the trademarks or registered trademarks belonging to their respective companies.
