Function Monitoring" Message For Monitoring Messages <30 V - MR TAPCON 230 basic Operating Instructions Manual

Switched-off transformer You can suppress the message with this parameter to prevent the message
Activate/deactivate
message
Setting delay time You can configure the delay time after which the Function monitoring mes-
®
54 TAPCON 230 basic
To set the automatic key lock, proceed as follows:
1. > Configuration >
rameter is displayed.
ð Key lock
2. Press or
3. Press .
ð Automatic key lock is set.

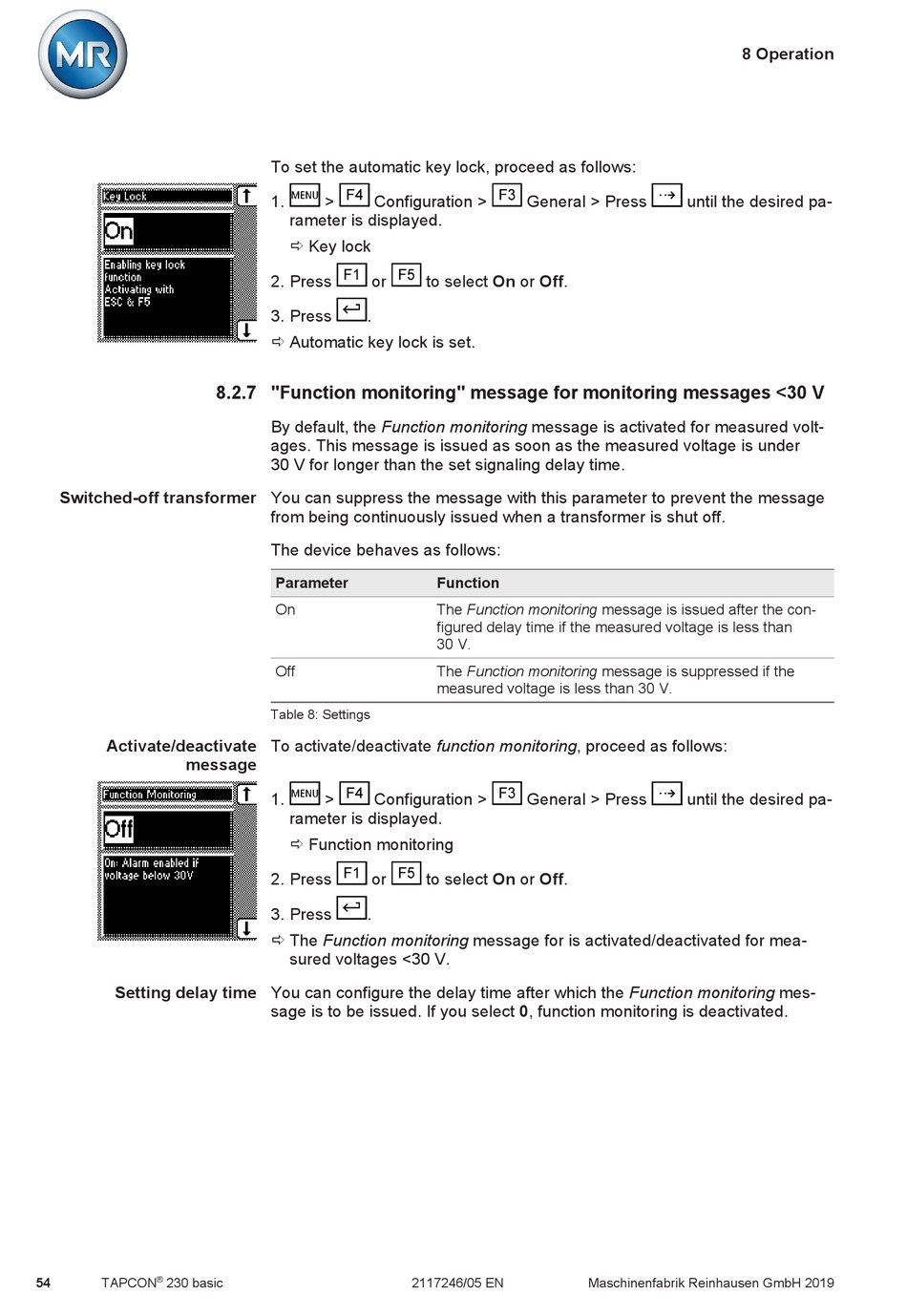

8.2.7 "Function monitoring" message for monitoring messages <30 V
By default, the Function monitoring message is activated for measured volt-
ages. This message is issued as soon as the measured voltage is under
30 V for longer than the set signaling delay time.
from being continuously issued when a transformer is shut off.
The device behaves as follows:
Parameter
On
Off
Table 8: Settings
To activate/deactivate function monitoring, proceed as follows:
1. > Configuration >
rameter is displayed.
ð Function monitoring
2. Press or
3. Press .
ð The Function monitoring message for is activated/deactivated for mea-
sured voltages <30 V.
sage is to be issued. If you select 0, function monitoring is deactivated.
General > Press
to select On or Off.
Function
The Function monitoring message is issued after the con-
figured delay time if the measured voltage is less than
30 V.
The Function monitoring message is suppressed if the
measured voltage is less than 30 V.
General > Press
to select On or Off.
2117246/05 EN
8 Operation
until the desired pa-
until the desired pa-
Maschinenfabrik Reinhausen GmbH 2019
