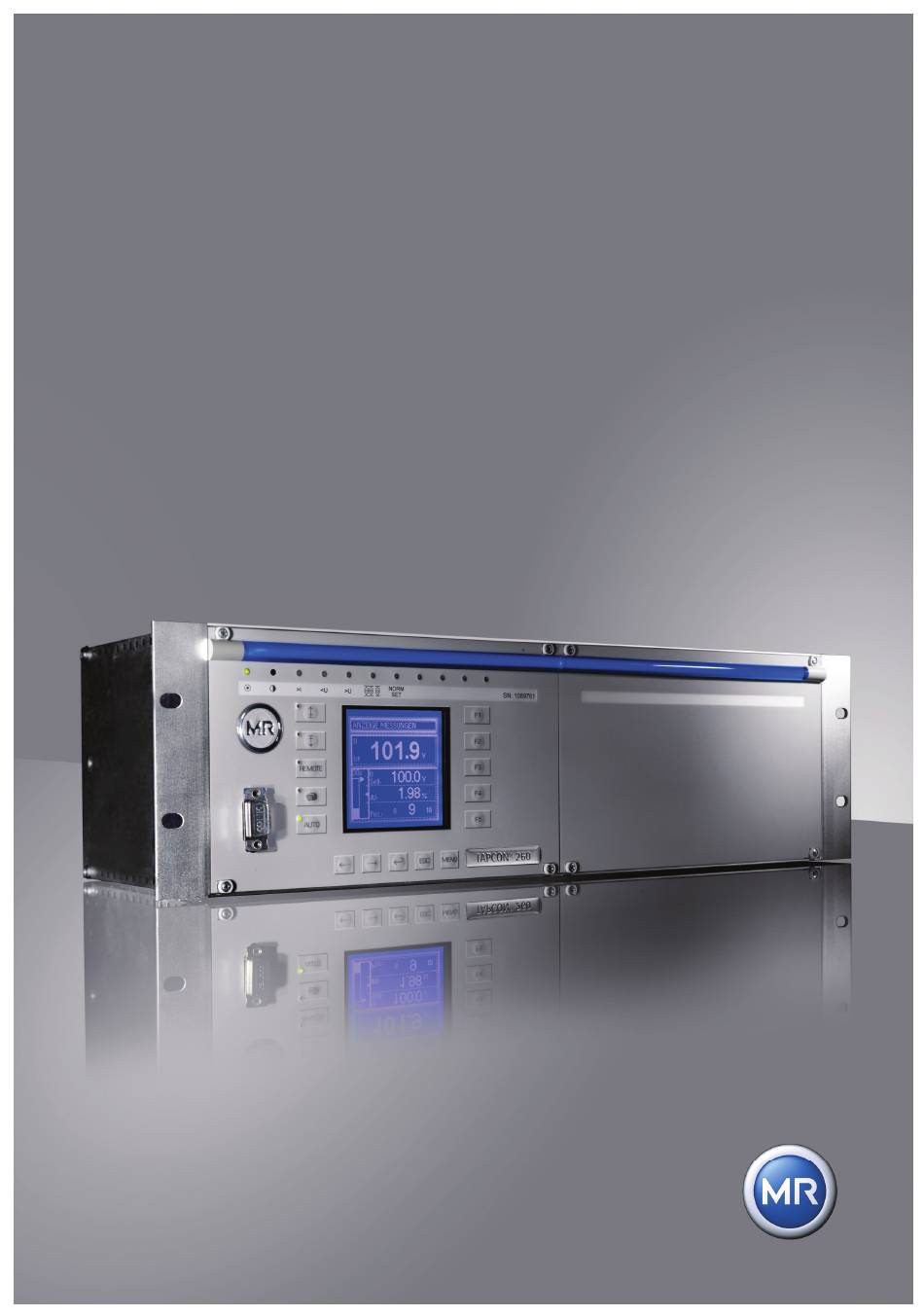

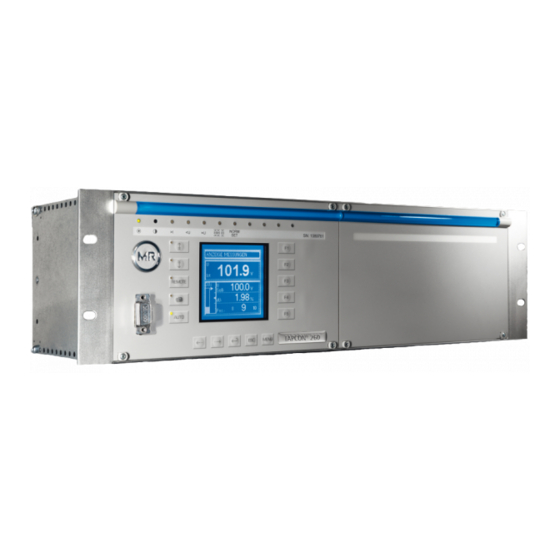

- Page 1 Voltage regulator TAPCON® 260 Operating Instructions 1801003/04 Protocol description for IEC 61850...
- Page 2 © All rights reserved by Maschinenfabrik Reinhausen Copying and distribution of this document and utilization and communication of its contents are strictly prohibited unless expressly authorized. Offenders will be held liable for the payment of damages. All rights reserved in the event of the grant of a patent, utility model or ornamental design registration.
-
Page 3: Table Of Contents
Table of Contents Table of Contents Introduction .................. 9 1.1 Manufacturer ..................... 9 1.2 Subject to change without notice .............. 9 1.3 Completeness ................... 9 1.4 Supporting documents ................10 1.5 Safekeeping .................... 10 1.6 Notation conventions ................10 1.6.1 Abbreviations used ..................... - Page 4 Table of Contents 3.2.1 LLN0 - Logical node .................... 22 3.2.2 LPHD - Physical device ..................23 3.2.3 LPHD - Physical device ..................24 3.2.4 GGIO1 - IO card inputs ..................27 3.2.5 GGIO2 - UC1 card inputs ...................
- Page 5 Table of Contents Mounting ..................53 5.1 Unpacking ....................53 5.2 Mounting ....................53 5.3 Connection ....................54 5.3.1 Cable recommendation for standard connections ..........54 5.3.2 Cable recommendation for optional connections ..........55 5.3.3 Electromagnetic compatibility ................
- Page 6 Table of Contents 7.2.2 Setting the primary voltage ................. 83 7.2.3 Setting the secondary voltage ................84 7.3 Parameters ..................... 85 7.3.1 Setting control parameters ................. 85 7.3.2 Setting desired value 1 ..................86 ...
- Page 7 Table of Contents 7.5.8 Displaying peak memory ................... 209 7.5.9 Displaying CIC1 card SCADA information ............210 7.5.10 Displaying CIC2 card SCADA information ............211 7.5.11 Displaying upcoming messages ............... 212 Interface description for IEC 61850 protocol ......213 ...
- Page 8 10.7 Tests ..................... 225 10.7.1 Electrical safety ....................225 10.7.2 EMC tests ......................226 10.7.3 Environmental durability tests ................226 MR worldwide ................227 TAPCON® 260 1801003/04 EN © Maschinenfabrik Reinhausen 2011...
-
Page 9: Introduction
1 Introduction Introduction This technical file contains detailed descriptions on the safe and proper mounting, connection, commissioning and monitoring of the product. It also includes safety instructions and general information about the product. This technical file is intended solely for specially trained and authorized per- sonnel. -
Page 10: Supporting Documents
1 Introduction Supporting documents The following documents apply to this product: Operating instructions Quick reference guide Connection diagrams In addition, generally applicable legal and other binding regulations of Euro- pean and national law and the regulations for accident prevention and envi- ronmental protection in force in the country of use must be complied with. -
Page 11: Abbreviations Used
1 Introduction 1.6.1 Abbreviations used Abbreviation Definition °C Degrees Celcius Ampere Alternating Current Bandwidth Binary Coded Decimal circa Regulator Area Network Communication Interface Card Central Processing Unit Current Transformer Direct Current Deutsches Institut für Normung (German Institute for Standardization) Distributed Network Protocol Electromagnetic compatibility Escape Hertz... -
Page 12: Hazard Communication System
1 Introduction Abbreviation Definition Second SCADA Supervisory Control and Data Acquisition Time Transmission Control Protocol Voltage Actual voltage Reference voltage Volt Voltage Transformer Table 1 Abbreviations used 1.6.2 Hazard communication system Warnings in this technical file use the following format: DANGER! Danger Consequences... -
Page 13: Information System
1 Introduction Pictograms warn of dangers: Picto Meaning gram Danger Dangerous electrical voltage Fire hazard Danger of tipping Table 3 Symbols used in warning notices 1.6.3 Information system Information is designed to simplify and improve understanding of particular procedures. In this technical file they are laid out as follows: Important information ©... -
Page 15: Safety
2 Safety Safety General safety information This technical file contains detailed descriptions on the safe and proper mounting, connection, commissioning and monitoring of the product. Read this technical file through carefully to familiarize yourself with the prod- uct. Particular attention should be paid to the information given in this chapter. Appropriate use The product and associated equipment and special tools supplied with it comply with the relevant legislation, regulations and standards, particularly... -
Page 16: Inappropriate Use
2 Safety Inappropriate use Use is considered to be inappropriate if the product is used other than as de- scribed in Appropriate use on page 15. Maschinenfabrik Reinhausen does not accept liability for damage resulting from unauthorized or inappropriate changes to the product. Inappropriate changes to the product without consultation with Maschinenfabrik Reinhausen can lead to personal injury, damage to property and operational disruption. - Page 17 2 Safety All necessary devices and personal protective equipment for each activity are made available. The prescribed maintenance intervals and the relevant regulations are complied with. Fitting, electrical connection and commissioning of the product may only be carried out by qualified and trained personnel in accordance with this technical file.
-
Page 19: Product Description
3 Product description Product description The voltage regulator serves to keep constant the output voltage of a trans- former with an on-load tap-changer. To do this, the voltage regulator compares the transformer's measured output voltage (V ) with a defined reference voltage (V ). - Page 20 3 Product description Figure 1 Overview of voltage regulation TAPCON® 260 1801003/04 EN © Maschinenfabrik Reinhausen 2011...
