VIPEDIA-12 Surveillance Generator Commissioning

The V2000 requires a continuous low level 20Hz surveillance tone from the VIPEDIA-12 outputs. This tone is
used for input surveillance detection.
To commission the 20Hz VIPEDIA-12 surveillance tone:
a) Launch the PAVA System Configuration Tool.
b) Open the system configuration file (.xml)
c) Go to 'Preferences'
d) Click the 'Launch Dynamic Configuration Tool' icon in the toolbar.
e) The VIPEDIA-12 Dynamic Configuration Tool will launch after a few seconds.
f) Select the VIPEDIA-12 to be commissioned using the drop down box in the bottom left of the tool.
g) Select the 'Global Settings' tab.
h) Under 'Surveillance Generator 1' select '20Hz'.
i) For each V2000 connected output, enable the surveillance tone generation by selecting 'On'.
j) Set the Send Level of each of these outputs to -30dB.
Figure 9 highlights the relevant sections, with outputs 1 – 3 commissioned as an example.
k) Repeat for all VIPEDIA-12 outputs in the PAVA system that have connection to V2000.
l) Once all VIPEDIA-12s have been commissioned, click 'Commit Settings'.
m) This will permanently save the commissioned values into all VIPEDIA-12s.

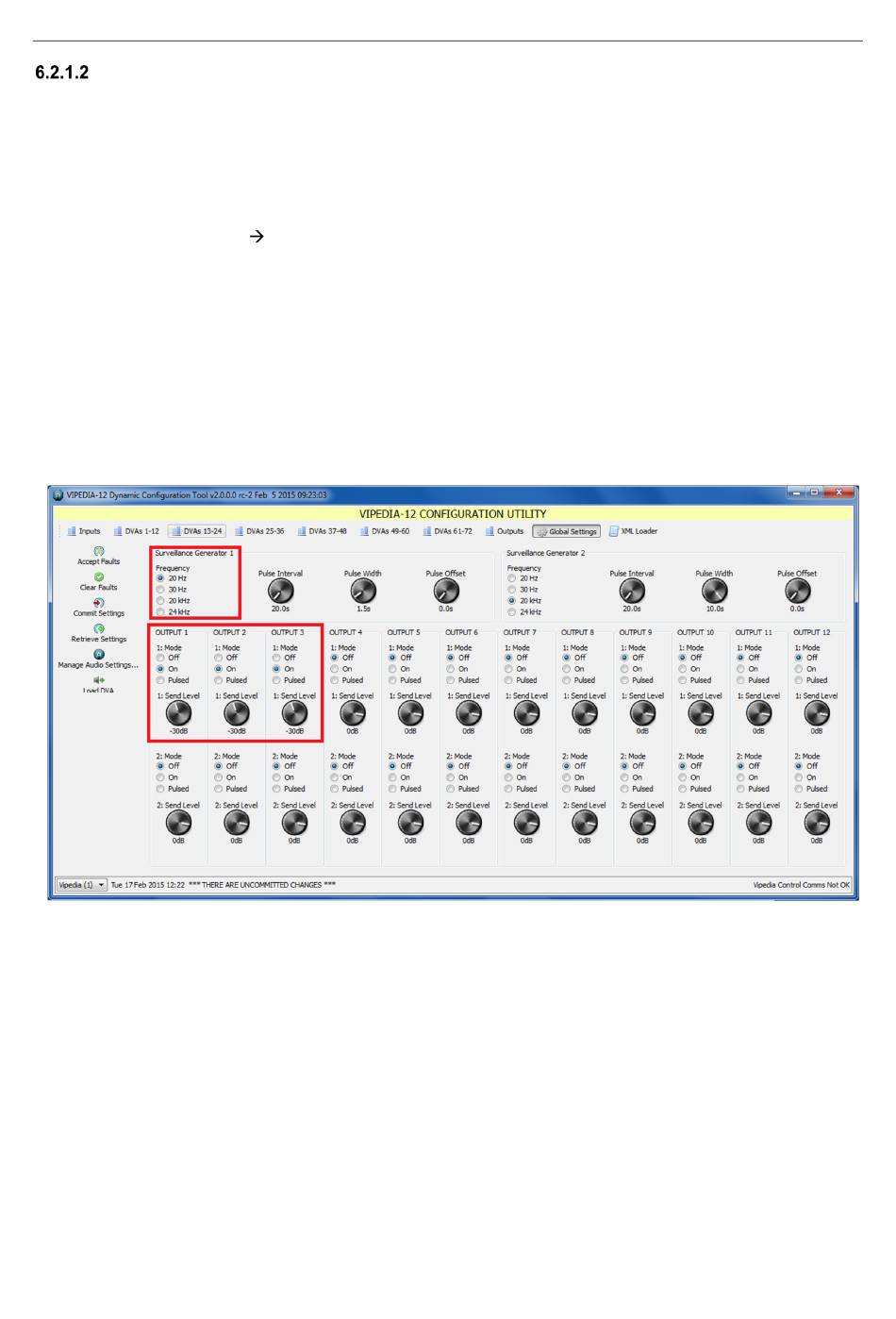

Figure 9 VIPEDIA-12 Dynamic Configuration Tool – 20Hz surveillance tone commissioning
