PAVA System Configuration

V2000 and VIPEDIA-12 configuration is split into two sections. Static and Dynamic.
Static:
It is configured using the System Configuration Tool. Figure 3 shows the tool open on a
•
V2000 configuration page as example.
Contains the static configuration for the whole ASL PAVA system (including V2000s), and is
•
unlikely to change frequently.
It is saved to a file (.xml format) and uploaded to all V2000's and VIPEDIA-12's.
•
Defines which V2000 features will be available for dynamic configuration.
•
Dynamic:
The dynamic VIPEDIA-12 settings are configured using the VIPEDIA-12 Dynamic
•
Configuration Tool.
The dynamic V2000 settings are configured using the V2000 Dynamic Configuration Tool.
•
Both tools are launched from the System Configuration Tool or as standalone.
•
The dynamic configuration contains the settings for audio and system surveillance that are likely
•
to be accessed and adjusted quite frequently, especially during the commissioning stage.
The settings are applied live so that changes can be monitored and fine-tuned.
•

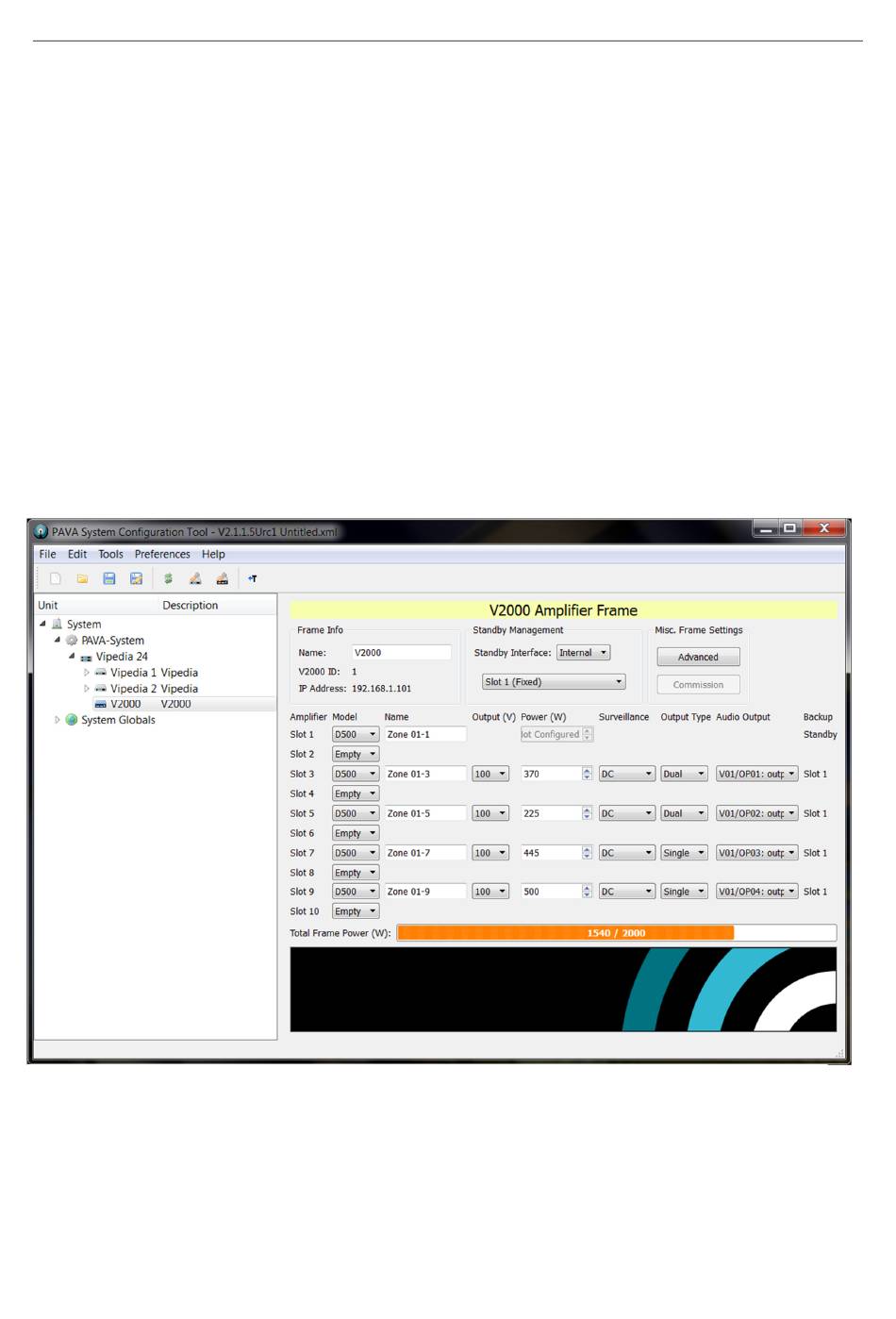

System Configuration Tool – Example, with V2000 configuration
Figure 3
