6.2 PAVA Dynamic Configuration

6.2.1 VIPEDIA-12 Dynamic Commissioning

Two areas of the VIPEDIA-12 dynamic configuration need to be commissioned for V2000 compatibility:
Audio outputs.
•
Surveillance Generators.
•
The VIPEDIA-12 dynamic commissioning is done using the VIPEDIA-12 Dynamic Commissioning Tool.
The tool is launched from within the System Configuration Tool or as standalone.

VIPEDIA-12 Audio Output Commissioning

The V2000 requires VIPEDIA-12 output Limiter and output Clipper to be enabled on all V2000 connected
outputs. This is to ensure VIPEDIA-12 output audio does not overload the V2000 inputs.
To set the VIPEDIA-12 output limiter and clipper:
a) Launch the System Configuration Tool.
b) Open the system configuration file (.xml).
c) Go to 'Preferences'
d) Click the 'Launch Dynamic Configuration Tool' icon in the toolbar.
e) The VIPEDIA-12 Dynamic Configuration Tool will launch after a few seconds.
f) Select the VIPEDIA-12 to be commissioned using the drop down box in the bottom left of the tool.
g) Select the 'Outputs' tab.
h) The spanner icon at the bottom of each output opens the output properties window.
i) Enable the limiter using the Limiter checkbox.
j) Apply these settings:
Threshold: 0dB, Attack: 1ms, Hold: 100ms, Release: 250ms, Make Up Gain: 0.0dB.
k) Enable the clipper using the Clipper checkbox.
l) Set Level to +2.0dB.
m) Click the 'OK' button.
n) Repeat for all VIPEDIA-12 outputs in the PAVA system that have connection to V2000.
o) Once all VIPEDIA-12's have been commissioned, click 'Commit Settings'.
p) This will permanently save the commissioned values into all Vipedias.

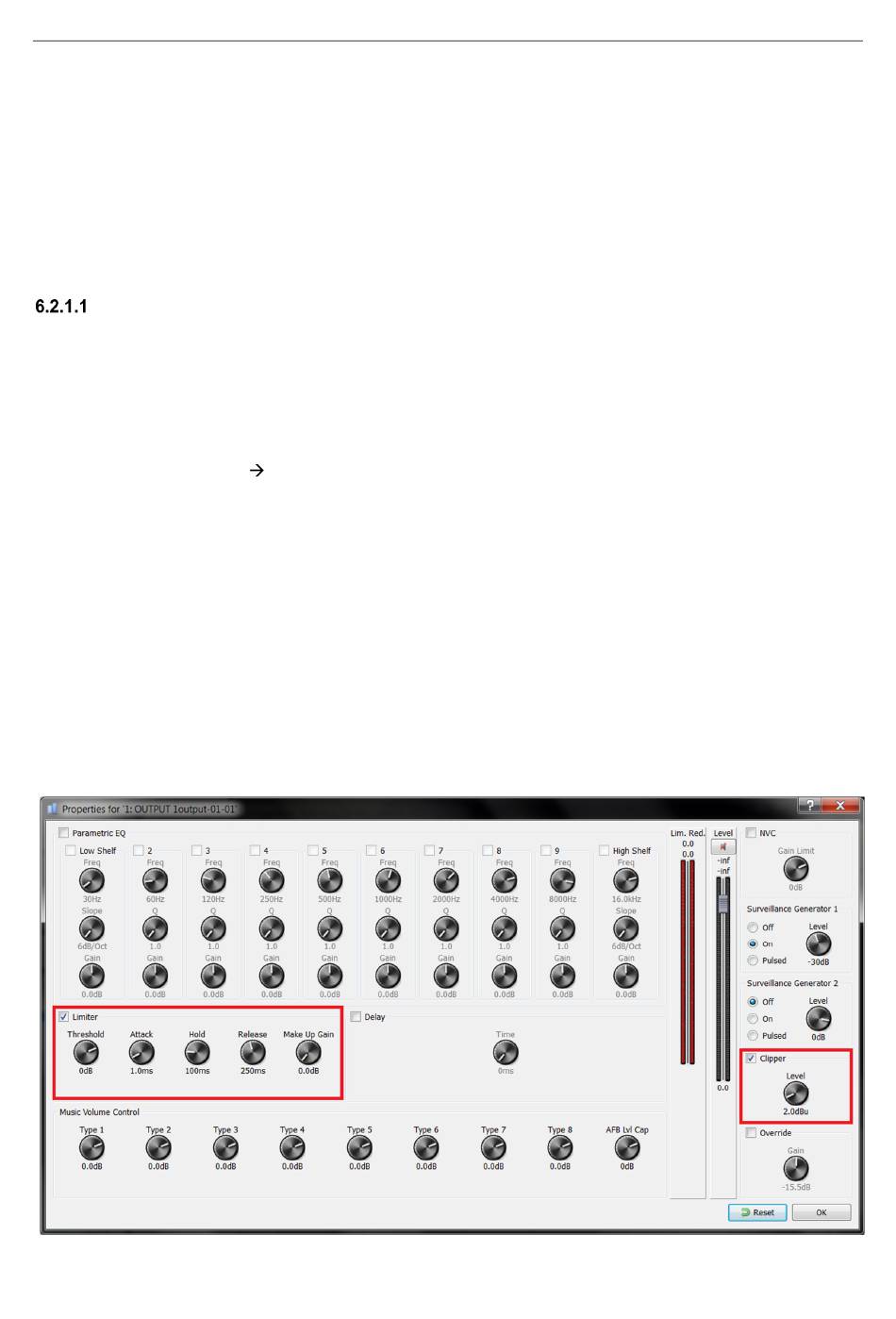

Figure 8 VIPEDIA-12 Dynamic Configuration Tool – Output Limiter and Clipper
