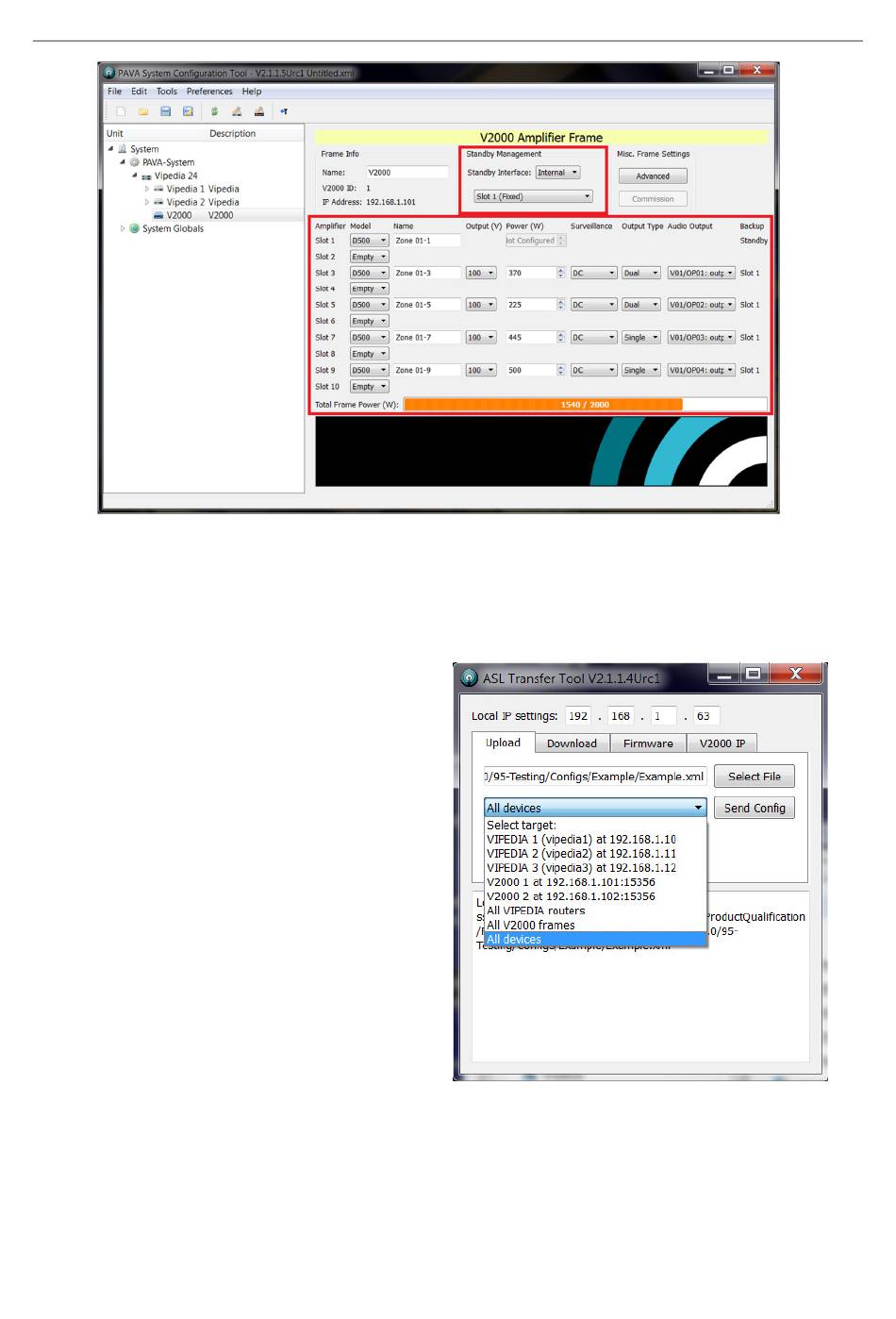

Figure 6 System Configuration tool - V2000 amplifier slots and standby interface configuration

6.1.3 System Static Configuration Upload

The ASL Transfer Tool is used to upload the static configuration to all VIPEDIA-12 and V2000 units.
To upload the system configuration file to PAVA
devices:
a) Launch the ASL Transfer Tool.
Note: The PC IP address at the top should
be automatically set. If not correct, check the
System Configuration Tool settings.
b) Select the Upload tab.
c) Click 'Select File', then navigate to and
select the correct PAVA system
configuration file (.xml).
d) The drop down box will now display all
PAVA units in the system configuration.
e) Select 'All devices'.
f) Alternatively the configuration can be sent to
just VIPEDIA-12's, V2000's, or individual
units.
g) Click 'Send Config'.
h) The tool will now upload to selected PAVA
units.
i) Upload will be successful when the following
text is displayed:
"Config upload successful: Config
transferred successfully.
Finished transfer to ###"
(### being the device(s) selected)
NOTE: It is now safe to use the BATTERY power switch on all V2000's using a battery backup system.
V2000 User's Manual
Figure 7
U-0623-0383.docx – Issue: 05 complete, approved – 17/12/15
Page 17 of 36
ASL File Transfer Tool – Upload
Configuration
