- Page 1 04/18 WIRELESS OUTDOOR DUAL TECHNOLOGY CURTAIN DETECTOR AOCD-250 Firmware version 1.00 SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND tel. +48 58 320 94 00 www.satel.eu...
- Page 2 Changes, modifications or repairs not authorized by the manufacturer shall void your rights under the warranty. SATEL's goal is to continually upgrade the quality of its products, which may result in some changes of their technical specifications and firmware. The current information on the introduced modifications is available on our website.

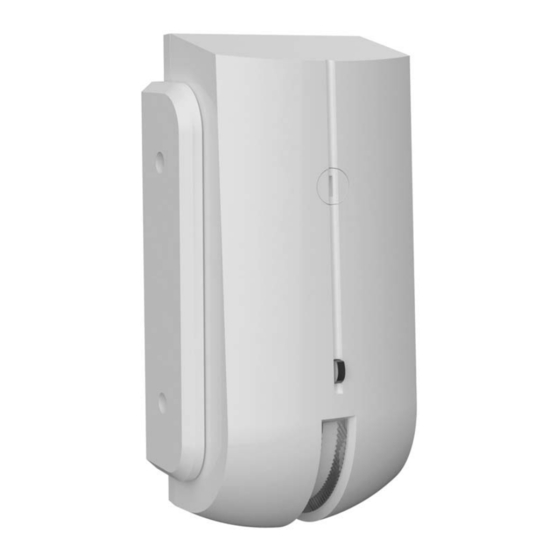

- Page 3 The AOCD-250 detector makes it possible to detect motion at the moment of crossing the perimeter of protected area. It is designed for perimeter protection. The detector is designed for use as part of the ABAX two-way wireless system. This manual applies to the detector with firmware version 1.00, which is supported by:...
- Page 4 AOCD-250 SATEL Supervision of detector signal path In case of signal path failure, the detector sends information about alarm during each transmission (constant violation). Battery status control When the battery voltage is below 2.75 V, information about low battery is sent during each transmission.
- Page 5 SATEL AOCD-250 The used batteries must not be discarded, but should be disposed of in accordance with the existing rules for environment protection. Install the detector at the recommended height (Fig. 2-I). Install the detector at a roofed location or under a protective roof, where streams of water from rain or melting snow will not run down the enclosure.
- Page 6 A on the figures 5 & 6, use the smaller screw. Fig. 7 shows the possible ways of detector installation (the detector can also be mounted on the adjustable brackets, BRACKET A and BRACKET B, offered by SATEL). If the detector is to meet the requirements of EN50131 standard for Grade 3, it must not be mounted on any bracket.
- Page 7 SATEL AOCD-250 13. Start the test mode and check that the motion within the detector area will light up the LED. Fig. 8 shows the maximum coverage area. 14. End the test mode. 2,4 m 14 m 5. Specifications Operating frequency band ..............868.0 MHz ÷ 868.6 MHz Radio communication range (in open area) ............
