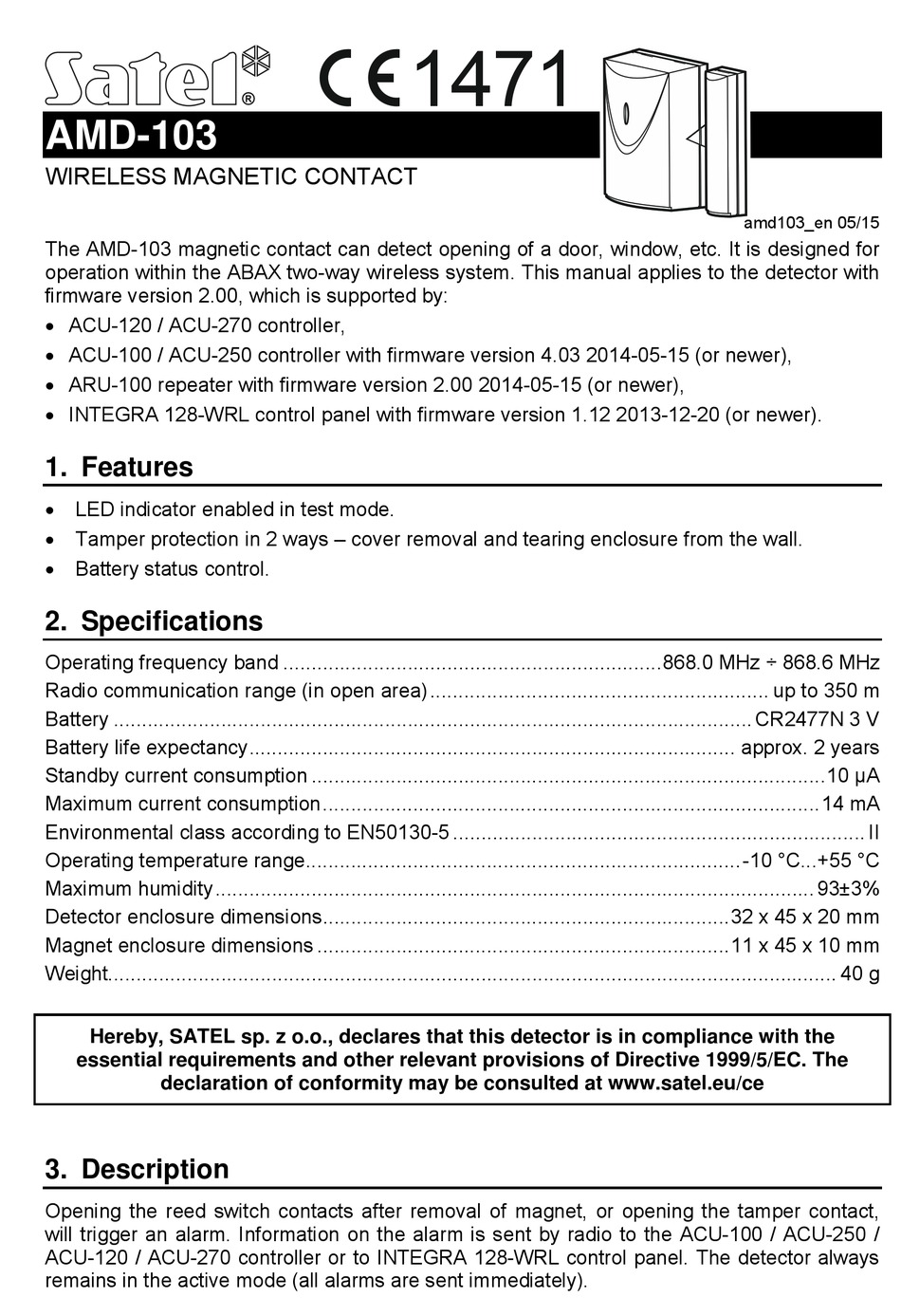

Satel AMD-103 Manual

1471
AMD-103
WIRELESS MAGNETIC CONTACT
amd103_en 05/15

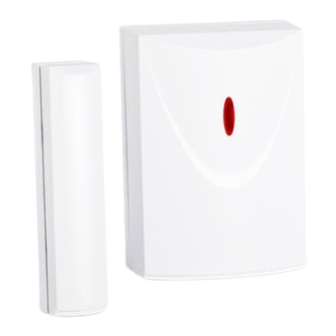

The AMD-103 magnetic contact can detect opening of a door, window, etc. It is designed for
operation within the ABAX two-way wireless system. This manual applies to the detector with
firmware version 2.00, which is supported by:
 ACU-120 / ACU-270 controller,
 ACU-100 / ACU-250 controller with firmware version 4.03 2014-05-15 (or newer),
 ARU-100 repeater with firmware version 2.00 2014-05-15 (or newer),
 INTEGRA 128-WRL control panel with firmware version 1.12 2013-12-20 (or newer).

1. Features

 LED indicator enabled in test mode.
 Tamper protection in 2 ways – cover removal and tearing enclosure from the wall.
 Battery status control.

2. Specifications

Operating frequency band ...................................................................868.0 MHz ÷ 868.6 MHz
Radio communication range (in open area) ............................................................ up to 350 m
Battery ................................................................................................................. CR2477N 3 V
Battery life expectancy...................................................................................... approx. 2 years
Standby current consumption ...........................................................................................10 µA
Maximum current consumption........................................................................................14 mA
Environmental class according to EN50130-5 ......................................................................... II
Operating temperature range.............................................................................-10 °C...+55 °C
Maximum humidity.......................................................................................................... 93±3%
Detector enclosure dimensions........................................................................32 x 45 x 20 mm
Magnet enclosure dimensions .........................................................................11 x 45 x 10 mm
Weight................................................................................................................................. 40 g
Hereby, SATEL sp. z o.o., declares that this detector is in compliance with the
essential requirements and other relevant provisions of Directive 1999/5/EC. The
declaration of conformity may be consulted at www.satel.eu/ce

3. Description

Opening the reed switch contacts after removal of magnet, or opening the tamper contact,
will trigger an alarm. Information on the alarm is sent by radio to the ACU-100 / ACU-250 /
ACU-120 / ACU-270 controller or to INTEGRA 128-WRL control panel. The detector always
remains in the active mode (all alarms are sent immediately).
