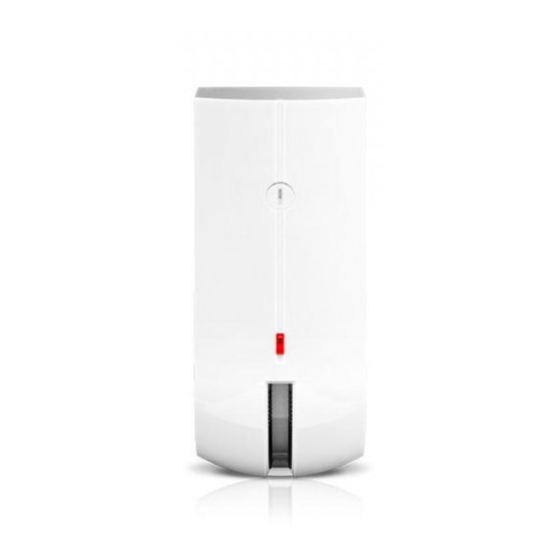

Abax 2 wireless outdoor dual technology curtain detector
Hide thumbs Also See for AOCD-260:
1
2
3
4
5
6
7
8
9

Advertisement

Quick Links

Download this manual
AOCD-260
Wireless outdoor dual technology curtain detector
Firmware version 1.00
aocd-260_en 02/19
SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND
tel. +48 58 320 94 00
www.satel.eu

Advertisement

loading
Need help?

Need help?

Do you have a question about the AOCD-260 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Satel AOCD-260

Summary of Contents for Satel AOCD-260

  • Page 1 AOCD-260 Wireless outdoor dual technology curtain detector Firmware version 1.00 aocd-260_en 02/19 SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND tel. +48 58 320 94 00 www.satel.eu...
  • Page 2 The rating plate of the device is located on the enclosure base. SATEL aims to continually improve the quality of its products, which may result in changes in their technical specifications and software. Current information about the changes being introduced is available on our website.
  • Page 3 The AOCD-260 detector can detect motion at the moment of crossing the perimeter of protected area. It can be a component of perimeter protection. It is designed for operation within the ABAX 2 / ABAX two-way wireless system. This manual applies to the detector with firmware version 1.00, which is supported by:...
  • Page 4 AOCD-260 SATEL Alarms The detector will report alarm:  after detecting a motion in the protected area by both sensors within a time period shorter than 5 seconds (this alarm can only be reported in the active mode – see “Operating modes”),...

  • Page 5: Selecting A Mounting Location

    SATEL AOCD-260 In response to the battery voltage drop below 2.75 V, sensitivity of sensors in the detector is automatically lowered to eliminate false alarms. Electronics board Do not touch the pyroelectric sensor, so as not to soil it. CR123A lithium battery.

  • Page 6: Installation

    AOCD-260 SATEL 4 Installation There is a danger of battery explosion when using a different battery than recommended by the manufacturer, or handling the battery improperly. Be particularly careful during installation and replacement of the battery. The manufacturer is not liable for the consequences of incorrect installation of the battery.
  • Page 7 8, use the smaller screw. Fig. 9 shows the possible ways of detector installation (the detector can also be mounted on the adjustable brackets, BRACKET A and BRACKET B, offered by SATEL). If the detector is to comply with the EN50131-2-4 requirements for Grade 2, do not install it on the mounting bracket (if installed on the bracket, the detector will comply with the standard requirements for Grade 1).
  • Page 8 AOCD-260 SATEL 12. Configure the detector settings (sensitivity of PIR sensor, sensitivity of microwave sensor, etc. – see the ABAX 2 / ABAX controller manual / the INTEGRA 128-WRL control panel manual). 13. Start the test mode (see the ABAX 2 / ABAX controller manual / the INTEGRA 128-WRL control panel manual).

  • Page 9: Specifications

    SATEL AOCD-260 5 Specifications Operating frequency band ..............868.0 MHz ÷ 868.6 MHz Radio communication range (in open area) ABAX 2 ACU-220 ....................up to 2000 m ACU-280 ....................up to 1600 m ABAX......................up to 500 m Battery ........................CR123A 3 V Battery life expectancy..................
