Satel APMD-250 Manual

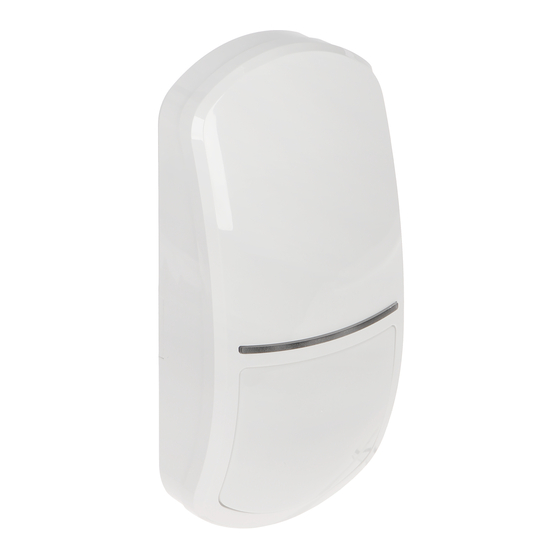

Wireless dual technology motion detector
Hide thumbs
Also See for APMD-250:
- Quick installation manual (2 pages) ,
- Quick installation manual (2 pages)
Related Manuals for Satel APMD-250
Summary of Contents for Satel APMD-250
- Page 1 APMD-250 Wireless dual technology motion detector Firmware version 1.00 apmd-250_en 01/19 SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND tel. +48 58 320 94 00 www.satel.eu...
- Page 2 The rating plate of the device is located on the enclosure base. SATEL aims to continually improve the quality of its products, which may result in changes in their technical specifications and software. Current information about the changes being introduced is available on our website.
-
Page 3: Specifications
The APMD-250 detector can detect motion in a protected area. It is designed for operation within the ABAX 2 / ABAX two-way wireless system. This manual applies to the detector with firmware version 1.00 (or newer), which is supported by: ... - Page 4 APMD-250 SATEL Battery life expectancy ..................up to 2 years Temperature measurement range ...............-10°C...+55°C Temperature measurement accuracy ................±1°C Standby current consumption ..................75 µA Maximum current consumption ..................13 mA Microwave frequency ....................24.125 GHz Detectable speed ...................... 0.3...3 m/s Warm-up period ........................40 s Recommended installation height ................
- Page 5 SATEL APMD-250 the battery life can be increased as much as fourfold. The option is only available in the ABAX 2 system. The detector with “ECO” option enabled meets requirements of the EN50131-2-4 standard for Grade 2. Test mode The test mode makes the detector testing easier, because the LED indicators are enabled.
-
Page 6: Installation
APMD-250 SATEL 4 Installation There is a danger of battery explosion when using a different battery than recommended by the manufacturer, or handling the battery improperly. Be particularly careful during installation and replacement of the battery. The manufacturer is not liable for the consequences of incorrect installation of the battery. - Page 7 SATEL APMD-250 6. Put the detector at the place of its future installation. 7. Check the level of signal received from the detector by the ABAX 2 / ABAX controller or the INTEGRA 128-WRL control panel. If the signal level is lower than 40%, select another place for installation.
- Page 8 2.4 m. Fig. 7 shows the range of APMD-250 detector with the wide-angle (WD) Fresnel lens, which is installed in the detector as standard one. You can change the detector enclosure cover to install another lens instead.
- Page 9 SATEL APMD-250...
- Page 10 APMD-250 SATEL...
