ASD-250
Wireless smoke detector
Firmware version 1.00
asd-250_en 10/19
SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND
tel. +48 58 320 94 00
www.satel.eu

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ASD-250 and is the answer not in the manual?

Questions and answers

Related Manuals for Satel ASD-250

Summary of Contents for Satel ASD-250

  • Page 1 ASD-250 Wireless smoke detector Firmware version 1.00 asd-250_en 10/19 SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND tel. +48 58 320 94 00 www.satel.eu...
  • Page 2 The rating plate of the device is located inside the enclosure. SATEL aims to continually improve the quality of its products, which may result in changes in their technical specifications and software. Current information about the changes being introduced is available on our website.

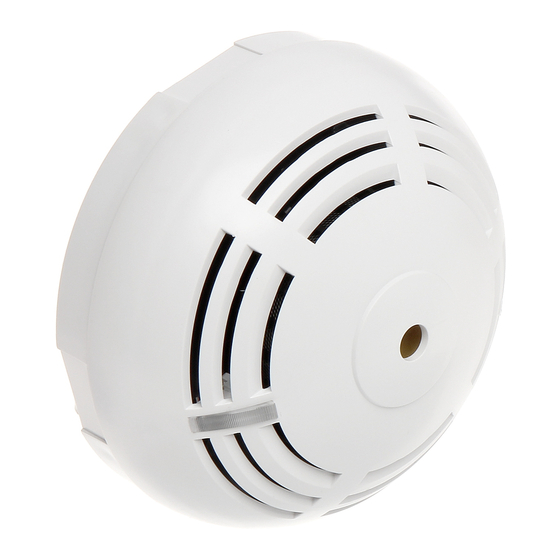

  • Page 3 The ASD-250 detector can detect the early stages of fire development when there is some visible smoke. It can operate as a stand-alone device or within the ABAX 2 / ABAX two-way wireless system. This manual applies to the detector with firmware version 1.00, which is supported by: ...
  • Page 4 ASD-250 SATEL Operating modes You can set the operating mode using the jumper located on the printed circuit board (Fig. 2):  jumper removed – stand-alone mode.  jumper installed – working in ABAX 2 / ABAX system. The detector is operating similarly as in the stand-alone mode, but it additionally: –...

  • Page 5: Selecting A Mounting Location

    SATEL ASD-250 / ABAX system, the low battery info is sent during each transmission to the controller / control panel. Working in ABAX 2 / ABAX system Radio communication The detector connects to the controller / control panel at regular time intervals to provide information about its state (periodical communication).

  • Page 6: Installation

    ASD-250 SATEL Legend for Figures 3 and 4: living room. room. hall, lobby, etc. kitchen. basement. basic location for detector installation. additional location for detector installation. 4. Installation The detector enclosure can not be closed without the battery inserted. Do not install the battery if the sounder is disconnected.

  • Page 7: Maintenance

    ABAX 2 / ABAX system – 2 short flashes during periodical communication with controller / control panel; stand-alone mode – 2 short flashes every 30 seconds). 1. Start the service mode in the control panel (if the controller is connected to a SATEL alarm control panel).
  • Page 8 ASD-250 SATEL 2. Remove the screw fastening the cover (Fig. 6). 3. Turn the cover counter-clockwise (Fig. 7) and remove it (Fig. 8). 4. Remove the battery. 5. Disconnect the plug connecting the sounder wires with the electronics board (Fig. 9).

  • Page 9: Battery Replacement

    When the detector indicates low battery (3 short flashes of the LED and 3 short beeps every 30 seconds), the battery must be replaced. 1. Start the service mode in the control panel (if the controller is connected to a SATEL alarm control panel).
  • Page 10 ASD-250 SATEL The ASD-250 wireless smoke detector conforms to the essential requirements of the EU Regulations and Directives: CPR 305/2011 Regulation of the European Parliament and of the Council of 9 March 2011 laying down harmonized conditions for the marketing of construction products and repealing the Council Directive 89/106/EEC on construction products;...
