Step 11
Insert the valve lifter arm through the slotted opening
in the draw valve and align the other end with the cross
holes of the freezer door.
Step 12
Insert the draw valve handle through the opposite
cross hole and into the opening of the valve lifter arm.
Hint: The draw valve handle can be assembled at
varied vertical positions. Choose an angle which is
comfortable for you. The draw valve must be raised
completely when the draw valve handle is down.

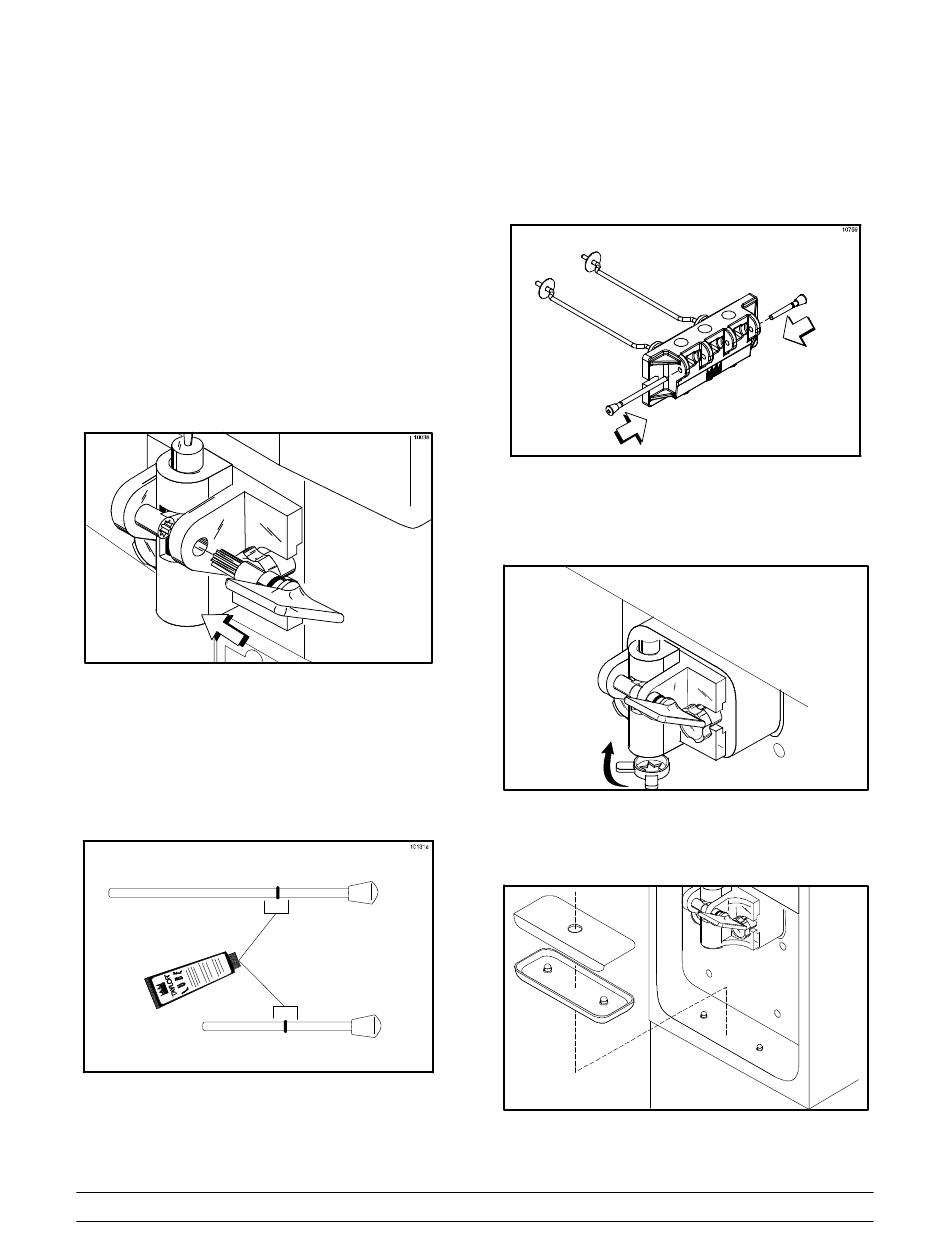

Figure 24
Note: For Models 162/168, slide the o- ring onto each
pivot pin and lubricate with Taylor Lube.
Figure 25
Models 150, 152, 162, 168
Note: Models 162/168 have three draw handles.
Slide the tip of the draw handle into the slot of the draw
valve, starting from the right. Slide the short pivot pin
through the far right draw handle. Slide the long pivot
pin through the far left and middle draw handles.
Step 13
Snap the design cap(s) over the bottom of the freezer
door spout(s).
Step 14
Install the front drip tray and splash shield under the
freezer door.
21
Figure 26
Figure 27
Figure 28
150105
Operating Procedures
