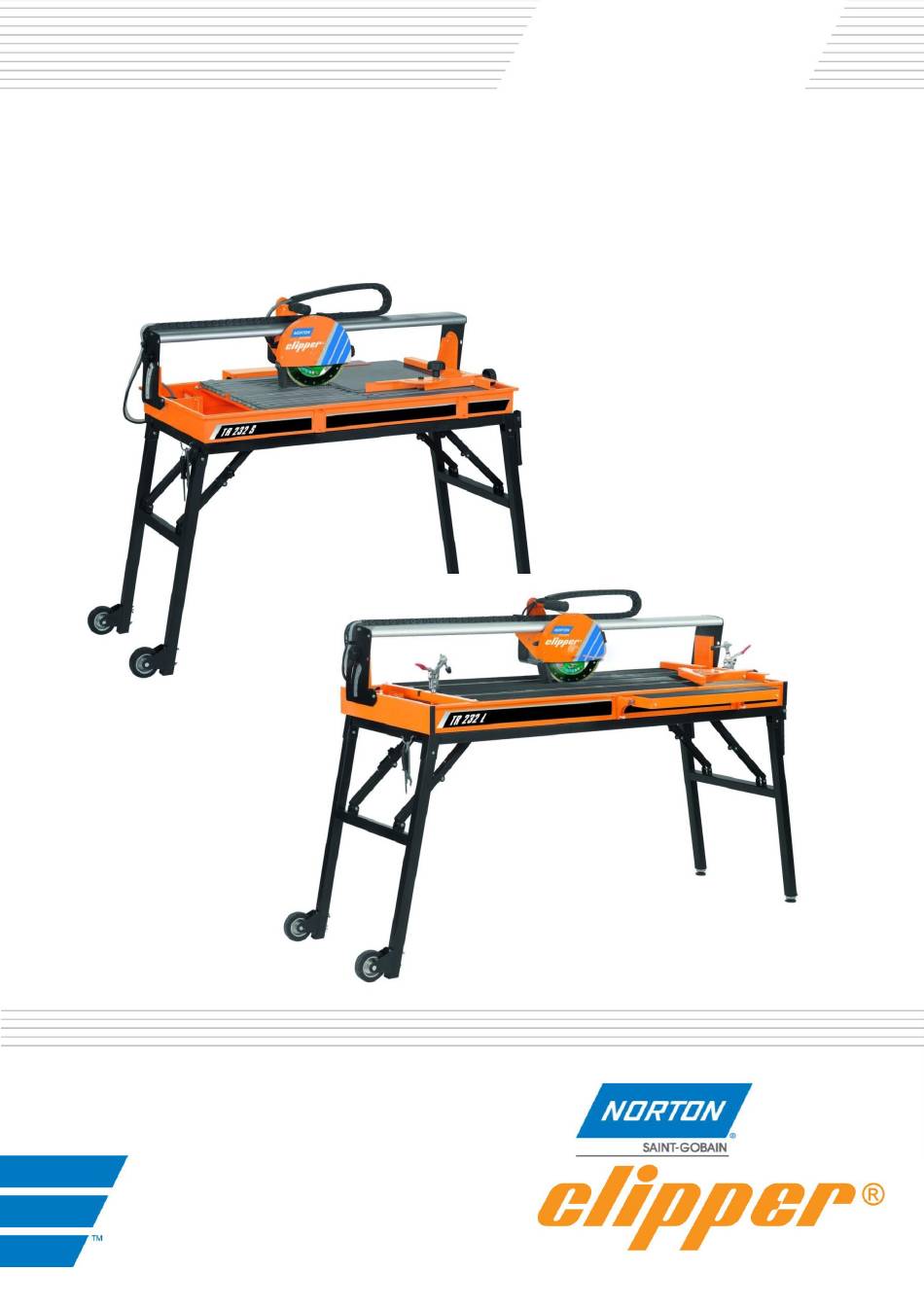

- Page 1 TR 232 S&L OPERATING INSTRUCTIONS Translation of the original instructions...
- Page 2 VERS. 2016.04.29 TR 232_MAN_EN...
- Page 3 VERS. 2016.04.29 TR 232_MAN_EN Declaration of conformity The undersigned manufacturer: SAINT - GOBAIN ABRASIVES S.A. 190, BD J.F. KENNEDY L- 4930 BASCHARAGE Declares that this product: Tile Saw (code): TR 232 S 230 V (70184601110) TR 232 S 230 V UK (70184601111) TR 232 S 115 V (70184601109) TR 232 L 230 V (70184601103) TR 232 L 230 V UK (70184601105)
- Page 4 VERS. 2016.04.29 TR 232_MAN_EN...
-
Page 5: Table Of Contents
VERS. 2016.04.29 TR 232_MAN_EN TR 232 S&L OPERATING INSTRUCTIONS 1 BASIC SAFETY INSTRUCTIONS 1.1 Symbols 1.2 Machine plate 1.3 Safety instructions for particular operating phases 2 MACHINE DESCRIPTION 2.1 Short description 2.2 Purpose of use 2.3 Layout 2.4 Technical Data 2.5 Statement regarding the vibration emission 2.6 Statement regarding noise emission 3 ASSEMBLY AND COMMISSIONING... -
Page 6: Basic Safety Instructions
VERS. 2016.04.29 TR 232_MAN_EN 1 BASIC SAFETY INSTRUCTIONS The TR 232 is exclusively designed for the cutting of tiles with NORTON diamond disks mainly on construction sites. Uses other than the manufacturer's instructions shall be considered as contravening the regulations. -
Page 7: Machine Plate
Always cut with the blade guard in position. Only fit NORTON diamond blades with continuous rim to the machine! The use of other tools can damage the machine! Read the blades’ specifications carefully to choose the correct tool for your application. - Page 8 VERS. 2016.04.29 TR 232_MAN_EN Electrical powered machine Always turn off the TR 232 and separate it from the main source of electricity before any work on the machine is done. Make all electrical connections securely to eliminate contact of live wires with spray water or dampness ...
-
Page 9: Machine Description

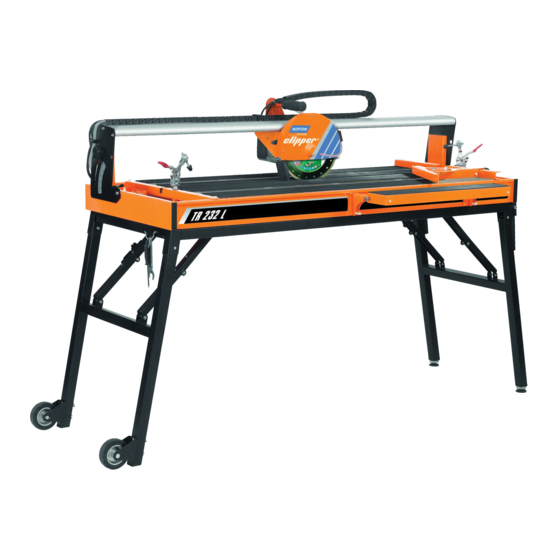

The TR 232 Saw is designed for durability and high performance for onsite wet cutting operations of a wide range of tiles. As with all other NORTON CLIPPER products, the operator will immediately appreciate the attention given to detail and quality of materials used in construction. The machine and its component parts are assembled to high standards assuring long life and minimum maintenance. - Page 10 VERS. 2016.04.29 TR 232_MAN_EN The frame is made of aluminium and steel to ensure robustness and durability. The folding stand with 4 legs ensures stability while cutting. Cutting head (2) Aluminium console guided with precision. This console supports the electric motor, the guides and the blade guard.
-
Page 11: Technical Data
VERS. 2016.04.29 TR 232_MAN_EN 2.4 Technical Data TR 232 L TR 232 S 70184601103 70184601105 70184601110 70184601111 Item number (UK) (UK) 1,1 kW Electric motor 230V Supply voltage 230V, 50Hz Rating protection IP54 Blade diameter 230 mm 25,4 mm Bore Rotation speed of the blade 2950 min 20 mm... -
Page 12: Statement Regarding The Vibration Emission
VERS. 2016.04.29 TR 232_MAN_EN 2.5 Statement regarding the vibration emission Declared value of vibration emission following EN 12096. Machine Measured value of vibration Uncertainty K Tool used Model / code emission at m/s Model / code TR232 S: 70184601109 70184601110 70184601111 <2.5 Clipper Super Gres XT... -
Page 13: Statement Regarding Noise Emission
VERS. 2016.04.29 TR 232_MAN_EN 2.6 Statement regarding noise emission Declared value of noise emission following EN ISO 11201 and NF EN ISO 3744. Machine Sound Uncertainty K Sound power Uncertainty K Model / code Pressure level (Sound level (Sound power level Pressure level EN ISO 11201 NF EN ISO 3744... -
Page 14: Assembly And Commissioning
VERS. 2016.04.29 TR 232_MAN_EN 3 ASSEMBLY AND COMMISSIONING The TR 232 is delivered fully equipped. It is ready for operation after assembly of the diamond blade and after connection to the appropriate power supply. 3.1 Assembly of the legs Lift up one side of the saw and unfold the legs without wheels. -
Page 15: Cutting Head
VERS. 2016.04.29 TR 232_MAN_EN 3.3 Cutting head Fix the handle of the cutting head using two screws. To be able to use your machine, you must release the head of cut. For that unscrew the knurled button which maintains the head on the right amount during transport. 3.4 Assembly of the cooling system ... -
Page 16: Transport Wheels
VERS. 2016.04.29 TR 232_MAN_EN 3.5 Transport wheels To be able to move your machine easily, assemble the wheels to the bottom of the feet located on the side opposite of the handles, using the screws butterflies. 3.6 Longitudinal guide assembly Insert 2 threaded and pined shafts Rotate both shafts by 90°... -
Page 17: Side Extension Assembly
VERS. 2016.04.29 TR 232_MAN_EN 3.7 Side extension assembly Insert both pined shafts Rotate both shafts by 90° to lock side extension 3.8 Installation of the handle for the cut in angle... -
Page 18: Installation Of The Material Holding System (Tr 232 L Only)
3.10 Tool assembly Only NORTON blades with a diameter of 230 mm can be used with the TR 232. All tools used must be selected with regard to their maximum permitted cutting speed for the machine’s maximum permitted rotation speed. Before mounting a new blade into the machine, switch off the machine and isolate it from the main source of electricity. -
Page 19: Electrical Connections
VERS. 2016.04.29 TR 232_MAN_EN 3.11 Electrical connections Check that: The voltage/phase supply corresponds to the information indicated on the motor plate. Available power supply must have ground connection in conformity with safety regulations. The connecting cables should have at least a 2.5mm -section per phase. -
Page 20: Transport And Storing
VERS. 2016.04.29 TR 232_MAN_EN 4 TRANSPORT AND STORING Please follow the following instructions to transport and store the TR232 in a safe way. 4.1 Securing for transport Before transporting the machine, always remove the blade and empty the water pan. Secure the cutting head on the rail by using the knob. - Page 21 VERS. 2016.04.29 TR 232_MAN_EN If the machine is not going to be used for a long period, please take the following measures: Completely clean the machine Empty the water system Take the water pump out of the water tray, and clean it thoroughly. The storage site must be clean, dry and at a constant temperature.
-
Page 22: Operating The Machine
Make sure the water pan contains enough water. Use only set with diamonds discs NORTON CLIPPER. The use of other tools can involve the damage of the machine. Do not force on the engine. This machine is not designed for a continuous use. -
Page 23: Cutting With An Angle
VERS. 2016.04.29 TR 232_MAN_EN 5.3 Cutting with an angle You can cut from 0º to 45º by tilting the head rail. For this purpose: Loosen the two knobs maintaining the head rail to tilt the head to the desired angle. ... -
Page 24: Maintenance And Servicing
VERS. 2016.04.29 TR 232_MAN_EN 6 MAINTENANCE AND SERVICING To ensure a long-term quality from the cutting with the TR 232, please follow the maintenance plan below: Whole machine Visual control (general aspect, water tightness) Clean Flange blade fixing Clean devices Motor cooling fans Clean Water pan... -
Page 25: Faults: Causes And Cures
VERS. 2016.04.29 TR 232_MAN_EN FAULTS: CAUSES AND CURES Fault-finding procedures Should any fault occur during the use of the machine, turn it off, and isolate it from the electrical supply. Any works dealing with the electrical system or supply of the machine can only be carried out by a qualified electrician. -
Page 26: Circuit Diagram
VERS. 2016.04.29 TR 232_MAN_EN Circuit diagram... -
Page 27: Customer Service
L- 4930 BASCHARAGE Grand-Duché de Luxembourg. Tel. : 00352-50 401-1 Fax : 00352- 50 16 33 www.construction.norton.eu e-mail:sales.nlx@saint-gobain.com Guarantee can be claimed and technical support obtained from your local distributor where machines, spare parts and consumables can be ordered as well:... - Page 28 VERS. 2016.04.29 TR 232_MAN_EN www.construction.norton.eu Saint-Gobain Abrasives 190, Bd. J. F. Kennedy L-4930 BASCHARAGE LUXEMBOURG Tel: ++352 50401-1 Fax: ++352 501633 e-mail: sales.nlx@saint-gobain.com...
