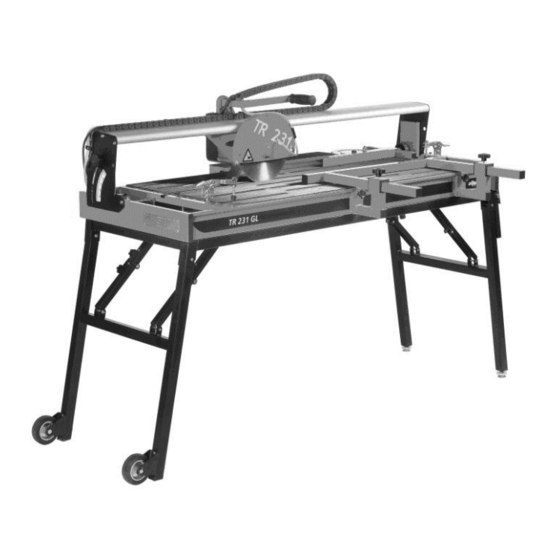

Norton clipper TR 231 GL Operating Instructions Manual
  1. Manuals
  2. Brands
  3. Norton Manuals
  4. Saw
  5. clipper TR 231 GL
  6. Operating instructions manual

Norton clipper TR 231 GL Operating Instructions Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
TR 231 GL
OPERATING INSTRUCTIONS
Translation of the original instructions

Advertisement

Table of Contents
loading

Related Manuals for Norton clipper TR 231 GL

Summary of Contents for Norton clipper TR 231 GL

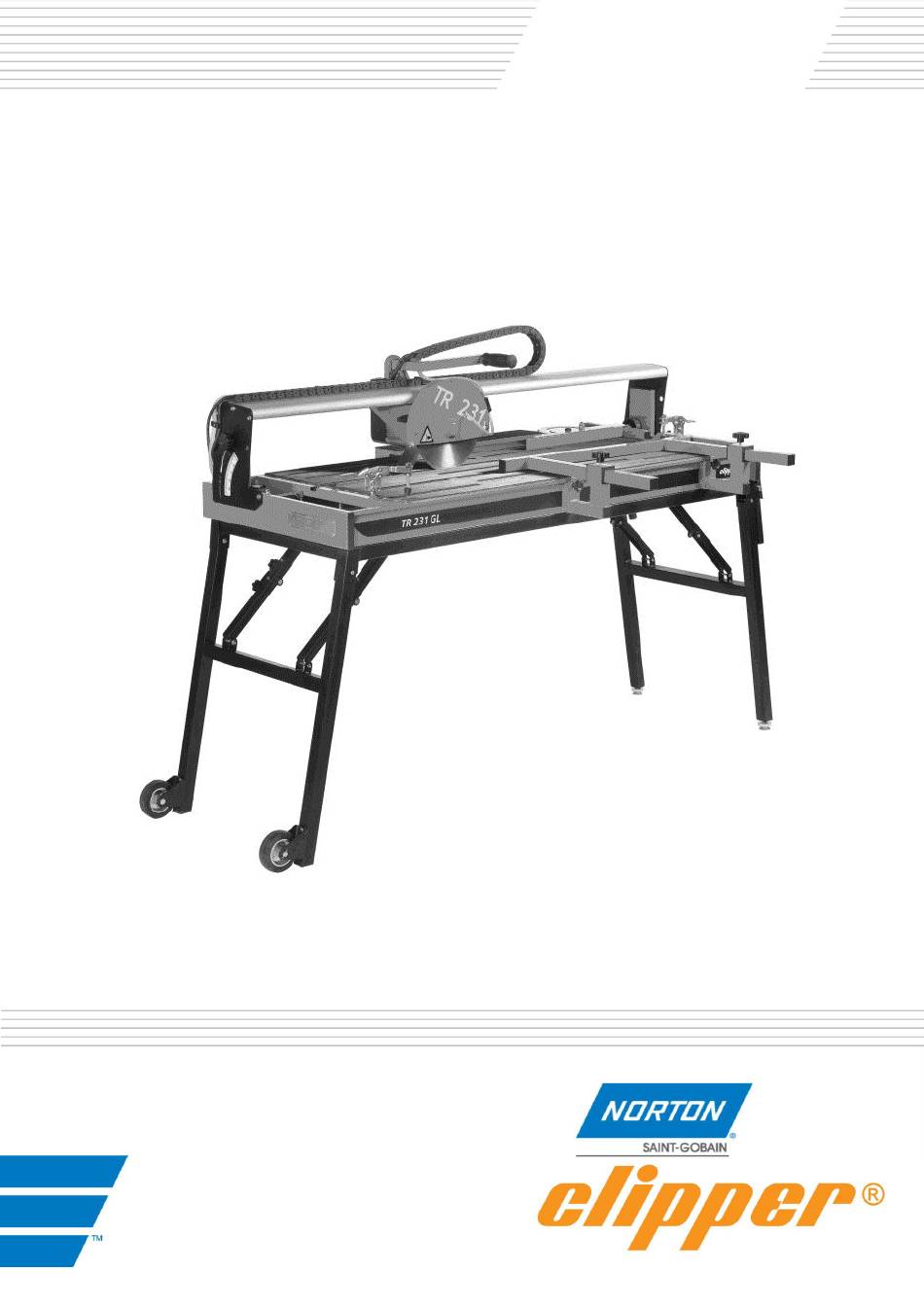

  • Page 1 TR 231 GL OPERATING INSTRUCTIONS Translation of the original instructions...
  • Page 2 VERS. 2015.07.13 TR 231_MAN_EN...
  • Page 3 VERS. 2015.07.13 TR 231_MAN_EN Declaration of conformity The undersigned manufacturer: SAINT - GOBAIN ABRASIVES S.A. 190, BD J.F. KENNEDY L- 4930 BASCHARAGE Declares that this product: TR 231 GL 230V 70184641991 Tile Saw: Code: TR 231 GL 230V UK 70184644108 is in conformity with the following Directives: ...
  • Page 4 VERS. 2015.07.13 TR 231_MAN_EN...

  • Page 5: Table Of Contents

    VERS. 2015.07.13 TR 231_MAN_EN TR 231 GL OPERATING INSTRUCTIONS 1 BASIC SAFETY INSTRUCTIONS 1.1 Symbols 1.2 Machine plate 1.3 Safety instructions for particular operating phases 2 MACHINE DESCRIPTION 2.1 Short description 2.2 Purpose of use 2.3 Layout 2.4 Technical Data 2.5 Statement regarding the vibration emission 2.6 Statement regarding noise emission 3 ASSEMBLY AND COMMISSIONING...

  • Page 6: Basic Safety Instructions

    VERS. 2015.07.13 TR 231_MAN_EN 1 BASIC SAFETY INSTRUCTIONS The TR 231 is exclusively designed for the cutting of tiles with NORTON diamond disks mainly on construction sites. Uses other than the manufacturer's instructions shall be considered as contravening the regulations.

  • Page 7: Machine Plate

     Always cut with the blade guard in position.  Only fit NORTON diamond blades with continuous rim to the machine! The use of other tools can damage the machine!  Read the blades’ specifications carefully to choose the correct tool for your application.

  • Page 8: Machine Description

    The TR 231 Saw is designed for durability and high performance for onsite wet cutting operations of a wide range of tiles. As with all other NORTON CLIPPER products, the operator will immediately appreciate the attention given to detail and quality of materials used in construction. The machine and its component parts are assembled to high standards assuring long life and minimum maintenance.

  • Page 9: Technical Data

    VERS. 2015.07.13 TR 231_MAN_EN 2.4 Technical Data TR 231 GL 70184641991 70184644108 Item number (UK) Electric Motor 1,1 kW Supply voltage 230V, 50Hz Protection rating IP54 Blade Diameter 231 mm Bore 25,4 mm Rotation speed of the blade 2950 min Maximum cutting depth 0°...

  • Page 10: Statement Regarding The Vibration Emission

    VERS. 2015.07.13 TR 231_MAN_EN 2.5 Statement regarding the vibration emission Declared value of vibration emission following EN 12096. Machine Measured value of vibration Uncertainty K Tool used Model / code emission at m/s Model / code TR 231 GL 230V 70184641991 <2.5 Clipper Super Gres XT...

  • Page 11: Statement Regarding Noise Emission

    VERS. 2015.07.13 TR 231_MAN_EN 2.6 Statement regarding noise emission Declared value of noise emission following EN ISO 11201 and NF EN ISO 3744. Machine Sound Uncertainty K Sound power Uncertainty K Model / code Pressure level (Sound level (Sound power level Pressure level EN ISO 11201 NF EN ISO 3744...

  • Page 12: Assembly And Commissioning

    3.3 Tool assembly Only NORTON blades with a diameter of 231 mm can be used with the TR 231. All tools used must be selected with regard to their maximum permitted cutting speed for the machine’s maximum permitted rotation speed. Before mounting a new blade into the machine, switch off the machine and isolate it from the main source of electricity.

  • Page 13: Electrical Connections

    VERS. 2015.07.13 TR 231_MAN_EN 3.4 Electrical connections Check that,  The voltage/phase supply corresponds to the information indicated on the motor plate.  Available power supply must have ground connection in conformity with safety regulations.  The connecting cables should have at least a 2.5mm -section per phase.

  • Page 14: Transport And Storing

    VERS. 2015.07.13 TR 231_MAN_EN 4 TRANSPORT AND STORING 4.1 Securing for transport Before transporting the machine, always remove the blade and empty the water pan. Secure the cutting head on the rail by using the knob. Store the longitudinal cutting guide and the side extension in the pan.

  • Page 15: Long Period Of Inactivity

    VERS. 2015.07.13 TR 231_MAN_EN o Store the elements in the pan, then put the table back in place 4.2 Long period of inactivity If the machine is not going to be used for a long period, please take the following measures: ...

  • Page 16: Operating The Machine

    VERS. 2015.07.13 TR 231_MAN_EN 5 OPERATING THE MACHINE 5.1 Site of work 5.1.1 Siting the machine  Remove from the site anything, which might hinder the working procedure!  Make sure the site is sufficiently well lit!  Observe manufacturer's conditions for connecting to power supplies! ...
  • Page 17 VERS. 2015.07.13 TR 231_MAN_EN Insert both guide supports and lock them with knobs Insert the guide in both supports then lock the knobs  Put in place side extension Insert both pined shafts...

  • Page 18: Cutting With An Angle

    VERS. 2015.07.13 TR 231_MAN_EN Rotate both shafts by 90° to lock side extension 5.3 Cutting with an angle You can cut from 0º to 45º by tilting the head rail. For this purpose:  Loosen the two knobs maintaining the head rail to tilt the head to the desired angle. ...

  • Page 19: Maintenance And Servicing

    VERS. 2015.07.13 TR 231_MAN_EN 6 MAINTENANCE AND SERVICING To ensure a long-term quality from the cutting with the TR 231, please follow the maintenance plan below: Whole machine Visual control (general aspect, water tightness) Clean Flange blade fixing Clean devices Motor cooling fans Clean Water pan...

  • Page 20: Faults: Causes And Cures

    VERS. 2015.07.13 TR 231_MAN_EN FAULTS: CAUSES AND CURES Fault-finding procedures Should any fault occur during the use of the machine, turn it off, and isolate it from the electrical supply. Any works dealing with the electrical system or supply of the machine can only be carried out by a qualified electrician.

  • Page 21: Circuit Diagram

    VERS. 2015.07.13 TR 231_MAN_EN Circuit diagram...

  • Page 22: Customer Service

    Spare parts for the motor can be ordered with the manufacturer of the motor or with their dealer, which is often quicker and cheaper. This machine has been manufactured for Saint-Gobain Abrasives S.A. 190, Bd J.F.Kennedy L- 4930 BASCHARAGE Grand-Duché de Luxembourg. Tel. : 00352-50 401-1 Fax : 00352- 50 16 33 www.construction.norton.eu e-mail:sales.nlx@saint-gobain.com...
  • Page 23 VERS. 2015.07.13 TR 231_MAN_EN Guarantee can be claimed and technical support obtained from your local distributor where machines, spare parts and consumables can be ordered as well:...
  • Page 24 VERS. 2015.07.13 TR 231_MAN_EN www.construction.norton.eu Saint-Gobain Abrasives 190, Bd. J. F. Kennedy L-4930 BASCHARAGE LUXEMBOURG Tel: ++352 50401-1 Fax: ++352 501633 e-mail: sales.nlx@saint-gobain.com...
