Summary of Contents for Norton TT 250 G

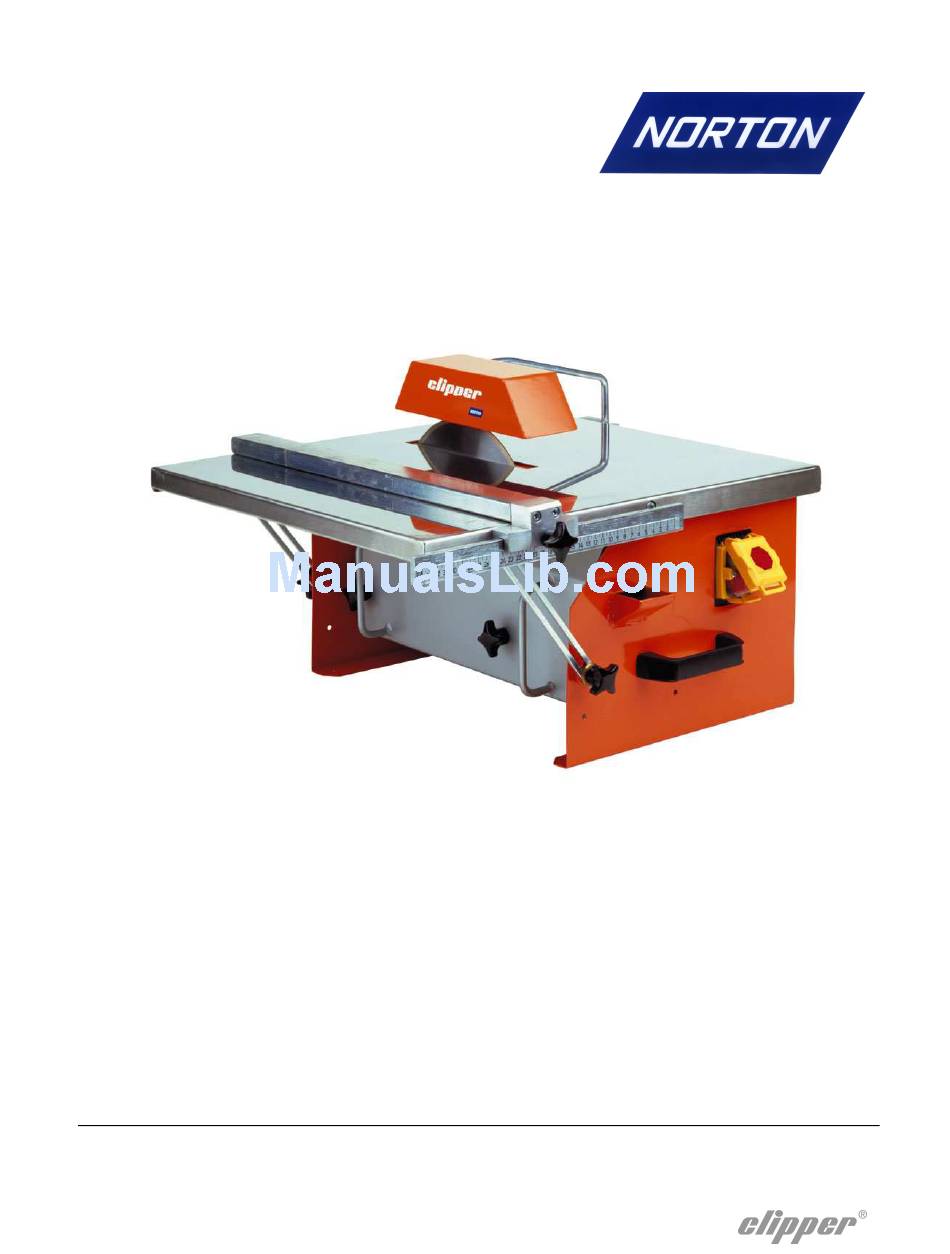

- Page 1 TT 250 G OPERATING INSTRUCTIONS...
-
Page 3: Declaration Of Conformity
L- 4930 BASCHARAGE Declares that this product: Tile saw (Code) TT 250 G 230V (70184625705) TT 250 G 230V UK (70184626965) TT 250 G 115V (70184627049) is in conformity with the following Directives: • European Machinery Directive 2006/42/EC • “LOW VOLTAGE" 2006/95/EC •... -
Page 5: Table Of Contents
TT250G OPERATING INSTRUCTIONS Basic Safety Instructions Symbols Machine plate Safety instructions for particular operating phases Machine description Short description Purpose of use Layout Technical Data Assembly and commissioning Tool assembly Blade guard assembly Guide-a-cut assembly Electrical connections Starting the machine Water cooling system Transport and storing Securing for transport... -
Page 6: Basic Safety Instructions
1 Basic Safety Instructions The TT250G is exclusively designed for the cutting of tiles mainly on construction sites. Uses other than the manufacturer's instructions shall be considered as contravening the regulations. The manufacturer shall not be held responsible for any resulting damage. Any risk shall be borne entirely by the user. -
Page 7: Machine Plate
• Always cut with the blade guard in position. • Only fit NORTON CLIPPER diamond blades with continuous rim to the machine! The use of other tools can damage the machine! • Read the blades’ specifications carefully to choose the correct tool for your application. -
Page 8: Machine Description
2 Machine description Any modification, which could lead to a change in the original characteristics of the machine, may be done only by Saint-Gobain Abrasives who shall confirm that the machine is still in conformity with the safety regulations. 2.1 Short description The TT250G Tile saw is designed for durability and high performance for onsite wet and dry cutting operations of a wide range of tiles. -
Page 9: Technical Data
Blade guard (4) Jig-welded steel construction with 250mm-diameter blade capacity, which offers maximum operator protection and increased visibility of the work piece. The guard is assembled on the frame. Guide-a-cut (5) The guide-a-cut can be adjusted to the desired cutting width. It is locked using two screws. Water tank (6) The blade is cooled by turning inside the water tank (7) located under the working table. -
Page 10: Assembly And Commissioning
3.1 Tool assembly Only NORTON CLIPPER continuous rim blades with a maximum diameter of 250 mm can be used with the TT250G. All tools used must be selected with regard to their maximum permitted cutting speed for the machine’s maximum permitted rotation speed. -
Page 11: Blade Guard Assembly
3.2 Blade guard assembly • The blade guard is not assembled in factory to prevent it from being damaged during transport. • Assemble the blade guard on the support (1) 3.3 Guide-a-cut assembly • Put the guide-a-cut on the table. •... -
Page 12: Transport And Storing
4 Transport and storing 4.1 Securing for transport Before transporting the machine, always remove the blade and empty the water pan. 4.2 Long period of inactivity If the machine is not going to be used for a long period, please take the following measures: •... -
Page 13: Operating The Machine
5 Operating the machine 5.1 Site of work 5.1.1 Siting the machine • Remove from the site anything, which might hinder the working procedure! • Make sure the site is sufficiently well lit! • Observe manufacturer's conditions for connecting to power supplies! •... -
Page 14: Maintenance And Servicing
6 Maintenance and servicing To ensure a long-term quality from the cutting with the TT250G, please follow the maintenance plan below: Whole machine Visual control (general aspect, watertightness) Clean Flange and blade fixing devices Clean Motor cooling fans Clean Water pan Clean Engine housing Clean... -
Page 15: Faults: Causes And Cures
7 Faults: causes and cures Fault-finding procedures Should any fault occur during the use of the machine, turn it off, and isolate it from the electrical supply. Any works dealing with the electrical system or supply of the machine can only be carried out by a qualified electrician. -
Page 16: Circuit Diagram
Circuit diagram... -
Page 17: Customer Service
Spare parts for the motor can be ordered with the manufacturer of the motor or with their dealer, which is often quicker and cheaper. This machine has been manufactured by Saint-Gobain Abrasives S.A. 190, Bd J.F.Kennedy L- 4930 BASCHARAGE Grand-duché de Luxembourg. Tel. : 00352-50401-1 Fax : 00352- 50 16 33 http://www.construction.norton.eu e-mail: sales.nlx@saint-gobain.com... - Page 18 Holland: 0 8000 22 02 70 Tel : 0116 2632 302 e-mail: sales.nlx@saint-gobain.com Fax : 0800 622 385 e-mail : nortondiamonduk@saint-gobain.com Czech Republic Norton Diamantove Nastroje Sro Austria Vinohrdadska 184 Saint-Gobain Abrasives GmbH CS-13000 PRAHA 3 Telsenberggasse, 37 Tel: 0042 0267 13 20 21...
- Page 20 SAINT-GOBAIN ABRASIVES 190, Bd. J. F. Kennedy L-4930 BASCHARAGE LUXEMBOURG Tel.: ++352 50401-1 Fax: ++352 501633 e-mail: sales.nlx@saint-gobain.com www.construction.norton.eu 08.12.2008...
